Trans. Nonferrous Met. Soc. China 30(2020) 2879-2890

Effect of Sr modification on microstructure and thermal conductivity of hypoeutectic Al-Si alloys

Jun-qi GAN, Yu-jian HUANG , Cheng WEN, Jun DU

School of Materials Science and Engineering, South China University of Technology, Guangzhou 510640, China

Received 23 January 2020; accepted 4 September 2020

Abstract: Trace amount of Sr (0.05 wt.%) was added into the hypoeutectic Al-Si (3-12 wt.% Si) alloys to modify their microstructure and improve thermal conductivity. The results showed that the thermal conductivity of hypoeutectic Al-Si alloys was improved by Sr modification, and the increment and increasing rate of the thermal conductivity gradually increased with Si content increasing. The improvement of thermal conductivity was primarily related to the morphology variation of eutectic Si phases. In Sr-modified Al-Si alloys, the morphology of eutectic Si phases was a mixed morphology of fiber structure and fine flaky structure, and the proportion of the fine flaky eutectic Si phases gradually decreased with Si content increasing. Under the Si content reaching 9 wt.%, the proportion of fine flaky eutectic Si phases was nearly negligible in Sr-modified alloys. Correspondingly, the increment and increasing rate of thermal conductivity of Sr-modified alloys reached the maximum and tended to be stable.

Key words: hypoeutectic Al-Si alloy; Sr modification; eutectic Si morphology; thermal conductivity; Al/Si interface

1 Introduction

Nowadays, some novel industries of 5G communication and new energy vehicles are being rapidly developed. The heat dissipation performance of materials that are applied in the sealed cavity housing of radio remote unit (RRU) of 5G communication base station and the battery pack cooling module of the new energy vehicle has received wide attention in the above mentioned emerging industries. The die-casting process of Al alloys is the most common technology to manufacture these components. Therefore, the research on die-casting Al alloys with high thermal conductivity has an important engineering significance and application value [1,2].

Al-Si alloys are the most commonly used die-casting Al alloys. However, the electrical conductivity of Al alloys would decrease with the addition of Si [3]. The reduction percentage of electrical conductivity of Al for Si in the state of solid solution was 11.6 times that of Si in the state of non-solid solution [4]. The equilibrium solid solubility of Si in Al matrix is only 0.05 wt.% at room temperature. Hence, the amount of Si in the state of non-solid solution is more than that of Si in the state of solid solution when the Si content is far more than 0.05 wt.% in Al alloys. As a result, the effect of Si in the state of non-solid solution on the electrical conductivity is also significantly important in most commercial Al-Si alloys. According to Weizmann-Frantz law [5,6], the electrical conductivity of alloys is normally proportional to the thermal conductivity. Therefore, the effect of Si on the electrical conductivity of Al alloys will be as same as that on the thermal conductivity of Al alloys.

In hypoeutectic Al-Si alloys, most of non- solid solution Si exists in the form of eutectic Si phases. In order to improve the strengthening effect of eutectic Si phases, researchers have studied many modified processes [7-9]. At present, the Sr modification process is widely used to treat the Al-Si alloys because Sr can efficiently transform the eutectic Si phases from coarse flaky structure to fine fiber structure, and improve the mechanical properties of Al-Si alloys [10-12]. In addition, some researchers have also found that Sr modification process can also improve the thermal conductivity of hypoeutectic Al-Si alloys, and believed that the transformation of eutectic Si morphology is the main reason for the improvement of thermal conductivity [13,14]. However, the mechanism of eutectic Si morphology affecting thermal conductivity has not been studied in depth.

Some researchers adopted the Maxwell model [15] to delve into the thermal conductivity of unmodified Al-Si alloys and compared the theoretical values. Besides, it was reported that the model can help qualitatively determine the varying trend of the thermal conductivity [5,6,16].  However, rare studies have been conducted to analyze the thermal conductivity of Sr-modified Al-Si alloys with Maxwell model. Some researchers reported that the morphology of the eutectic Si phases showed a direct association with the thermal conductivity of Sr-modified Al-Si alloys [17,18]. However, in the Maxwell model the effect of the second phase morphology on the thermal conductivity was not considered. For this reason, other methods should be adopted to analyze the variation law of the thermal conductivity of Al-Si alloys modified by Sr.

In this work, the hypoeutectic Al-Si alloys were selected as the model materials. The effect of Sr modification process on the morphology of eutectic Si phases in hypoeutectic Al-Si alloys with different Si contents was analyzed in depth. By establishing the free electrons scattering model at the Al/Si interface, the mechanism of thermal conductivity change was deeply studied.

2 Experimental

The commercially pure Al (99.8 wt.% Al, 0.095 wt.% Fe, 0.035 wt.% Si, 0.02 wt.% Zn, etc.) and Al-20Si master alloy were used as raw materials to prepare Al-Si binary alloys with different Si contents (0, 3, 5, 7, 9, and 12 wt.%). The raw materials were placed in graphite clay crucible and then melted in an electric resistance furnace (SG2-5-10). The melting temperature was set to be 750 °C. After melting, the melt was modified by Al-10Sr master alloy, and the addition amount of Sr was 0.05 wt.%. Subsequently, the melt was poured into a steel mold preheated at 200 °C to obtain a casting with a thickness of 4 mm. The castings air-cooled after pouring and all alloys were subjected to the identical solidification and cooling conditions.

The as-cast samples were processed into cylinders (d12.7 mm × 3 mm) and then employed  to determine the thermal diffusivity (α) with the laser flash method (NDTZSCH DSC 204F1) at room temperature [19]. The sample density was determined with Archimedes method (GF300-D). Besides, the specific capacity was measured with a differential scanning calorimeter (Netzsch DSC). At last, the thermal conductivity (λ) of each alloy was calculated by the formula: λ=αρc_p [20].

In order to characterize the three-dimensional morphology of eutectic Si phases, the samples were deep-etched with 10% hydrochloric acid alcohol for about 20 min, and then the surface of the samples was washed with absolute alcohol. Lastly, the eutectic Si phases were characterized by SEM-SEI (ZEISS Merlin).

3 Results

3.1 Thermal conductivity

The density (ρ), thermal diffusivity (α), specific heat capacity (c_p) and thermal conductivity (λ) of each alloy were listed in Table 1. Since commercially pure Al contains impurities, the  thermal conductivity of commercially pure Al (230.6 W/(m·K)) is lower than that of high purity Al (237 W/(m·K)). When Al-Si alloys were modified by Sr, the thermal conductivity (λ) increased. The increment (△λ, △λ=λ_md-λ_unmd, λ_md is the thermal conductivity of Sr-modified alloy, λ_unmd is the thermal conductivity of unmodified alloy) and increasing rate (△λ/λ_unmd) of thermal conductivity were calculated, as listed in Table 1.

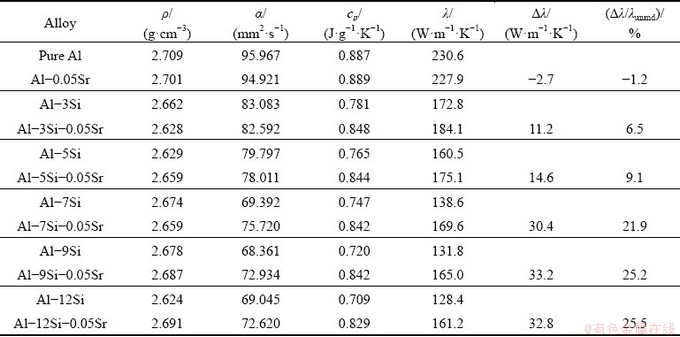

Table 1 Thermal conductivities and related properties of Al and its alloys

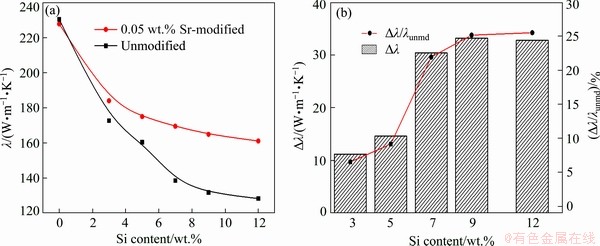

Fig. 1 Effect of Si content on thermal conductivity of Sr-modified and unmodified Al-Si alloys (a), and improvement of thermal conductivity induced by Sr modification (b)

Figure 1 showed the effect of Si content on the thermal conductivity of unmodified and Sr-modified Al-Si alloys. Figure 1(a) indicated that the thermal conductivity of unmodified Al-Si alloys gradually decreased by the addition of Si. The decline rate of thermal conductivity of Sr-modified Al-Si alloys was lower than that of unmodified Al-Si alloys. With the Si content increasing, the difference in thermal conductivity between unmodified and Sr-modified Al-Si alloys gradually increased.

The columnar height in Fig. 1(b) indicated  the increment of the thermal conductivity of Sr-modified Al-Si alloys, and the curve showed the trend of the increasing rate of thermal conductivity (△λ/λ_unmd) of Sr-modified Al-Si alloys. Figure 1(b) showed that the thermal conductivity of hypoeutectic Al-Si alloys was improved by Sr modification process. In general, the increment and the increasing rate of thermal conductivity were improved with the Si content increasing, and were stabilized at Si content of 9 wt.%. When the Si content was 3 wt.%, the increment and increasing rate of the thermal conductivity were the lowest, only 11.2 W/(m·K) and 6.5%, respectively. When the Si content was 9 wt.%, the increment and increasing rate of the thermal conductivity were 33.5 W/(m·K) and 25.2%, respectively, and tended to be stable as Si content further increased.

3.2 Microstructure

Fig. 2 OM images of α(Al) dendritic morphologies in Sr-modified Al-Si alloys

The microstructure of hypoeutectic Al-Si alloys is composed of primary α(Al) and (α(Al)+Si) eutectic structure. Figure 2 showed the OM images of Sr-modified Al-Si alloys. From Fig. 2 it can be seen that with the Si content increasing, the proportion of eutectic structure increased, as well as the dendrite gap. The dendrite gap in each alloy was measured and summarized in Fig. 3. At the Si contents of 3 wt.% and 5 wt.%, the average dendrite gaps were 2.3 and 3.7 μm, respectively. At the Si content more than 5 wt.%, the dendrite gap increased significantly, and the primary dendrite gap was much larger than secondary dendrite gap. To achieve a clearer comparison, only the secondary dendrite gaps were counted in Figs. 2(c-e). The statistics suggested that when the Si contents were 7 wt.%, 9 wt.% and 12 wt.%, the average secondary dendrite gaps reached 7.9, 8.9 and 8.8 μm, respectively, as shown in Fig. 3. This indicated that when the Si content was 9 wt.%, the secondary dendrite gap reached a stable value.

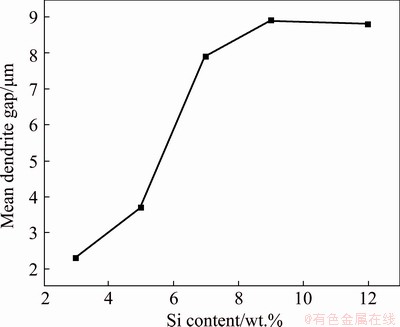

Fig. 3 Statistical results of dendrite gap in Sr-modified Al-Si alloys

The eutectic Si phase morphology was characterized by SEM. The observation results showed that the morphology and size of eutectic Si phases were nearly the same in all unmodified Al-Si alloys. Therefore, only the SEM image of Al-7Si alloy was presented in Fig. 4. Figure 4(a) showed that the eutectic Si phases were coarse  flaky structure in unmodified Al-7Si alloy, and  the maximum size of the coarse flaky eutectic Si phases was 20-30 μm. Figures 4(b)-(f) showed the morphologies of eutectic Si phases in Al-xSi (x=3, 5, 7, 9 and 12) alloys modified by 0.05 wt.% Sr. Compared with Fig. 4(a), the morphologies of eutectic Si phases changed significantly in Figs. 4(b)-(f). Most of the eutectic Si phases were transformed into fibrous structure with a diameter of 0.2-0.3 μm, and the end of fibrous eutectic Si phases was approximately hemispherical. Most of adjacent fibrous eutectic Si phases were parallel to each other. In addition, a small amount of eutectic Si phases were fine flaky structure, and the maximum length of the fine flaky eutectic Si phases was between 2 and 5 μm. The proportion of fine flaky eutectic Si phases was different with the Si content increasing.

Fig. 4 SEM images of eutectic Si phases in unmodified Al-7Si alloy (a) and Sr-modified Al-xSi alloys (x=3, 5, 7, 9 and 12)

Figure 4(b) illustrated that a certain amount of fine flaky eutectic Si phases (indicated by arrows) were adjacent and approximately parallel to each other in Sr-modified Al-3Si alloy. Likewise, there were also a certain amount of fine flaky eutectic Si phases in Sr-modified Al-5Si alloy. The eutectic Si phases indicated by arrows were fine flaky structure and almost parallel to each other, as presented    in Fig. 4(c). On both sides of fine flaky Si phases, approximately dendrite-like holes were left when the dendrites were fully etched. This indicated that most flaky eutectic Si phases were precipitated between the dendrites with a small gap.

When the Si content increased to 7 wt.%  (Fig. 4(d)), the eutectic Si phases were mainly fibrous structure, and the proportion of fine flaky eutectic Si phases was obviously smaller than that of Sr-modified Al-3Si and Al-5Si alloys.  Moreover, Fig. 4(d) showed that the flaky eutectic Si phases (indicated by arrows) were far away from each other, and were not parallel to each other. There were considerable fibrous eutectic Si phases between flaky eutectic Si phases.

Figures 4(e) and (f) showed that it was difficult to observe fine flaky eutectic Si phases, and the eutectic Si phases were almost fibrous when Si contents were 9 wt.% and 12 wt.%, respectively.

In this study, the proportion of fine flaky eutectic Si phases was used for judging the effect  of Sr modification process. There were still a certain amount of fine flaky Si phases in Sr-modified alloys when Si content was low, and thereby the effect of Sr modification process was weak. With the Si content increasing, the proportion of fine flaky Si phases gradually decreased, and thereby the effect of Sr modification process gradually increased. When the Si contents were   9 wt.% and 12 wt.%, respectively, it was difficult to observe fine flaky eutectic Si phases, and thereby Sr indicated an excellent modification effect.

4 Discussion

The electrical resistivity of Si phase is 11 orders of magnitude higher than that of pure Al at room temperature, and thereby the free electrons were very hard to pass through the eutectic Si phases. Therefore, the decrease of thermal conductivity should be related to the precipitation of high resistance eutectic Si phases that would hinder electrons transport in alloys. In addition, it suggested from experiment results that the increment and increasing rate of thermal conductivity of Sr-modified alloys were improved with the Si content increasing. The proportion of fine flaky Si phases in alloys with low Si content (≤5 wt.%) was higher than that of high Si content (≥7 wt.%). Thus, the improvement of thermal conductivity of Sr-modified alloys should be closely associated with the morphological variation of eutectic Si phases.

4.1 Effect of solidification on morphology of Si phases

For the hypoeutectic Al-Si binary alloy, the solidification is divided into two stages: L→α(Al) and L→α(Al)+Si, respectively. The α(Al) dendrites are precipitated in the former stage. The eutectic structure is precipitated in the later stage, and the morphology of eutectic Si phases is coarse flake. Sr modification process could change the morphology of eutectic Si phases [10-12]. Moreover, some studies [21,22] found that the fibrous eutectic Si branches originate from the trunk at the same angle (70.5°) in Sr-modified Al-Si alloys, so the mentioned adjacent fibrous eutectic Si branches are parallel to each other. However, in this study it was found that although most of eutectic Si phases were transformed into fibrous structure by Sr modification process, there were a certain amount of fine flaky Si phases between α(Al) dendrites. The proportion of fine flaky eutectic Si phases decreased with the Si content increasing.

The primary α(Al) solidification reaction was prior to α(Al)+Si eutectic reaction. During the eutectic reaction, the melt would solidify between α(Al) dendrites. Therefore, the dendrite gap and the solute distribution between the dendrites would affect α(Al)+Si eutectic reaction, especially the morphology of eutectic Si phases.

During the growth of primary α(Al), solute elements were continuously discharged at front of solid/liquid (S/L) interface. This would lead to solute enrichment at the front of S/L interface and form a diffusion field, resulting in constitutional undercooling (△T_c) [23-25]. From the onset of eutectic reaction, the diffusion field near the S/L interface of α(Al) dendrites would have a continuous effect on eutectic reaction [26-28]. When the solute diffusion fields between two adjacent α(Al) dendrites overlapped each other, the solute concentration gradient would decrease, and ΔT_c would in turn decrease. In the eutectic reaction, some eutectic Si phases nucleated on or near the primary α(Al) surface [26-28]. When △T_c was reduced to a critical undercooling (△T_cri), the eutectic Si phases that nucleated on or near the primary α(Al) surface and grew in the overlapping area of the diffusion field would grow in the form of fine flake [29].

Figure 3 showed that the average dendrite gap gradually increased with the Si content increasing. Therefore, in Sr-modified alloys, the overlapping area of the inter-dendrite diffusion field would decrease with the Si content increasing, and the area of the critical undercooling (ΔT_cri) required for the precipitation of flaky eutectic Si phases would in turn decrease. As a result, the precipitation probability for fine flaky eutectic Si phases became smaller, especially for those adjacent and parallel to each other.

4.2 Effect of Si phase morphology on thermal conductivity

According to Matthiessen’s rule, the resistivity can be expressed as [30,31]

ρ=ρ_T+ρ_R                                                  (1)

ρ_R=ρ_gb+ρ_d+ρ_ss+ρ_p                                        (2)

where ρ is the electrical resistivity of metallic materials; ρ_T is the basic resistivity, and only related to temperature; ρ_R is the residual resistivity, which was related to the microstructure and was the sum of four resistivity; ρ_gb denotes the resistivity induced by the grain boundary; ρ_d represents electron scattering by dislocations; ρ_ss and ρ_p are the resistivity components due to the solute atoms and precipitates phase, respectively. Only when the grain size close to the average free path of free electrons will the effect of ρ_gb on the resistivity be obvious [32]. The average free path of free electrons is in the order of nanometer [33], and the size of Al grains is in the order of micrometer or millimeter. Therefore, the effect of ρ_gb on the resistivity is negligible. The effect of ρ_d on the resistivity is slight at room temperature [30,34]. The cooling conditions were the same for all alloys, and thereby the solid solubility of Si in Al matrix was almost the same for unmodified and Sr-modified Al-Si alloys. Therefore, the improvement of thermal conductivity of Sr-modified alloys was mainly related to ρ_p.

Some researchers [30,35,36] found that the interface between matrix and secondary phase can scatter free electrons and shorten the average free path of electrons. The cross-section dimensions of secondary phase significantly affect the resistivity (ρ) of alloys, and the resistivity increases with P/S increasing, where P and S refer to the perimeter and the cross-section area of the second phase, respectively. From the mentioned finding, the influence law of secondary phase morphology on the electrical conductivity and thermal conductivity can be inferred.

TIMPLE et al [37-39] characterized the overall 3D morphologies of the eutectic Si phases in unmodified and Sr-modified Al-Si alloys by means of FIB-EsB tomography. They found that the overall 3D morphology of unmodified eutectic Si phases was flaky structure, and the overall 3D morphology of Sr-modified eutectic Si phases was a mixed morphology of fibrous structure and flaky structure. This is consistent with the results of this study, as shown in Fig. 3. Therefore, the cross- section of flaky Si phases is rectangular with a large aspect ratio, and the radial cross-section of fibrous Si phases is approximately circular.

From the mentioned analysis, it can be speculated that at the identical Si content, the thermal conductivity of Sr-modified Al-Si alloys is higher than that of unmodified Al-Si alloys since the P/S ratio of the circular cross-section is higher than that of rectangle cross-section. It can be further speculated that the increment and increasing rate of thermal conductivity should be improved with the decreasing proportion of flaky eutectic Si phases. These speculations were confirmed by experiment results of this study. But, the mechanism of interface to scatter free electrons is worthy of a deep analysis.

Though both eutectic Si phase and α(Al) phase dissolved a small amount of solute, their thermo-physical properties were close to those of pure Si and Al, respectively. The linear expansion coefficients of pure Al and Si were significantly different, as listed in Table 2 [4,40]. As revealed from the data in Table 2, in the temperature range of 400-800 K, the ratio of linear expansion coefficients of Al and Si was 7.3-8.1. Thus, as impacted by the difference in shrinkage between the α(Al) phase and the eutectic Si phase in the cooling process, thermal strains would be generated at Al/Si interface. It is noteworthy that the thermal strains on the α(Al) phase side would lead to the formation of lattice distortion layers. The lattice distortion layer would have a significant effect on the length of electron mean free paths.

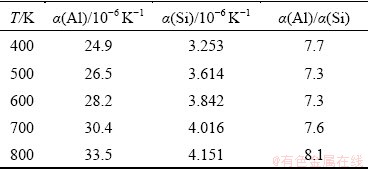

Table 2 Linear expansion coefficients of pure Al and Si at different temperatures [4,40]

The lattice structure of Al phase (FCC crystal structure) is different from that of Si (diamond crystal structure), and the lattice constant of Al (0.45 ) is also quite different from the of Si (0.54 ), and the former is 20% smaller than the latter. So, it is difficult to form a coherent interface. Therefore, a large number of crystal defects (e.g. vacancy and dislocation) would be generated in the lattice distortion layer of α(Al) phase.

In accordance with Bloch theorem [41], free electron mobility is maximized in a perfect atomic lattice. Any strains, imperfections, or bulk defects in the material act as free electron scattering  centers, which reduce their mean free paths and hence the conductivity [18]. Accordingly, the lattice distortion layer will scatter free electrons. The scattering effect is related to the transport path length of free electrons in lattice distortion layers, and the scattering effect increases with the increment of electrons transport path length.

At room temperature, the resistivity of Si is 11 orders of magnitude greater than that of Al, and thereby Si phases could be regarded as an insulator. Therefore, free electrons would be reflected by eutectic Si phases after passing through the lattice distortion layer. The transport path length (L) (L=L_i +L_r, where L_i is the length of incident path, and L_r is the length of reflection path) of free electrons in lattice distortion layer is related to many factors, among which the interface shape is the most important factor. Figure 5 presented the schematic diagram that free electrons transport at plane and circular interfaces, and the blue area indicated the lattice distortion layer in α(Al) phase.

Since the cooling conditions of all alloys were identical, the thickness of the lattice distortion layer of unmodified and Sr-modified alloys could be regarded as the same. When the free electron incident angle (i) and the lattice distortion layer thickness (δ) were the same, the length of incident path L_i of free electron at planar interface would be longer than that at circular interface. The difference in the two incident paths was △L_i (shown in Fig. 5(b)). Similarly, the length of reflection path L_r of free electron at plane interface would also be longer than that at the circular interface, and the difference in two reflection path was △L_r. Therefore, the difference in transport path length at the two different interfaces was expressed as ΔL (ΔL=ΔL_i+ΔL_r). It could be inferred that the fibrous eutectic Si phases could effectively reduce transport path length of free electrons in lattice distortion layers.

In this study, at the interface of unit area, the average difference in transport path length at the two different interfaces for all of the electrons was defined as average ΔL. Since the incident angle i of free electrons was random in all alloys, the average ΔL was only related to the radius (R) of fibrous eutectic Si phases. As discussed in Section 3.2, the diameter of fibrous eutectic Si phases in all Sr-modified Al-Si alloys was similar, so the fibrous eutectic Si phases exerted the same effect on decreasing the average ΔL in all Sr-modified alloys.

In addition, fibrous eutectic Si phases could also decrease the probability of free electron scattering. Under the same electron incidence angle i and incidence cross-section area (D×W, D and W are the length and width of the cross-section, respectively), the probability of free electrons scattering on flaky eutectic Si phases is greater than that of fibrous eutectic Si phases, since there are lots of gaps between fibrous Si branches, as shown in Figs. 6(a) and (b). Additionally, the probability of free electrons scattering between adjacent two parallel flaky eutectic Si phases was greater than that between two adjacent parallel fibrous   eutectic Si branches, as shown in Figs. 6(c) and (d). From the above analysis, it could be seen that flaky eutectic Si phases could decrease the probability of free electron scattering. WENG et al [42] also believed that the fibrous Si phases could effectively reduce the probability of electron scattering after studying the thermal conductivity of Sr-modified Al-Si alloys.

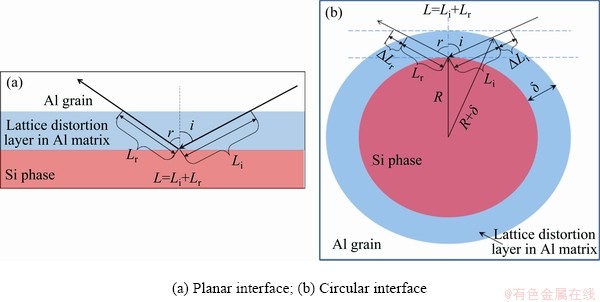

Fig. 5 Path of electron scattering at α(Al)/Si interface with different shapes

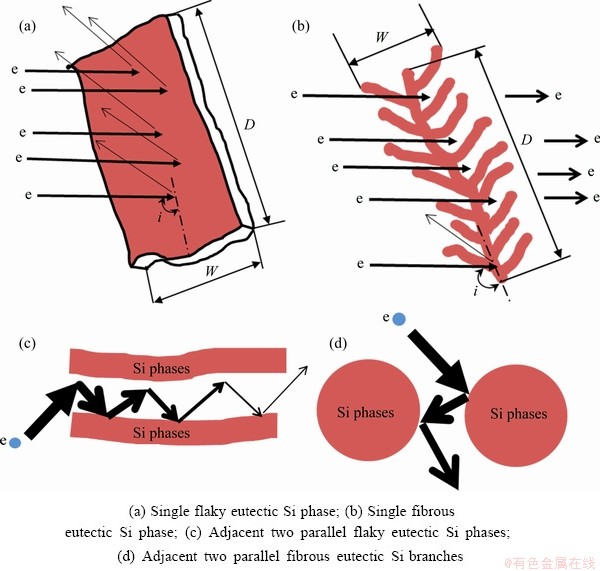

Fig. 6 Scattering of free electrons on different eutectic Si phases

In brief, fibrous eutectic Si phases could shorten the transport path length of free electrons in lattice distortion layer, and reduce the probability of free electrons scattering at the interface. Thus, the improvement of thermal conductivity for Sr-modified alloys was primarily related to the morphology variation of eutectic Si phases.

Under the same Si content, the density of eutectic Si phase in unmodified and Sr-modified alloys was almost the same. With the Si content increasing in Sr-modified alloys, the proportion of flaky eutectic Si phases decreased, especially the proportion of flaky Si phases parallel to each other decreased significantly. On the contrast, the proportion of fibrous Si phases gradually increased. Therefore, compared with unmodified Al-Si alloys, the increment and increasing rate of the thermal conductivity of Sr-modified alloys were improved with the Si content increasing. When the Si content was 9 wt.%, it was difficult to observe the flaky eutectic Si phases, and thereby the increment and increasing rate were 33.5 W/(m·K) and 25.2%, respectively, and tended to be stable as Si content further increased.

5 Conclusions

(1) The thermal conductivity of hypoeutectic Al-Si alloys was improved by Sr modification process. The increment and increasing rate of thermal conductivity were gradually increased with the Si content increasing，and tended to be stable as Si content was 9 wt.%.

(2) In Sr-modified hypoeutectic Al-Si alloys, the eutectic Si phase was a mixture of fibrous structure and fine flaky structure, and the proportion of the fine flaky eutectic Si phases gradually decreased with the Si content increasing. When the Si content reached 9 wt.%, the proportion of fine flaky eutectic Si phases was nearly negligible.

(3) The precipitation of fine flaky eutectic Si phases was related to the narrow dendrites gap in Sr-modified alloys. With the Si content increasing, the average secondary dendrite gap gradually increased. When the Si content was 9 wt.%, the average secondary dendrite gap tended to be stable.

(4) The transformation of eutectic Si phase morphology from flake to fiber was beneficial to improving the thermal conductivity. The fibrous eutectic Si phases could shorten the transport path length of free electrons in lattice distortion layer, and reduce the probability of free electron scattering on interface.
