Extracting reaction mechanism analysis of Zn and Si from zinc oxide ore by NaOH roasting method

CHEN Bing(陈兵)^{1, 2, 3}, SHEN Xiao-yi(申晓毅)^{1, 3}, GU Hui-min(顾惠敏)^{1, 3},

SHAO Hong-mei(邵鸿媚)¹, ZHAI Yu-chun(翟玉春)¹, MA Pei-hua(马培华)¹

1. School of Metallurgy, Northeastern University, Shenyang 110819, China;

2. Science and Technology Laboratory, Academy of Environmental Sciences, Panjin 124010, China;

3. Liaoning Key Laboratory for Metallurgical Sensor and Technology, Northeastern University,Shenyang 110819, China

Central South University Press and Springer-Verlag GmbH Germany 2017

Abstract: The orthogonal test was used to optimize the reaction conditions of roasting zinc oxide ore with NaOH aiming to comprehensively utilize zinc oxide ore. The optimized reaction conditions were molar ratio of NaOH to zinc oxide ore 6:1, roasting temperature 450 °C, holding time 150 min. The molar ratio of NaOH to zinc oxide ore was the most predominant factor affecting the extraction ratios of zinc oxide and silica. The mineral phase transformations were investigated by testing the phases of specimens obtained at different temperatures. The process was that silica reacted with molten NaOH to form Na₂SiO₃ at first, then transformed into Na₄SiO₄ with temperature rising. ZnCO₃ and its decomposing product ZnO reacted with NaOH to form Na₂ZnO₂. Na₂ZnSiO₄ was also obtained. The reaction rate was investigated using unreacted shrinking core model. Two models used were chemical reaction at the particle surface and diffusion through the product layer. The results indicated that the reaction rate was combine-controlled by two models. The activation energy and frequency factor were obtained as 24.12 kJ/mol and 0.0682, respectively.

Key words: zinc oxide ore; NaOH roasting method; reaction process; reaction mechanism; kinetics

1 Introduction

As an important nonferrous metal, zinc is widely used in galvanizing and battery field [1, 2]. Zinc is mainly produced from sulfide ore so far. However, due to the excess exploration and the rising demand for zinc, the zinc sulfide ore is gradually exhausted [3–6]. So, many researchers have to focus on the utilization of zinc oxide ore [7–9]. Zinc oxide ore is the secondary ore of zinc, which presents in a variety of oxide minerals, including Zn₂SiO₄, Zn₄(Si₂O₇)(OH)₂·H₂O, ZnCO₃, 2ZnCO₃·2Zn(OH)₂ and so on [10–13]. Typical metallurgical routes for extracting zinc from zinc oxide ore include pyrometallurgical methods, hydrometallurgical methods and their combination [2]. The routes of pyrometallurgical methods are to product spelter or crude zinc oxide by reducing zinc oxide in ore at 1000–1200 °C. However, due to high energy consumption and heavy pollution, pyrometallurgical methods are gradually losing their attraction [14, 15]. Hydrometallurgical methods include acid leaching, alkaline leaching and ammonia leaching. Every one has its advantages, but the challenges still exist. In acid leaching, silica gel is easily generated, which makes the following filtration difficult [16, 17]. When alkaline leaching is carried out, SiO₂ and PbO with ZnO will dissolve in the alkaline solution together, so additional work is needed to separate SiO₂, ZnO and PbO [18, 19]. When ammonia leaching is adopted, the vessels must be hermetically sealed because the volatile ammonia is a great threat to operator’s health and environment [20, 21].

Many researchers have focused on the improvement of current zinc extracting methods from complex zinc oxide ore. NaOH roasting technology is an effective method and can be carried out simply in air at low roasting temperature with pervasive equipments. In this work, NaOH roasting was adopted to extract ZnO, SiO₂ and PbO from zinc oxide ore to produce Na₂ZnO₂, Na₄SiO₄ and Na₆PbO₅. The extraction ratios of ZnO and SiO₂ were used as evaluation index in the orthogonal test.The mineral phase transformation was analyzed, and the reaction mechanism of roasting process was discussed.

2 Experimental

2.1 Materials and characterization

The zinc oxide ore used in experiments was obtained from a mine in Yunnan Province, China. The roast-alkali was industrial NaOH and the solvent was distilled water.

2.2 Procedure

First, the dried lump zinc oxide ore was crushed and ground to 74 mm (200 mesh) powders. Then the powders were mixed with industrial NaOH according to a certain molar ratio. Some mixture was weighed, put into a crucible, then placed in muffle furnace, heated to the setting temperature and held for a period of time. After calcination, the sample was taken out and leached in 80 °C water for 60 min and filtered, referring to Ref. [22]. The contents of Zn and Si both in solution and filter residue were examined by titration method, which were used to calculate the extraction ratios of zinc oxide and silica.

In kinetic experiments, the muffle furnace was heated to the setting temperature first, and then a series of crucibles with reactant mixture were put simultaneously and quickly into the furnace. After the temperature was stable, the crucibles were taken out one by one at a predetermined time interval and cooled rapidly in order to reduce the measurement error. The contents of Zn and Si were examined and the extraction ratios were calculated.

It is noteworthy that the molar ratio of NaOH to zinc oxide ore was the molar ratio of NaOH to molar sum of zinc oxide, silica and lead oxide in zinc oxide ore.

3 Results and discussions

3.1 Characterization of zinc oxide ore

XRD pattern and SEM image of zinc oxide ore are shown in Fig. 1. It is found that the main mineral phases in zinc oxide ore are ZnCO₃, SiO₂, Fe₃O₄, CaCO₃, PbCO₃ and CaSO₄·2H₂O (see Fig. 1(a)). The particles of the powder were irregular and distributed in a wide size range (see Fig. 1(b)).

The main chemical compositions in zinc oxide ore are listed in Table 1. The content of ZnO is 25.36%, which is the highest in zinc ore. The contents of SiO₂, PbO, Fe₂O₃ and CO₂ are 18.84%, 5.13%, 20.07% and 15.29%, respectively. The content of CaO is 5.96%, which is undesired. Because it will transform into insoluble Ca₂SiO₄, the extraction ratio of silica should be reduced. CO₂ comes from ZnCO₃, PbCO₃ and CaCO₃, which is confirmed by XRD pattern.

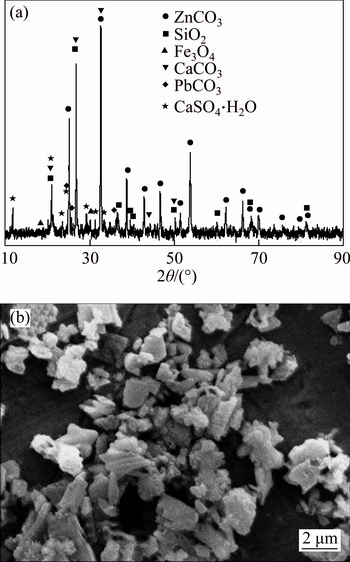

Fig. 1 XRD pattern (a) and SEM image (b) of zinc oxide ore

Table 1 Chemical contents of main compositions in zinc oxide ore (mass fraction, %)

3.2 Orthogonal test

Based on previous experimental results [6], the orthogonal test was adopted to optimize the reaction conditions of molten NaOH roasting zinc oxide ore. The L9(3⁴) tabulation consisting of four factors and three levels was chosen, as listed in Table 2. Three factors were molar ratio of NaOH to zinc oxide ore, roasting temperature, holding time. The results are listed in Table 3. The effects of the molar ratio of NaOH to zinc oxide ore, roasting temperature, holding time on the extraction ratios of ZnO and SiO₂ were notable. Among the three factors, the molar ratio had the most significant influence on the extraction. Roasting temperature had a less effect on ZnO extraction. But it was the weakest on SiO₂ extraction. The optimized reaction conditions for extracting zinc oxide and silica were as follows: molar ratio of NaOH to zinc oxide ore 6:1, roasting temperature 450 °C, holding time 150 min.

From 400 °C to 500 °C, the extraction ratio of ZnO kept increasing because the reaction between zinc oxide ore and NaOH was enhanced with the temperature rising. The extraction ratio of zinc oxide increased with rising molar ratio of NaOH to zinc oxide ore. This was because when the NaOH was insufficient, the reaction between zinc oxide ore and NaOH was inadequate. Conversely, when NaOH was enough, the reaction between zinc oxide ore and NaOH was improved due to the increasing contact area. Prolonging holding time increased the extraction ratio of zinc oxide. However, if the holding time is too long, it will cause energywaste as well as production efficiency decreasing. Thus, the holding time of 150 min was selected.

Table 2 Factors and levels of orthogonal test

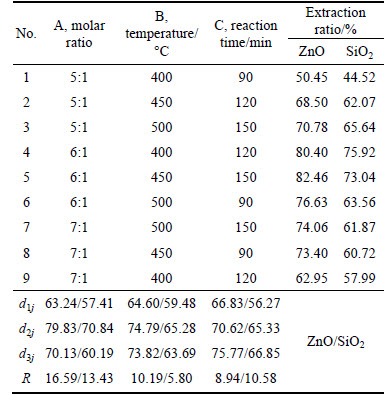

Table 3 Results of orthogonal test

3.3 Reaction process analysis

To illuminate the chemical reaction mechanism and mineral phase transformations in the roasting process, the phases of the specimens obtained at 300, 400, 500 and 600 °C were examined by XRD analysis. Figures 2(a)–(d) shows the XRD patterns of these specimens. It obviously showed that the quartz SiO₂ did not react with NaOH. The amorphous silica reacted with molten NaOH to form Na₂SiO₃ at first, followed by the transformation from Na₂SiO₃ to Na₄SiO₄ with rising roasting temperature. ZnCO₃ and its decomposition product ZnO reacted with NaOH to form Na₂ZnO₂. Na₂ZnSiO₄ was synthesized and stably existed when the roasting temperature was above 400 °C. Iron oxides of Fe₂O₃ and Fe₃O₄ were relatively stable. NaOH·H₂O was detected due to the significant water-absorbing capability of NaOH. NaHCO₃ was attributed to CO₂ absorption by wet NaOH. The existences of Na₂ZnSiO₄ and Ca₂SiO₄ accounted for why the extraction ratios of ZnO and SiO₂ were not high.

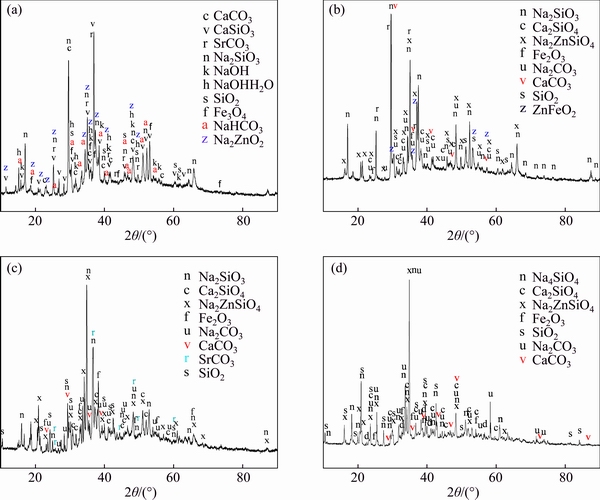

Fig. 2 XRD patterns of specimens obtained at 300 °C (a), 400 °C (b), 500 °C (c) and 600 °C (d)

3.4 Kinetic study

The melting point of NaOH is 318 °C and the extracting reaction of Zn and Si occur above 400 °C, so the extracting reactions between NaOH and zinc oxide ore should be liquid–solid reaction, which can be investigated by unreacted shrinking core model [2]. If the zinc oxide ore powders are looked as spherical particles, the reaction process may be controlled by two different models. When the reaction rate is controlled by chemical reaction occurring at particle surface [23], Eq. (1) is established. When the reaction rate is controlled by diffusion in solid product layer, Eq. (2) is established.

                             (1)

                       (2)

where t is reaction time (min); α is extracting fraction of zinc oxide or silica; k_c and k_p are reaction rate constants. 3.4.1 Effect of NaOH to zinc oxide ore molar ratio

The influence of NaOH to zinc oxide ore molar ratio on extraction ratios of zinc oxide and silica was investigated. The roasting temperature was kept constant at 450 °C. The results are plotted in Fig. 3.

The curves indicated that as molar ratio of NaOH to zinc oxide ore increased, the extraction ratios of zinc oxide and silica increased. Increasing dosage of NaOH raised the extraction ratios, which was conducive to augment the surface contact area. Within 120 min, the extraction ratios of zinc oxide and silica were kept increasing. The maximum values of zinc oxide and silica extraction ratios at the molar ratio of NaOH to zinc oxide ore 6:1 were 67.6% and 49.3%, respectively.

In order to identify the rate-controlling step, extraction kinetics of zinc oxide and silica were analyzed using two different models. Based on experimental data in Fig. 3, the relationships of right-hand sides of Eq. (1) and Eq. (2) against reaction time are shown in Figs. 4 and 5, respectively. The apparent reaction rate constants k_c and k_p were obtained from the slopes of those straight fitting lines and showed along with their corresponding correlation coefficients R² in Table 4. It was obvious that the correlation coefficients R² for straight fitting lines in Fig. 5 were closer to 1 than those in Fig. 4. Similarly, the fitting lines in Fig. 5 were nearer to point 0 than those in Fig. 4.

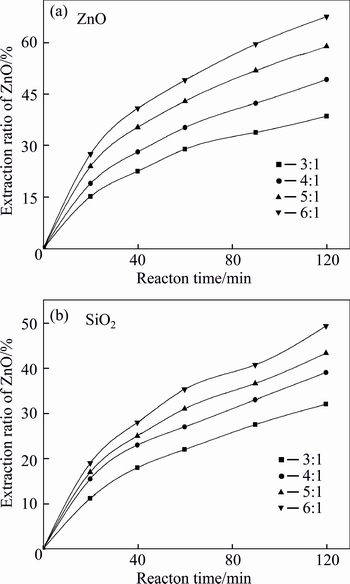

Fig. 3 Influence of NaOH to zinc oxide ore molar ratio on extraction ratios of zinc oxide (a) and silica (b)

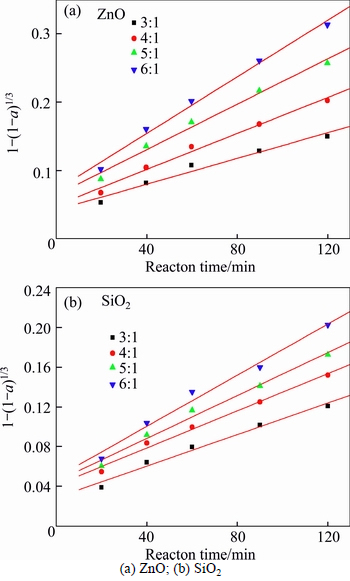

Fig. 4 Plots of 1-(1-α)^1/3 against reaction time at different molar ratios:

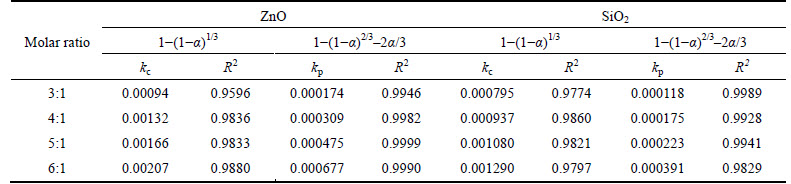

Table 4 Apparent rate constants and correlation coefficients at different molar ratios

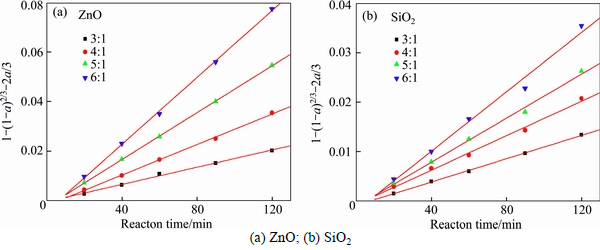

Fig. 5 Plots of 1-(1-α)^2/3–2α/3 against reaction time at different molar ratios:

3.4.2 Effect of roasting temperature

The effect of roasting temperature on the extraction ratios of zinc oxide and silica was investigated from 350 °C to 500 °C. The molar ratio of NaOH to zinc oxide ore was 6:1. The experimental results are plotted in Fig. 6.

From Fig. 6, the roasting temperature played a significant role in extracting of zinc oxide and silica. The extraction ratios of zinc oxide and silica increased with the rising of roasting temperature. About 67% zinc oxide and 61% silica were extracted when roasting temperature was 500 °C and reaction time was 120 min. The extraction kinetics of zinc oxide and silica was investigated too. The plots of right-hand sides of Eq. (1) and Eq. (2) against reaction time are shown in Figs. 7 and 8, respectively.

The apparent rate constants k_c and k_p were obtained from the slops of those straight fitting lines in Figs. 7 and 8. The values of k_c and k_p as well as their corresponding correlation coefficients R² are recorded in Table 5. All the straight fitting lines in Fig. 8 were nearer to zero point than those in Fig. 7. It seemed that the roasting reaction rate of zinc oxide ore using NaOH was controlled by the diffusion through product layer, which was consistent with the above.

In kinetic experiments, the muffle furnace was heated to the setting temperature first, then a series of crucibles with reactant mixture were put simultaneously and quickly into the furnace. Due to the limitation of experimental conditions, when the roasting temperature was stable again, the chemical reaction between zinc oxide ore and NaOH must have been going on, so the real extraction ratios of ZnO and SiO₂ should be greater than zero when starting to time. It was essential to verify the rationality of experimental results by calculating the apparent activation energy E using Eq. (1) and Eq. (2).

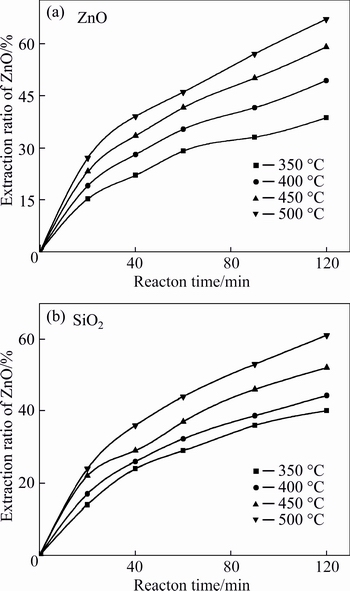

Fig. 6 Effect of roasting temperature on extraction ratios of zinc oxide (a) and silica (b)

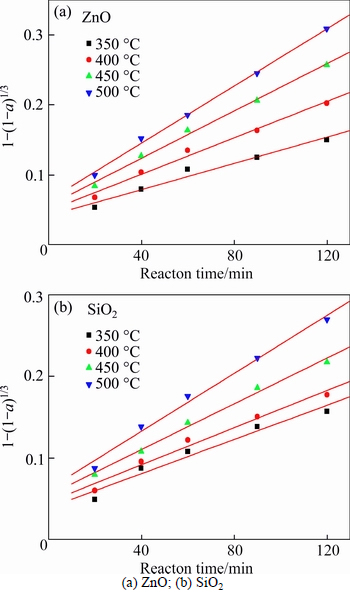

Fig. 7 Plots of 1-(1-α)^1/3 against reaction time at different roasting temperatures:

3.4.3 Calculation of apparent activation energy

The reaction rate constant k is a temperature function, which can be expressed by Arrhenius equation [24]:

                           (3)

where A is frequency factor; E is apparent activation energy.

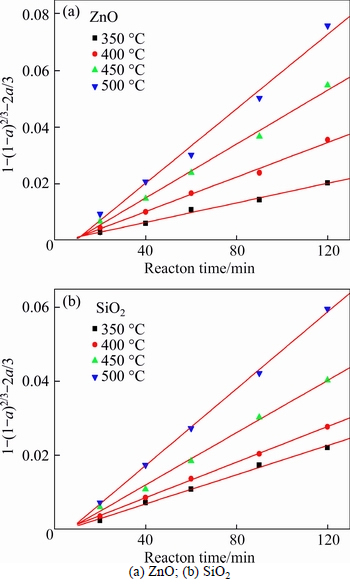

Fig. 8 Plots of 1-(1-α)^2/3–2α/3 against reaction time at different roasting temperatures:

According to Eqs. (1) and (2), relationships of lnk to 1/T for ZnO and SiO₂ are plotted in Figs. 9 and 10, respectively.

According to Figs. 9(a) and (b), the apparent activation energies (E) of ZnO’s and SiO₂’s extracting reaction were calculated to be 20.81 kJ/mol and 13.97 kJ/mol, respectively. The corresponding frequency factors (A) were 0.0529 and 0.0148, respectively. The average E and average A were 17.39 kJ/mol and 0.0338, respectively.

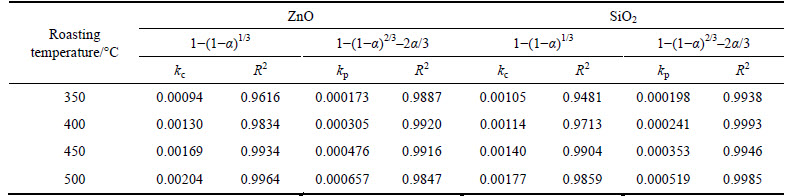

Table 5 Apparent rate constants and correlation coefficients at different roasting temperatures

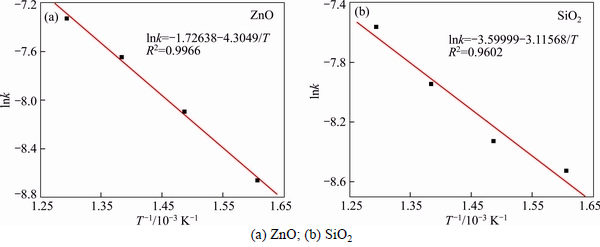

Fig. 9 Plots of lnk against 1/T at different roasting temperatures using Eq. (1):

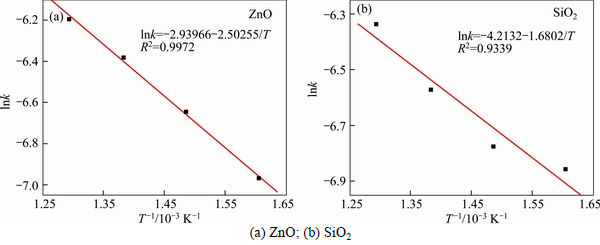

Fig. 10 Plots of lnk against 1/T at different roasting temperatures using Eq. (2):

The apparent activation energies (E) calculated according to Figs. 10(a) and (b) were 35.79 kJ/mol and 25.90 kJ/mol, respectively. The corresponding frequency factors (A) were 0.1779 and 0.0273, respectively. The average E and average A were 30.85 kJ/mol and 0.1026, respectively. So, we can obtain the average apparent activation energy E of two calculation methods for roasting process was 24.12 kJ/mol.

Generally, when activation energy is lower than 20 kJ/mol, the chemical reaction meets diffusion control model. When activation energy is higher than 40 kJ/mol, the reaction meets chemical reaction control model [25, 26]. At the same time, when reaction activation energy is between 12 and 41.8 kJ/mol, the chemical reaction process should meet mixed control model [27]. So, the following equation is established.

                              (4)

That is to say, in Eq. (4), 1–(1–a)^1/3 and reaction time show a linear relationship, where a is reaction rate, k is average reaction rate constant, k=k₁×k₂/(k₁+k₂), k₁ is reaction rate constant in chemical reaction control model, and k₂ is reaction rate constant in diffusion control model. When k₁>k₂, the chemical reaction control is dominant; When k₁2, the diffusion control is dominant.

In summary, the following kinetic equation is established.

          (5)

3.5 Characterization of residue after zinc extraction

Figures 11(a) and (b) show the XRD pattern and SEM image of water-leaching residue. The roasting reaction conditions are the appropriate reaction conditions obtained through orthogonal test.

The main phases in residue were quartz silica, Na₂ZnSiO₄, Ca₂PbO₄, Ca₂SiO₄, NaFeO₂ and iron oxides. Due to the existences of Na₂ZnSiO₄, Ca₂PbO₄ and Ca₂SiO₄ which are very stable in alkaline condition, the extraction ratios of zinc oxide and silica were not high.

Table 6 lists the main chemical compositions in residue. The contents of Fe₂O₃, ZnO, SiO₂, CaO and PbO₂ were 47.92%, 10.29%, 12.95%, 14.23% and 1.94%, respectively. In combination with data in Table 1 and Table 6, the extraction ratios of zinc oxide and silica were about 83.20% and 71.21%, respectively, which were approximate to the results of orthogonal test. Fe₂O₃ in residue is valuable and can be retrieved too.

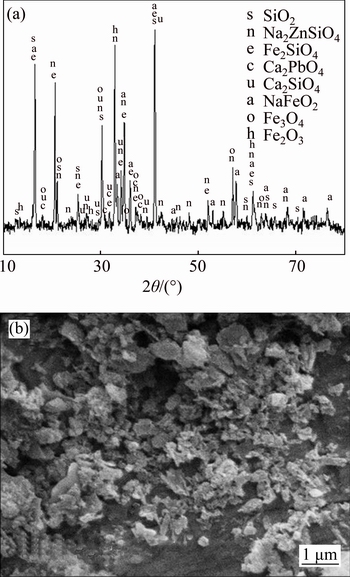

Fig. 11 XRD pattern (a) and SEM image (b) of residue

Table 6 Main compositions of residue

4 Conclusions

1) The optimized reaction conditions of extracting zinc oxide and silica were as follows: molar ratio of NaOH to zinc oxide ore 6:1, roasting temperature 450 °C, holding time 150 min. The molar ratio of NaOH to zinc oxide ore was the most predominant factor to influence the extraction ratios of zinc oxide and silica. The extraction ratios of zinc oxide and silica were about 83% and 72%, respectively.

2) The reaction kinetics equation is obtained,

3) The amorphous silica reacted with molten NaOH to form Na₂SiO₃ at first, and then transformed into Na₄SiO₄ with the rising of roasting temperature, but quartz SiO₂ did not react with NaOH. ZnCO₃/ZnO reacted with NaOH to form Na₂ZnO₂ with temperature rising, and Na₂ZnSiO₄ was also synthesized.
