Trans. Nonferrous Met. Soc. China 29(2019) 1057-1066

Microstructure, hydrogen storage thermodynamics and kinetics of La₅Mg_95-xNi_x (x=5, 10, 15) alloys

Zhen-yang LI^1,2, Sheng-li LI¹, Ze-ming YUAN^2,3, Yang-huan ZHANG^2,3, Yan QI²

1. School of Materials Science and Engineering, Shandong University, Ji’nan 250061, China;

2. Department of Functional Material Research, Central Iron and Steel Research Institute, Beijing 100081, China;

3. Key Laboratory of Integrated Exploitation of Baiyun Obo Multi-Metal Resources, Inner Mongolia University of Science and Technology, Baotou 014010, China

Received 27 June 2018; accepted 30 December 2018

Abstract: The microstructure, hydrogen storage thermodynamics and kinetics of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys with different Ni contents were investigated. The evolutions of the microstructure and phase of experimental alloys were characterized by X-ray diffractometry and scanning electron microscopy. The hydrogen storage kinetics and thermodynamics, and P-C-I curves were tested using a Sievert apparatus. It is found that increasing Ni content remarkably improves hydrogen storage kinetics but reduces the hydrogen storage capacity of alloys. The highest hydrogen absorption/desorption rate is observed in the La₅Mg₈₀Ni₁₅ alloy, with the lowest hydrogen desorption activation value being 57.7 kJ/mol. By means of P-C-I curves and the van’t Hoff equation, it is determined that the thermodynamic performance of the alloy is initially improved and then degraded with increasing Ni content. The La₅Mg₈₅Ni₁₀ alloy has the best thermodynamics properties with a hydrogenation enthalpy of -72.1 kJ/mol and hydrogenation entropy of -123.2 J/(mol·K).

Key words: hydrogen storage; Mg-based alloys; thermodynamics performance; kinetics performance; Ni content

1 Introduction

Hydrogen energy is a clean, efficient, safe, abundant, and sustainable secondary energy [1-3], and hydrogen storage technology is the critical aspect of hydrogen energy development and application. Hydrogen storage refers to the methods and equipment to confine hydrogen in a certain form (molecular, atomic, or ionic states) within a volume and mass that fit the actual application and achieve a suitable volumetric and mass energy density [4,5]. Globally, the application of hydrogen energy is considered to be critical. One of the 10 major scientific developments in China in 2017 was the realization of cryogenic preparation and storage of hydrogen. Mg and Mg-based alloys have become attractive hydrogen storage materials because of their high hydrogen capacity (7.6 wt.% for MgH₂, 3.6 wt.% for Mg₂NiH₄) and abundant reserves [6]. Nevertheless, hydrogen storage has many problems, including high dehydrogenation temperature, sluggish hydrogen storage kinetic performance, and poor electrochemical cycle stability that seriously affect its practical development [7,8].

In 1980, OESTERREICHER and RITTNER [9] introduced the La_1-xMg_xNi₂ alloy using the induction melting method, which introduced the hydrogen storage research field to the study of RE-Mg-Ni-based materials. La_0.33Mg_0.67Ni₂ compounds can form hydrides at room temperature. Related studies revealed that Re-Mg-Ni alloys have good capacities and excellent hydrogen absorption/ desorption properties [10-13]. For example, ZHANG et al [14] comprehensively reported that the melt-spun Mg₁₀NiLa specimens show an amorphous phase and minor crystalline La₂Mg₁₇ after melt spinning. KALINICHENK et al prepared Mg₉₀Ni₈RE₂ (RE=Y, Nd, Gd) and melt-spun Mg-Ni-Cu-Y and obtained hydrogen storage and absorption capacities of 5.6 [15] and 4.8 wt.% [16], respectively. They also prepared Mg₈₀Ni₁₀Y₁₀ and obtained a reversible hydrogen capacity of 5.2 wt.% [17]. HAO et al [18] prepared Mg_88.5Ni_xLa_y (y/x=1/16) alloys and obtained a hydrogen storage capacity of 4.45 wt.%. LV et al [19] reported on the microstructural evolution of Mg-xNi-3La (x=5, 10, 15, 20, at.%) alloys and determined that the Mg-15Ni-3La alloy had the lowest hydrogen desorption activation value (E_a) of 80.36 kJ/mol. ZHANG et al [20] studied nanocrystalline and amorphous LaMg₁₁Ni+x% Ni (x=100, 200, mass fraction) alloys by mechanical milling and found that increasing Ni content visibly improves the gaseous hydrogen storage properties. SPASSOV and KOSTER [21] prepared a series of Mg-Ni-RE alloys (RE=La, Ce, Y) with nanocrystalline and amorphous or partially amorphous microstructures by rapid quenching and the as-quenched Mg₇₅Ni₂₀Mm₅ (Mm=Ce, La-rich misch metal) alloy could absorb 4.0 wt.% H₂ in 100 min. YUAN et al [22] reported the effect of Mm content on the microstructure and hydrogen storage properties of the as-cast Mg-10Ni-xMm (x=1, 2, 3, at.%) in which alloys were prepared using a simple one-step method of induction melting. The amount of hydrogen absorption reached 5.26 wt.% within 350 s at 573 K and the hydrogen desorption amount reached 4.72 wt.% in less than 300 s at the same temperature. The E_a value of MgH₂ in this system was decreased to 88.6 kJ/mol. These studies reveal that RE-Mg-Ni alloys have good hydrogen absorption and desorption properties, and thus deserve additional examination.

LIU et al [23] reported that Mg_100-xNi_x (x=5, 11.3, 20, 25) specimens have excellent hydrogen storage properties but did not consider alloying methods. Considering that the addition of rare-earth elements can enhance hydrogen storage performance, the target materials were determined to be La₅Mg_95-xNi_x (x=5, 10, 15). In this study, changes in the microstructure, hydrogen storage kinetics, and thermodynamics performance of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys, which were fabricated using vacuum induction melting with increasing Ni content, were systematically studied.

2 Experimental

The vacuum induction furnace was utilized to prepare La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys and for preventing Mg volatilizing, the furnace was put in a helium atmosphere. The source of He is from CISRI corporation, and its purity is at least 99.999%. In the preparation conditions, putting excess Mg (10%) and La (5%) is crucial to compensate for evaporative loss based on our experience. After the alloys were melted, insulation for 10 min made them well mixed, then molten alloys were poured into a copper cooled mould. When cooling to room temperature, a cast ingot was obtained.

X-ray diffraction (D/max/2400) was utilized to determine the phase structures of as-milled alloys. The experimental parameters were set as 160 mA, 40 kV and 10 (°)/min, and it was performed with Cu K_α1 radiation filtered by graphite. The morphologies of the as-cast La₅Mg_95-xNi_x (x=5, 10, 15) alloys were observed using A Philips SEM (QUANTA 400).

The P-C-I curves, hydrogen absorption and desorption kinetics of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys were measured by an automatically controlled Sieverts apparatus produced by Suzuki Shokan Co., Ltd. (PCT-4SDWIN) with a furnace controlled to an accuracy of ±1 °C. 0.5 g sample which passed through a 300-mesh sieve was put into a cylindrical reactor in every experiment. The hydrogen absorption was conducted at an initial H₂ pressure of 3.5 MPa at 100, 150, 200, 240, 300 and 360 °C and the hydrogen desorption at an initial H₂ pressure of 1×10^-4 MPa at 280, 300, 320, 340 and 360 °C. After every experiment, the temperature was reset to 360 °C, and the sample chamber was evacuated below 1×10^-4 MPa for 30 min to make sure that the hydrogen was released completely. For simplification, La₅Mg_95-xNi_x (x=5, 10, 15) alloys are abbreviated as Mg90, Mg85 and Mg80.

3 Results and discussion

3.1 Crystal and microstructural characteristics

The X-ray diffraction (XRD) patterns of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys can be seen in Fig. 1. Figure 1(a) indicates that the Mg90, Mg85, Mg80 alloys are all composed of La₂Mg₁₇ as the main phase, and Mg₂Ni, La₂Ni₃ and Mg phases. However, the LaMg₂-based second phase is found in Mg90 and Mg85 alloys, but not in Mg80 alloy. This indicates that the amount of Mg₂Ni phase increases, whereas that of the Mg phase decreases with increasing Ni content. The actual compositions of the La₅Mg_95-xNi_x (x=5, 10, 15) alloys were measured by inductive coupled plasma emission spectrometer. Table 1 lists the compositions of experimental alloys.

In Fig. 1(b), XRD patterns of the alloys after hydriding show that the Mg90, Mg85 and Mg80 alloys after hydriding are all composed of MgH₂, Mg₂NiH₄ and rare earth hydride LaH₃. Combined with the previous study [24,25], we found that La₂Mg₁₇+H₂→LaH₃+MgH₂, Mg₂Ni+H₂→Mg₂NiH₄, and Mg+H₂→MgH₂ occurred in Mg90, Mg85, and Mg85 alloys during the first hydrogen absorption. Moreover, LaMg₂+H₂→LaH₃+MgH₂ also occurred in Mg90 and Mg85.

From Fig. 1(c), the XRD patterns of the alloys after dehydriding show that the Mg90, Mg85, and Mg80 alloys after dehydriding are all composed of Mg₂Ni, Mg and rare earth hydride LaH₃. This indicates that MgH₂ and Mg₂NiH₄ transform into Mg and Mg₂Ni during the dehydrogenation process, whereas the rare earth hydride LaH₃ is difficult to disintegrate. The rare earth hydride LaH₃ phase is unable to participate in reversible hydrogen absorption and desorption, due to its higher decomposition temperature. It is inferred that the reactions occurring during hydrogen absorption and desorption are Mg+H₂MgH₂ and Mg₂Ni+H₂Mg₂NiH₄.

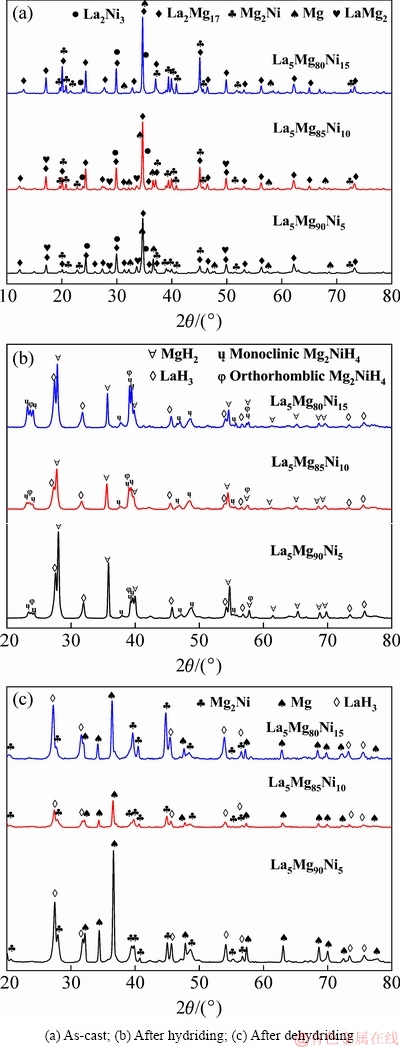

Fig. 1 XRD patterns of La₅Mg_95-xNi_x (x=5, 10, 15) alloys

Table 1 Actual compositions (wt.%) of La₅Mg_95-xNi_x (x=5, 10, 15) alloys measured by ICP

For observing the microstructures of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys, Fig. 2 shows back-scattered SEM images. It is indicated that the microstructure has great changes with the rising of Ni content. According to the EDS and Mg-Ni-La ternary phase diagram [26], the alloys are all composed of four phases. The dark region is Mg, the bright region is Mg₂Ni, the dark gray region is LaMg_x (LaMg₂ + Mg + La₂Mg₁₇), and the shiny gray region is LaMg_x + Mg₂Ni, represented by A, B, C, D in the images. It is shown that the microstructure of LaMg_x changes from reticular to planar, and the amount of Mg₂Ni phase increases considerably, whereas the Mg phase gradually disappears with the rising of Ni content.

Fig. 2 Back-scattered SEM images of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys

Scanning electron microscopy (SEM) images of the powders before and after hydriding are shown in Fig. 3, with Mg90 as representative. Figures 3(a) and (b) shows that the surface of the powder particles is smooth before hydriding. However, many cracks are produced after hydriding, as shown in Figs. 3(c) and (d). These cracks are produced by the accumulation of internal stresses caused by the constant expansion and contraction of unit cells during the hydrogen absorption/desorption process. The cracks can provide diffusion paths for hydrogen atoms, which help to improve the hydrogen storage performance of the alloys.

Figure 4 shows isothermal hydrogenation and dehydrogenation curves for La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys. Hydrogenation activation and the dehydrogenation reaction occur at 360 °C and 3.5 MPa and at 360 °C and 1×10^-4 MPa, respectively. With more than five activation cycles, the Mg90, Mg85 and Mg80 alloys have 5.8, 5.3 and 4.9 wt.% reversible hydrogen absorption/desorption capacity, respectively. Clearly, the capacity reduces with increasing Ni content because the hydrogen absorption/desorption capacity of Mg is much greater than that of Mg₂Ni. Meanwhile, the capacity of each alloy hardly changes as the cycles are increased. Moreover, the maximum capacities of Mg90, Mg85, and Mg80 during the first absorption activation process are 6.4, 5.9 and 5.5 wt.%, respectively, which are greater than the reversible capacities.

This phenomenon is due to the fact that rare earth hydride LaH₃ is difficult to disintegrate during the desorption process because of its high thermal stability. Regarding the first desorption process, 246, 180 and 144 s are considered for Mg90, Mg85 and Mg80 alloys, respectively, to reach complete desorption activation. After reaching a stable state, Mg90, Mg85 and Mg80 require 192, 156 and 120 s, respectively, to reach complete desorption activation. As shown in Fig. 4, Mg90 reaches complete activation after five cycles, whereas Mg85 and Mg90 reach it after only three cycles. The activation is significantly reduced with increasing Ni content.

Fig. 3 SEM images of powders of La₅Mg₉₀Ni₅

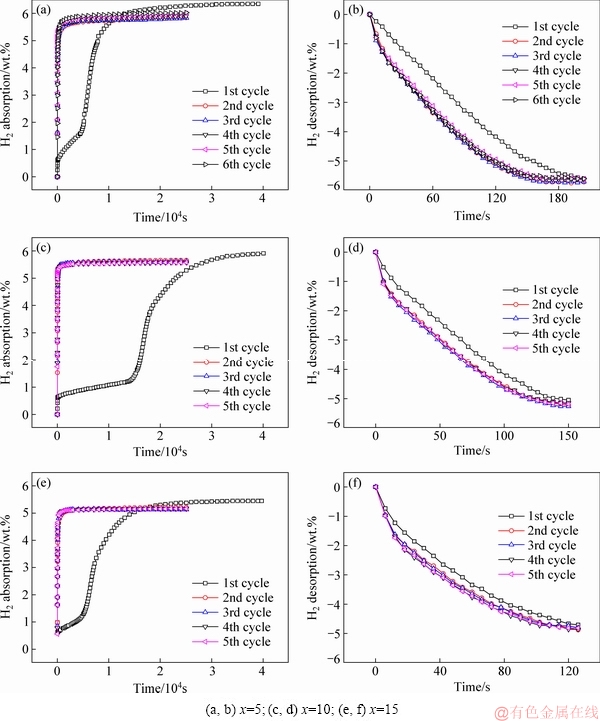

Fig. 4 Isothermal hydrogen absorption and desorption curves of La₅Mg_95-xNi_x (x=5, 10, 15) alloys in cycle activation with hydrogenation reaction at 360 °C and 3.5 MPa (a, c, e), and dehydrogenation reaction at 360 °C and 1×10^-4 MPa (b, d, f)

3.2 Hydrogen storage kinetics

The isothermal hydrogen absorption/desorption kinetic curves are shown in Figs. 5 and 6. Clearly, the hydrogen absorption rate and capacity of the alloys increase remarkably with rising temperature. Moreover, although the reversible hydrogen capacity decreases with increasing Ni content, the rate notably increases. The curves at 100 °C and particularly at 150 °C show that the absorption rate increases with increasing Ni content. This means that Ni remarkably improves hydrogen storage kinetics in the experimental range.

As seen from Fig. 6, the dehydrogenation capacities also decrease with increasing Ni content. To complete dehydrogenation at 360, 340, 320, 300 and 280 °C, Mg90 requires 192, 252, 450, 684 and 2760 s, respectively, Mg85 requires 156, 204 384, 600 and 960 s, respectively, and Mg80 requires 120, 156, 216, 343 and 660 s, respectively. Clearly, the dehydrogenation rate increases with increasing Ni content, and Ni remarkably improves the hydrogen storage kinetics of alloys. The Johnson-Mehl-Avrami (JMA) model was utilized to simulate the curves related to hydrogen storage kinetics and hydrogen desorption activation, and the Arrhenius method was employed to calculate the critical value.

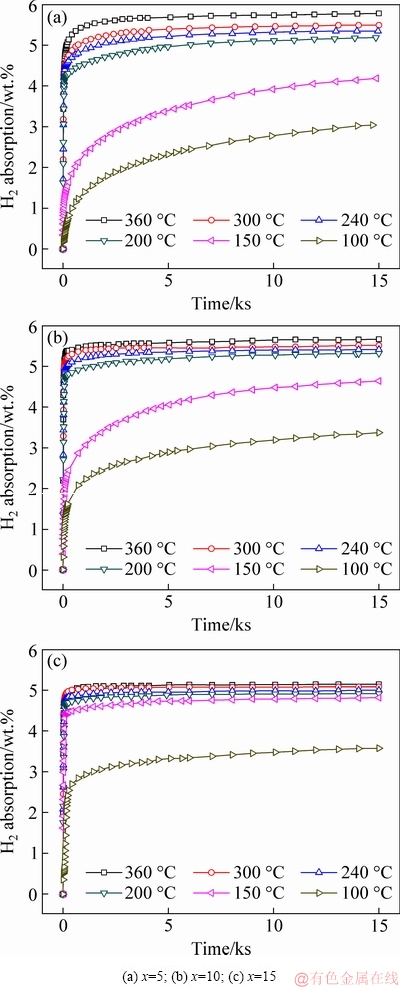

Fig. 5 Isothermal hydrogenation kinetic curves of La₅Mg_95-xNi_x (x=5, 10, 15) alloys at different temperatures

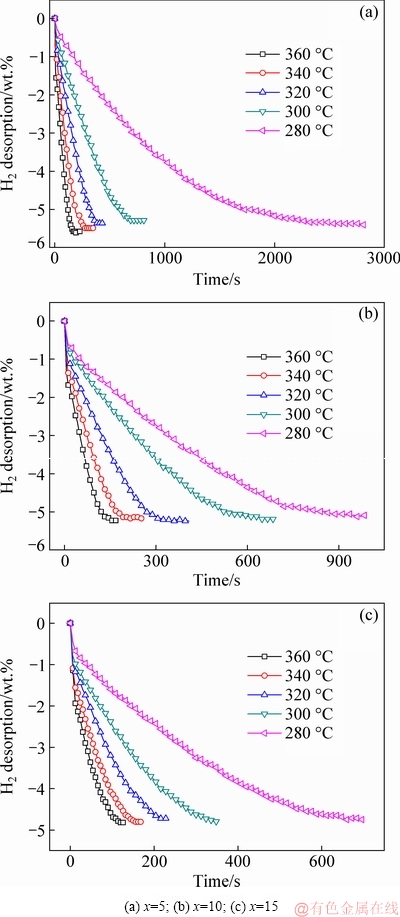

Fig. 6 Isothermal dehydrogenation kinetic curves of La₅Mg_95-xNi_x (x=5, 10, 15) alloys at different temperatures

Fig. 7 JMA plots and Arrhenius plots for dehydrogenation of La₅Mg_95-xNi_x (x=5, 10, 15) alloys

Then, the influence of Ni content on the hydrogen storage kinetics could be obtained from the results. In general, activation energy is seen as an obstacle in which all potential barriers that perform a gas-solid reaction must be overcome, as activation energy is an extremely critical part of gas-solid reaction kinetics. It is widely acknowledged that hydrogen desorption reactions are related to total energy barriers, which must be considered in hydrogen desorption processes. The JMA model can be used to simulate the nucleation and growth processes of the alloys:

ln[-ln(1-α)]=ηln k+ηln t                    (1)

where t, α, η and k characterize the time, the fraction of the alloy converted to hydride at time t, the Avrami exponent, and an effective kinetic parameter. As seen from Fig. 7, by utilizing the logarithmic transformation, we can obtain JMA curves of ln[-ln(1-α)] and ln t at 320, 340 and 360 °C for the dehydrogenation of alloys. The JMA curves are found to be nearly linear, which means that the dehydriding reaction of the alloys is activated by instantaneous nucleation, which is followed by an interface-controlled three-dimensional growth process. The value of k can be obtained from the slope η and intercept ηln k. Arrhenius methods can be then used to calculate the E_a:

k=Aexp[-E_a/(RT)]                            (2)

where A, R and T characterize a temperature independent coefficient, the universal gas constant, and an absolute temperature. As seen from Fig. 7, by utilizing the logarithmic transformation, we can obtain Arrhenius curves of ln k and 1/T at 320, 340, and 360 °C for the dehydrogenation of alloys. The Arrhenius curves are found to be nearly linear and the E_a values of the alloys can be calculated by the slopes of the line. The E_a values of Mg90, Mg85 and Mg80 are calculated as 77.0, 65.1 and 57.7 kJ/mol, respectively. In addition, hydrogen storage kinetics is improved with increasing Ni content. The value is considerably lower than 150-160 kJ/mol of   the MgH₂ [27,28] and 80.36 kJ/mol of Mg-15Ni-3La  alloy [19], but approximates 59.1-78.6 kJ/mol of the LaMg₁₁Ni+xNi alloy [20]. The lower E_a value is mostly the result of alloying and the presence of the rare earth hydride. The addition of Ni causes the alloy to produce more Mg₂Ni, whereas Mg₂Ni has very low hydrogen evolution activation energy, even though its hydrogen storage capacity is less than that of Mg. Moreover, adding the rare earth La causes the activated alloy to produce a rare earth hydride phase LaH₃, where LaH₃ has a “hydrogen pump effect” that greatly reduces the hydrogen activation energy value of the alloys.

3.3 Thermodynamic properties

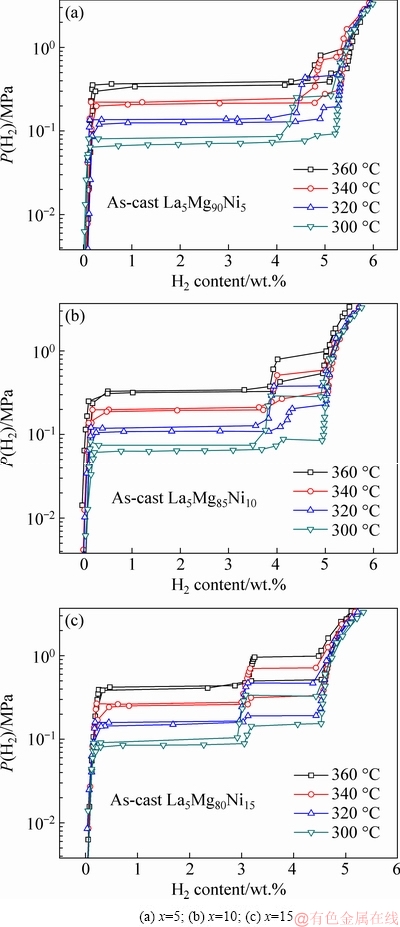

Fig. 8 P-C-I curves of La₅Mg_95-xNi_x (x=5, 10, 15) alloys measured at different temperatures

The P-C-I curves of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys were tested at 300, 320, 340, and 360 °C to explore the influence of Ni content on the thermodynamic properties of the alloys, as shown in Fig. 8. Two distinct hydrogen absorption/desorption plateaus can be clearly seen on the P-C-I curves. The reactions at the first and second absorption plateaus are Mg+H₂→MgH₂ and Mg₂Ni+H₂→Mg₂NiH₄, respectively, according to XRD. A slight slope appears on the upper plateau because Mg₂Ni phase undergoes internal stress, particularly in the Mg90 alloy. The XRD patterns show obvious diffraction peaks of Mg₂Ni. In addition, the P-C-I curves reveal that the critical thermodynamic parameters of La₅Mg_95-xNi_x (x=5, 10, 15) ternary alloys, namely, ΔH and ΔS, are easily calculated using the van’t Hoff equation:

ln[P(H₂)/P₀]=ΔH/(RT)-ΔS/R                    (3)

where P(H₂) and P₀ characterize the equilibrium plateau pressure and 1.01325×10⁵ Pa, respectively. Figure 9 shows the van’t Hoff curves of [P(H₂)/P₀] and 1/T. The curves are found to be nearly linear, where the ΔH and ΔS values can be estimated by the slopes and intercepts of the line. The ΔH and ΔS values of Mg90, Mg85 and Mg80 are calculated to be -74.4, -72.1, -73.0 kJ/mol and -128.2, -123.2, -126.8 J/(mol·K), respectively. It is found that both the ΔH and ΔS values initially decrease and then increase with increasing Ni content. We can  see that the ΔH for the alloys is slightly lower than -78.6 kJ/mol of pure Mg [25,26], -82.1 kJ/mol of the Mg-Ni-La composite powders (Mg:Ni:La=85:10:5 in mass ratio) [29], and -76.12 kJ/mol of PrMg₁₁Ni [30], and approximates -74.0 kJ/mol of Mg-5Ni-3Ni (at.%) [31]. This indicates that the thermodynamic properties of the alloys initially increase and then decrease with increasing Ni content in this range, which means that alloying enhances the thermodynamic properties. The excellent performance is mostly due to the proper mixing ratio, the microstructure of the alloy, and the presence of the rare earth hydride.

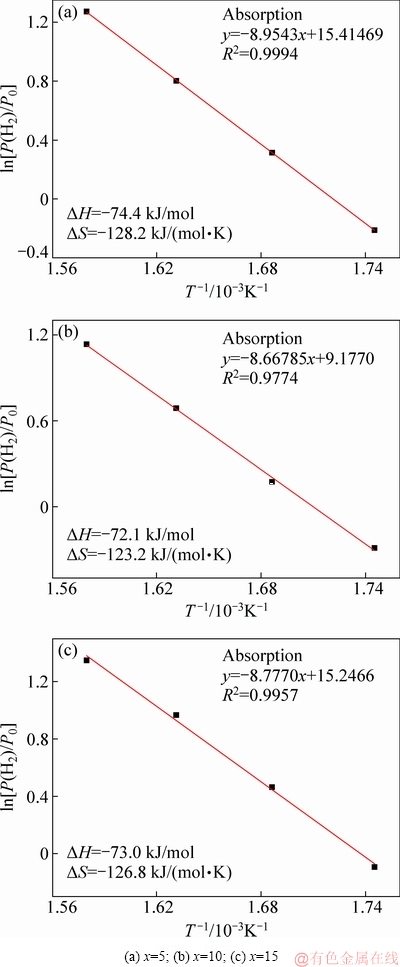

Fig. 9 van’t Hoff plots of La₅Mg_95-xNi_x (x=5, 10, 15) alloys measured at different temperatures

4 Conclusions

(1) The as-cast Mg90, Mg85 and Mg80 alloys are all composed of La₂Mg₁₇ as the main phase, Mg₂Ni, La₂Ni₃ and Mg second phases, whereas LaMg₂ is only found in Mg90 and Mg85 alloys. The amount of Mg₂Ni increases as the amount of Mg decreases with increasing Ni content. The alloys after hydriding are all composed of MgH₂, Mg₂NiH₄ and the rare earth hydride LaH₃, whereas those after dehydriding are all composed of Mg₂Ni, Mg and rare earth hydride LaH₃. We can infer that the reactions that occur during hydrogen absorption and desorption are Mg+H₂MgH₂ and Mg₂Ni+H₂Mg₂NiH₄, respectively.

(2) The increased Ni content remarkably improves the hydrogen storage kinetic performance of the alloys but reduces their hydrogen absorption/desorption capacity. The Mg80 alloy shows the lowest E_a value of 57.7 kJ/mol and the highest hydrogen absorption/ desorption rate.

(3) The thermodynamic properties are initially improved and then degraded with increasing Ni content. These changes are caused by the proper mixing ratio, the microstructure of the alloy, and the presence of the rare earth hydride. The Mg85 alloy is proven to have the best thermodynamic properties with ΔH of -72.1 kJ/mol and ΔS of -123.2 J/(mol·K).

References

[1] DONG Bao-xiang, GAO Jing-jing, TENG Yun-lei, TIAN Hui, WANG Long-zheng. A novel hydrogen storage system of KLi₃(NH₂)₄-4LiH with superior cycling stability [J]. International Journal of Hydrogen Energy, 2016, 41: 5371-5377.

[2] ZHANG Yang-huan, ZHANG Wei, SONG Xi-ping, ZHANG Pei-long, ZHU Yong-guo, QI Yan. Effects of spinning rate on structures and electrochemical hydrogen storage performances of RE-Mg-Ni-Mn-based AB₂-type alloys [J]. Transactions of Nonferrous Metals Society of China, 2016, 26: 3219-3231.

[3] Iskender M, AtiS M. Boron-doped hydrogenated Al3 clusters: A material for hydrogen storage [J]. Journal of Alloys & Compounds, 2016, 667: 275-281.

[4] Cappillino P J, Lavernia E J, Ong M D, YANG N Y. Plastic deformation and hysteresis for hydrogen storage in Pd-Rh alloys [J]. Journal of Alloys & Compounds, 2014, 586: 59-65.

[5] WU Zhen, ZHANG Zao-xiao, YANG Fu-sheng, FENG Peng-hui, WANG Yu-qi. Hydrogen storage properties and mechanisms of magnesium-based alloys with mesoporous surface [J]. International Journal of Hydrogen Energy, 2016, 41: 2771-2780.

[6] ANIK M, KARANFIL F, KüCüKDEVECI N. Development of the high-performance magnesium-based hydrogen storage alloy [J]. International Journal of Hydrogen Energy, 2012, 37: 299-308.

[7] ZHANG Yang-huan, HAN Zhong-gang, YUAN Ze-ming, YANG Tai, QI Yan, ZHAO Dong-liang. Electrochemical properties of nanocrystalline and amorphous Mg-Y-Ni alloys applied to Ni-MH battery [J]. Transactions of Nonferrous Metals Society of China, 2015, 25: 3736-3746.

[8] JAIN I P, LAL C, JAIN A. Hydrogen storage in Mg: A most promising material [J]. International Journal of Hydrogen Energy, 2010, 35: 5133-5144.

[9] OESTERREICHER H, BITTNER H. Hydride formation in La_1-xMg_xNi₂ [J]. Journal of the Less-Common Metals, 1980, 73: 339-344.

[10] KOHNO T, YOSHIDA H, KAWASHIMA F, INABA T, SAKAI I, KANDA M. Hydrogen storage properties of new ternary system alloys: La₂MgNi₉, La₅Mg₂Ni₂₃, La₃MgNi₁₄ [J]. Journal of Alloys and Compounds, 2000, 311: 5-7.

[11] LASS E A. Hydrogen storage measurements in novel Mg-based nanostructured alloys produced via rapid solidification and devitrification [J]. International Journal of Hydrogen Energy, 2011, 36: 10787-10796.

[12] XIE Li-shuai, LI Jin-shan, ZHANG Tie-bang, KOU Hong-chao. De/hydrogenation kinetics against air exposure and microstructure evolution during hydrogen absorption/desorption of Mg-Ni-Ce alloys [J]. Renewable Energy, 2017, 113: 6118-6126.

[13] ZHANG Yang-huan, YANG Tai, BU Wen-gang, CAI Ying, ZHANG Gong-fang, ZHAO Dong-liang. Effect of Nd content on electrochemical performances of nanocrystalline and amorphous (Mg₂₄Ni₁₀Cu₂)_100-xNd_x (x=0-20) alloys prepared by melt spinning [J]. Transactions of Nonferrous Metals Society of China, 2013, 23: 3668-3676.

[14] ZHANG Qing-an, JIANG Chang-jie, LIU Dong-dong. Comparative investigations on the hydrogenation characteristics and hydrogen storage kinetics of melt-spun Mg₁₀NiR (R=La, Nd and Sm) alloys [J]. International Journal of Hydrogen Energy, 2012, 37: 10709-10714.

[15] KALINICHENKA S, RONTZSCH L, RIEDL T, WEIβGARBER T, KIEBACK B. Hydrogen storage properties and microstructure of melt-spun Mg₉₀Ni₈RE₂ (RE=Y, Nd, Gd) [J]. International Journal of Hydrogen Energy, 2011, 36: 10808-10815.

[16] KALINICHENKA S, RONTZSCH L, RIEDL T,GEMMINGC T, WEIβGARBERT,KIEBACK B. Microstructure and hydrogen storage properties of melt-spun Mg-Cu-Ni-Y alloys [J]. International Journal of Hydrogen Energy, 2011, 36: 1592-1600.

[17] KALINICHENKA S, RONTZSCH L, BAEHTZ C, KIEBACK B. Hydrogen desorption kinetics of melt-spun and hydrogenated Mg₉₀Ni₁₀, and Mg₈₀Ni₁₀Y₁₀, using in situ synchrotron, X-ray diffraction and thermogravimetry [J]. Journal of Alloys & Compounds, 2010, 496: 608-613.

[18] HAO Gu, ZHU Yun-feng, LI Li-quan. Effect of La/Ni ratio on hydrogen storage properties of Mg-Ni-La system prepared by hydriding combustion synthesis followed by mechanical milling [J]. International Journal of Hydrogen Energy, 2008, 33: 2970-2974.

[19] LV Yu-jie, ZHANG Bao, WU Ying. Effect of Ni content on microstructural evolution and hydrogen storage properties of Mg-xNi-3La (x=5, 10, 15, 20 at.%) alloys [J]. Journal of Alloys & Compounds, 2015, 641: 176-180.

[20] ZHANG Yang-huan, LI Long-wen, FENG Dian-chen, GONG Peng-fei, SHANG Hong-wei, GUO Shi-hai. Hydrogen storage behavior of nanocrystalline and amorphous La-Mg-Ni-based LaMg₁₂-type alloys synthesized by mechanical milling [J]. Transactions of Nonferrous Metals Society of China, 2017, 27: 551-561.

[21] SPASSOV T, KOSTER U. Hydrogenation of amorphous and nanocrystalline Mg-based alloys [J]. Journal of Alloys & Compounds, 1999, 287: 243-250.

[22] YUAN Jiang-guang, XING Na, WU Ying. The effect of Mm content on microstructure and hydrogen storage properties of the as-cast Mg-10Ni-xMm (x=1, 2, 3 at.%) alloys [J]. International Journal of Hydrogen Energy, 2016, 42: 6118-6126.

[23] LIU Xiao-feng, ZHU Yun-feng, LI Li-quan. Hydrogen storage properties of Mg_100-xNi_x (x=5, 11.3, 20, 25) composites prepared by hydriding combustion synthesis followed by mechanical milling (HCS+MM) [J]. Intermetallics, 2007, 15: 1582-1588.

[24] ZHANG Yang-huan, YUAN Ze-ming, BU Wen-gang, HU Feng, CAI Ying, ZHAO Dong-liang. Hydrogen storage thermodynamics and dynamics of Nd-Mg-Ni-Based NdMg₁₂-type alloys synthesized by mechanical milling [J]. Acta Metallurgica Sinica (English Letters), 2016, 29: 1-10.

[25] YANG Tai, YUAN Ze-ming, BU Wen-gang, JIA Zhi-chao, QI Yan, ZHANG Yang-huan. Effect of elemental substitution on the structure and hydrogen storage properties of LaMgNi₄ alloy [J]. Materials & Design, 2016, 93: 46-52.

[26] WEST D R F. Ternary alloys—A comprehensive compendium of evaluated constitutional data and phase diagrams [M]. Stuttgart, VCH, 1995.

[27] STAMPFER J F Jr, HOLLEY C E, SUTTLE J F. The magnesium- hydrogen system 1-3 [J]. Journal of the American Chemical Society, 1960, 82: 3504-3508.

[28] VIGEHOLM B, KJOLLER J, LARSEN B. Magnesium for hydrogen storage [J]. Journal of the Less-Common Metals, 1980, 74: 205-211.

[29] ZOU Jian-xin, GUO Hao, ZENG Xiao-qin, ZHOU Si, CHEN Xi, DING Wen-jiang. Hydrogen storage properties of Mg-TM-La (TM=Ti, Fe, Ni) ternary composite powders prepared through arc plasma method [J]. International Journal of Hydrogen Energy, 2013, 38: 8852-8862.

[30] ZHANG Yang-huan, LI Ya-qin, SHANG Hong-wei, YUAN Ze-ming, CAI Ying, QI Yan, ZHAO Dong-liang. Hydrogen storage properties of nanocrystalline and amorphous Pr-Mg-Ni-based alloys synthesized by mechanical milling [J]. International Journal of Hydrogen Energy, 2017, 42: 22379-22387.

[31] ZHANG Bao, LV Yu-jie, YUAN Jiang-guang, WU Ying. Effects of microstructure on the hydrogen storage properties of the melt-spun Mg-5Ni-3La (at.%) alloys [J]. Journal of Alloys & Compounds, 2017, 702: 126-131.

La₅Mg_95-xNi_x (x=5、10、15)合金的显微组织、储氢热力学和动力学性能

李振阳^1,2，李胜利¹，袁泽明^2,3，张羊换^2,3，祁 焱²

1. 山东大学 材料科学与工程学院，济南 250061；

2. 钢铁研究总院 功能材料研究所，北京 100081；

3. 内蒙古科技大学 内蒙古自治区白云鄂博矿多金属资源综合利用重点实验室，包头 014010

摘  要：研究Ni含量对La₅Mg_95-xNi_x(x=5、10、15)三元合金的显微组织、热力学和动力学性能的影响。采用XRD和SEM探索合金的相和组织的变化情况，采用自动Sievert 设备测试合金吸放氢性能曲线和PCI曲线。研究表明，随着Ni含量的增加，合金的储氢动力学性能得到提高，但是合金的储氢容量有所下降。三种成分的合金中, La₅Mg₈₀Ni₁₅合金表现出最低的放氢活化能以及最高的吸放氢速率, 其放氢活化能为57.7 kJ/mol。通过测定合金PCI曲线和van’t Hoff方程发现, 随着Ni含量的增加, 合金的热力学性能先提高后降低, 其中La₅Mg₈₅Ni₁₀表现出最优异的热力学性能, 其焓和熵的数值分别为-72.1 kJ/mol和-123.2 J/(mol·K)。

关键词：储氢；镁基合金；热力学性能；动力学性能；Ni含量

(Edited by Bing YANG)
