微量Zr和Sc对Al-Mg-Si-Cu-Cr-V合金显微组织和力学性能的影响

来源期刊：中国有色金属学报(英文版)2013年第7期

论文作者：蒙毅赵志浩崔建忠

文章页码：1882 - 1889

关键词：Al-Mg-Si-Cu合金；再结晶；显微组织；力学性能

Key words：Al-Mg-Si-Cu alloy; recrystallization; microstructure; mechanical property

摘要：研究微量Zr和Sc对Al-Mg-Si-Cu-Cr-V合金显微组织与力学性能的影响。结果表明：微量元素Zr和Sc对铸态晶粒细化、合金挤压态强度的提高以及对时效态合金中大角度晶界迁移的阻碍作用，由大到小依次为：Al₃Sc>Al₃(Zr,Sc)>Al₃Zr。它们均无法阻止再结晶形核，但对于时效态合金，Al₃(Zr,Sc)相对于位错运动的阻碍比Al₃Sc相更为明显。与单一添加0.15% Sc合金的时效态进行比较，复合添加Zr和Sc仅会轻微降低合金的强度而对塑性没有影响。综合考虑合金生产成本以及对力学性能的轻微损害等因素，在Al-Mg-Si-Cu-Cr-V合金中复合添加0.13% Zr和0.03% Sc是替代0.15% Sc的最佳方式。

Abstract: The effects of minor contents of Zr and Sc on the microstructures and mechanical properties of Al-Mg-Si-Cu-Cr-V alloy were studied. The results show that the effects of minor Zr and Sc on the as-cast grain refinement in the ingots, the improvement in the strength of the as-extruded alloys and the restriction of high angle grain boundaries in the aged alloys can be sorted as Al₃Sc>Al₃(Zr,Sc)>Al₃Zr. None of them could stop the nucleation of recrystallization, but Al₃(Zr,Sc) phase is a more effective inhibitor of dislocation movement compared to Al₃Sc in the aged alloys. Compared with the mechanical properties of the aged alloy added only 0.15% Sc, the joint addition of Zr and Sc to the alloy leads to a very slight decrease in strength with even no cost of ductility. Taking both the production cost and the little bad influence on mechanical properties into consideration, an optimal content of Zr and Sc in the Al-Mg-Si-Cu-Cr-V alloy to substitute 0.15% Sc is 0.13% Zr+0.03% Sc.

Trans. Nonferrous Met. Soc. China 23(2013) 1882-1889

Effect of minor Zr and Sc on microstructures and mechanical properties of Al-Mg-Si-Cu-Cr-V alloys

Yi MENG, Zhi-hao ZHAO, Jian-zhong CUI

Key Laboratory of Electromagnetic Processing of Materials of Ministry of Education, Northeastern University, Shenyang 110819, China

Received 11 June 2012; accepted 14 May 2013

Key words: Al-Mg-Si-Cu alloy; recrystallization; microstructure; mechanical property

1 Introduction

6xxx aluminum alloys whose main strengthening phases are Mg₂Si are widely used in automotive and construction industries due to the excellent plasticity, favorable corrosion resistance, good weld ability and low scrap compatibility [1-3]. A new Al-Mg-Si-Cu-Cr-V alloy has been investigated, both its ingot-T6 and extrusion-T6 treated alloys have high strength and good plasticity [4,5]. However, based on previous works, complete recrystallization is present in the alloy after hot extrusion or the subsequent solid solution treatment.

It is well known [6] that most of the transition elements increase the recrystallization temperature of the aluminum alloys. The influence degrees on the increase of the recrystallization temperatures are Zr>Ti>Mo> Nb>Cr>Mn>V. Additionally, the rare earth element Sc also belongs to the transition element, and the effect of Sc on the increase of recrystallization temperature is larger than that of any other rare earth elements and transition elements in the aluminum alloys. With the help of Sc addition, the recrystallization temperatures of the aluminum alloys are even higher than their solidus temperatures. So Sc can be considered the optimal anti-recrystallization element in the aluminum alloys. However, due to the high price of Sc element and its few reserves in the earth, its applications in the aluminum alloys are limited. In order to decrease the cost of aluminum alloys, Zr is used to substitute Sc partially. When both Zr and Sc are added to the aluminum alloys, the eutectic composition of Al-Al₃Sc is reduced, and the Al₃Sc_1-xZr_x particles are formed by means of the substitution of Sc for Zr. The Al₃Sc_1-xZr_x particles have all of the favorable characteristics of Al₃Sc particles and higher thermal stability [7,8]. Many literatures [9-11] reported the effects of minor Zr and Sc on the microstructures and mechanical properties of Al-Mg alloys and Al-Zn-Mg-Cu alloys, but few researches investigated those on the Al-Mg-Si-Cu alloys.

In this study, the effects of minor Zr and Sc on the microstructures and mechanical properties of the Al-Mg-Si-Cu-Cr-V alloy were investigated. An optimal content of Zr and Sc in the Al-Mg-Si- Cu-Cr-V alloy was obtained to improve the strength with little cost of ductility. Both the existence forms and strengthening mechanisms were discussed. As a result, a low cost Al-Mg-Si-Cu-Cr-V alloy with unique joint addition of Zr and Sc was identified.

2 Experimental

The nominal compositions of the alloys used in this study were listed in Table 1. Si, Sc and V were introduced by means of Al-23Si, Al-2Sc and Al-4V (mass fraction, %) master alloys, respectively, Cr and Zr were put into the alloy in the form of chromium tablet and zirconium tablet (contain 63% Cr and 85% Zr respectively including burning loss). Other elements were introduced by relevant commercial pure metals. The contents of (Zr+Sc) added in each alloy are almost the same (about 0.15%-0.16%) to eliminate the effect of different amounts of (Zr+Sc) on the microstructures and mechanical properties of the new Al-Mg-Si-Cu alloy. The alloy was melted in a graphite crucible inside a medium frequency induction furnace. Ingots with diameter of 60 mm were prepared with water-cooling copper mold at 750 °C after the melt was degassed, slag removed and refined. Then they were machined into ingots with dimensions of d46 mm×90 mm after homogenization for hot extrusion. At last, the bars with diameter of 12 mm were produced at 430 °C by means of backward extrusion. The heat treatment and hot extrusion process were illustrated in Fig. 1. The mechanical tests for as-extruded alloys and aged alloys were conducted at room temperature. At least three tensile samples for each case were tested by CMT5105 universal test machine to obtain the mechanical properties at a constant ram velocity of 2 mm/min. The microstructures were observed by optical microscope, scanning electron microscope (SEM), transmission electron microscope (TEM) with energy dispersive X-ray spectrometer (EDS).

Table 1 Chemical composition of text alloys

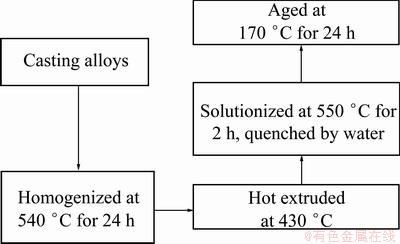

Fig. 1 Heat treatment and extrusion process for alloys

3 Results and discussion

3.1 Effects of Zr and Sc on microstructure of ingots

Figure 2 shows the as-cast microstructures of the Al-Mg-Si-Cu-Cr-V alloys with different additions of Zr and Sc elements. Figure 2(a) indicates that the as-cast microstructure of the base alloy is characterized by coarse dendritic grains. Figure 2(b) illustrates that the as-cast grains are refined to some extent when the alloy is added only 0.15% Zr. Both the as-cast grain sizes of alloys C and D are similar to that of alloy B, as shown in Figs. 2(c) and (d). Figure 2(e) shows that a further reduction in the as-cast grain size is carried out in alloy E. While the finest as-cast grains are present in the microstructure of the alloy with only 0.15% Sc addition as shown in Fig. 2(f), almost all of them become into equiaxed grains. It means that both Zr and Sc have the ability to refine the as-cast grains, and the effect of Sc on the as-cast grain refinement is much larger than that of Zr. The as-cast grain size of the alloy decreases with the increase of Sc content. The joint addition of Zr and Sc leads to the formation of Al₃(Zr, Sc) particles. When the ratio of Zr to Sc is 4:1 or 2:1, the slight difference of Zr content and the small amounts of Al₃(Zr, Sc) particles result in the slight grain refinement of the as-cast alloy, compared with alloy B. But when the Sc content reaches up to 0.1%, the Al₃Sc particles lead to an obvious as-cast grain refinement. So the impact of these particles on the as-cast grain refinement of the alloy is Al₃Sc>Al₃(Zr, Sc)>Al₃Zr. The reason is that there is a good coherent interface between the fine Al₃Sc particles and α(Al) during solidification, so these Al₃Sc particles promote the non-homogeneous nucleation and as a result, the grains are refined [12]. The Al₃(Zr,Sc) particle has a lower coherency level than the Al₃Sc particle, and Al₃Zr particle has the lowest coherency level among them.

3.2 Effect of Zr and Sc on microstructure of as- extruded alloys

Figure 3 shows the micrographs of the as-extruded alloys in the longitudinal direction. The complete fibrous structures are visible in all of these extrusions due to the short extrusion time, low extrusion temperature and water quench after being extruded. As a result, there is no enough time for the extrusions to carry out the dynamic recrystallization and metadynamic recrystallization, only the as-deformed microstructures are present, as shown in Fig. 3.

Fig. 2 OM images of as-cast alloys

Figure 4 shows the SEM image of the as-extruded alloy C in the longitudinal direction. The distribution of Zr in the as-extruded microstructure shown in Fig. 4(a) is illustrated in Fig. 4(b). It is obvious that some Zr containing phases with elliptical shape exist in the alloy. The EDS analysis results are shown in Figs. 4(c) and (d). Figure 4(c) indicates that Zr exists in the as-extruded alloy in the form of Al₃Zr particles with elliptical morphology, and Fig. 4(d) shows that some Zr atoms are substituted by Sc atoms to form elliptical Al₃(Zr,Sc) phases.

3.3 Effect of Zr and Sc on microstructure of aged alloys

Figure 5 shows the micrographs of the aged alloys in longitudinal direction. The static recrystallization is visible in all the aged alloys. It is indicated that none of the Al₃Zr particles, Al₃Sc particles and Al₃(Zr,Sc) particles can stop the nucleation of recrystallization in the aged alloys, but some of these particles can inhibit the growth of recrystallization by hindering the migration of grain boundaries to a certain degree. Figure 5(a) shows that the recrystallized grains of aged alloy A with long belt shape grow largest compared with those of other aged alloys B-F. Slight grain refinement in the aged alloy B is observed, as shown in Fig. 5(b), due to the restriction of high angle grain boundaries movement caused by Al₃Zr particles. Further reduction of the recrystallized grain size is visible in the aged alloy C. So it is evident from Fig. 5(c) that the effect of Al₃(Zr,Sc) particles on the recrystallized grain refinement is larger than that of Al₃Zr particles. Based on Figs. 5(d)-(f), the grain size reduces with the increase of Sc content in the alloys and the finest grains are present in the aged alloy F. So there is no doubt that Al₃Sc particles have the largest influence on the inhibition of recrystallization. The coherency level of the additions to the aluminum matrix is as below: Al₃Sc>Al₃(Zr,Sc)>Al₃Zr.

Fig. 3 OM images of as-extruded alloys in longitudinal direction

The TEM micrographs and EDS results of aged alloys B, C and F are shown in Fig. 6 and Table 2, respectively. Figures 6(a) and (c) show that both the Al₃Zr particle and Al₃Sc particle are present with the elliptical morphologies in the aged alloys B and F respectively, while Al₃(Zr,Sc) particle exists in the aged alloy C in the form of spherical shape and its mean diameter is about 48 nm. The characteristics of Al₃Zr, Al₃Sc and Al₃(Zr,Sc) particles to the aluminum matrix are similar to each other [7,13-15]. There is coherent interface between these particles and aluminum solid solution, and these particles which homogenously distribute throughout the matrix can impede the movement of dislocations strongly, make the submicrostructure of extrusions stable, block the sub-boundaries to develop into larger angle grain boundaries, and hinder the formation of grain boundaries and their migration. Although these particles have the similar influence on the microstructures of aged alloys, it can be concluded from Fig. 5 that the effects on the restriction of recrystallization behaviors in the aged alloys are quite different. The impacts on inhibiting recrystallization can be ordered as Al₃Sc>Al₃(Zr,Sc)> Al₃Zr.

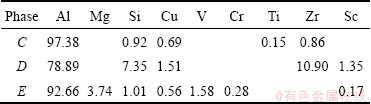

Table 2 EDS results of phases indicated by arrows in Fig. 6 (molar fraction, %)

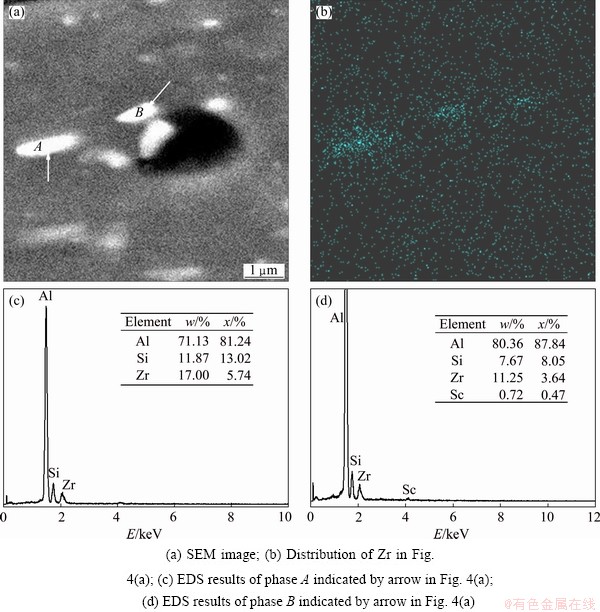

Fig. 4 SEM image and EDS results of as-extruded alloy C in longitudinal direction

3.4 Effect of Zr and Sc on mechanical properties of extrusions

Figure 7 illustrates the mechanical properties of the as-extruded alloys and aged alloys, respectively. In Fig. 7 (a), the as-extruded alloy F has the highest strength but the lowest elongation. The ultimate tensile strength is 232 MPa, yield stress is 129 MPa and elongation is 20.65%. The ultimate tensile strength of the as-extruded alloys increases from 213 to 232 MPa with increasing Sc contents, while the elongation decreases from 24.2% to 20.65% with the increase of Sc contents, though the Zr content reduces at the same time. The increasing rate of ultimate tensile strength remains constant at first and increases obviously when the Sc content is more than 0.03% in the as-extruded alloys, but the elongation declines continuously. Based on Fig. 3, the work hardening can not be ignored in all the as-extruded alloys due to the absence of recrystallization. But the reason why different Zr and Sc contents lead to various mechanical properties of as-extruded alloys is that the precipitation-hardening of Al₃Zr, Al₃(Zr, Sc) and Al₃Sc phases are quite different for the as-extruded alloys. Their strengthening effects on the as-extruded alloys are Al₃Sc>Al₃(Zr,Sc)>Al₃Zr, so the reduction of Al₃Zr phases does not result in an obvious decrease in strength but the increase of Al₃(Zr,Sc) and Al₃Sc phases contents would improve the strength of as-extruded alloys significantly.

Figure 7(b) shows the mechanical properties of aged alloys. The aged alloy F still has the highest ultimate tensile strength and yield stress of 432 and 369 MPa respectively with a relatively high elongation of 16%, while those of the aged alloy A are 414 MPa, 355 MPa and 16.1%, respectively. There are likely two reasons, firstly, the dispersion distribution of fine Al₃Sc phases pins the movement of dislocations sharply, and thus enhances shear stress which is needed by dislocation sliding, and then strengthens the aged alloy [16]. Secondly, Al₃Sc phase aids in the restriction of high angle grain boundaries movement (as shown in Fig. 5) and as a result, the recrystallized grain refinement is visible. Therefore, the addition of 0.15% Sc to the new aged Al-Mg-Si-Cu alloy leads to an improvement in strength compared with aged alloy A, and with no cost of ductility. Although the elongations of aged alloys C (14.6%), D (15.1%) and E (16.2%) are a little different from that of aged alloy F, the strengths are almost the same with each other (range from 429 to 431 MPa). So it can be concluded that the effect of Al₃Sc phase on the improvement of the strength of aged alloys is no more higher than that of Al₃(Zr,Sc) phase. YIN et al [17] reported that the shape of Al₃(Zr, Sc) phase was coffee bean-like in the as-hot deformed aluminum alloy. But in this work, the shape of Al₃(Zr, Sc) phase changes into spherical morphology (as shown in Fig. 6(c)) in the aged alloy C. It is quite different from the elliptical shapes of Al₃Sc phase in the aged alloy F, and thus leads to more efficient inhibition of dislocation movement compared with the Al₃Sc phase. However, Al₃Sc phase has a higher coherency level with aluminum matrix than the Al₃(Zr,Sc) phase. So the complex combination of the shape, coherency level with aluminum matrix and grain refinement result in the similar mechanical properties among alloys C, D, E and F. It is well known that the price of Sc is even higher than that of gold. So it is vital to add Sc into the Al-Mg-Si-Cu-Cr-V alloy as few as possible to reduce its production cost. It is a good way to apply Zr to substitute part of Sc addition into this alloy and with little cost of strength and ductility. Based on the results and discussions above, the proportion of 0.13% Zr and 0.03% Sc is the most acceptable substitution for 0.15% Sc in the alloy due to the lowest production cost and high-enough mechanical properties.

Fig. 5 OM images of aged alloys in longitudinal direction

Fig. 6 TEM images of aged alloys

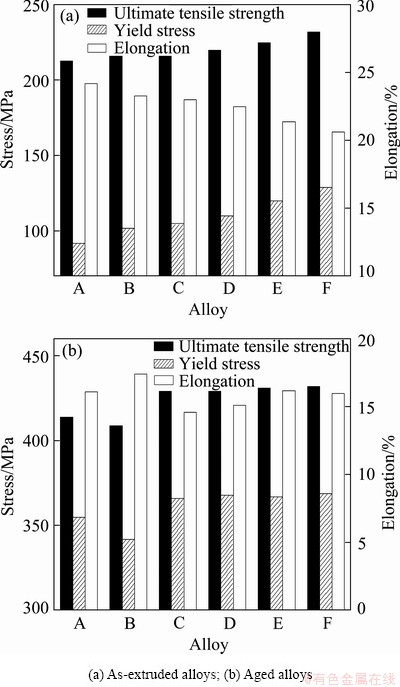

Fig. 7 Tensile properties of as-extruded alloys and aged alloys

4 Conclusions

1) Both minor Zr and Sc lead to the grain refinement in the as-cast Al-Mg-Si-Cu-Cr-V alloys, and the effects of Zr-containing phases and Sc- containing phases on the as-cast grain refinement are Al₃Sc>Al₃(Zr,Sc)>Al₃Zr.

2) The effects of Al₃Zr, Al₃Sc and Al₃(Zr,Sc) phases on the restriction of dislocation movement in the as-extruded Al-Mg-Si-Cu-Cr-V alloys are Al₃Sc> Al₃(Zr,Sc)>Al₃Zr.

3) None of the particles including Al₃Zr, Al₃Sc and Al₃(Zr,Sc) phases can restrain the recrystallization for the Al-Mg-Si-Cu-Cr-V extrusions after solid solution treatment, but they can slow down the growth of the recrystallized grains in various degrees. The effect of the inhibition sorted in descending order is proved as Al₃Sc>Al₃(Zr,Sc)>Al₃Zr. However, Al₃(Zr,Sc) phases pin the movement of dislocation more efficiently in the aged alloy due to the varying shapes.

4) There is little difference between the mechanical properties of the aged Al-Mg-Si-Cu-Cr-V alloys with the joint addition of 0.15% (Zr+Sc) and the one with only 0.15% Sc addition. Considering the production cost, an optimal content of Zr and Sc in the alloy is 0.13% Zr and 0.03% Sc.
