稀土铈对含铅杂铜显微组织和力学性能的影响

来源期刊：中国有色金属学报(英文版)2020年第6期

论文作者：李海红刘晓李杨张士宏陈岩王松伟刘劲松吴金虎

文章页码：1574 - 1581

关键词：Ce添加；含Pb杂铜；CePb₃第二相颗粒；晶格错配度；晶粒细化；力学性能

Key words：Ce addition; impure copper containing Pb; CePb₃ second phase particle; lattice misfit; grain refinement; mechanical property

摘要：采用光学显微镜、扫描电镜、电子探针、透射电镜和拉伸实验研究稀土Ce对含Pb杂铜显微组织和力学性能的影响。透射电镜和能谱分析表明，Ce与Pb形成球状CePb₃颗粒，粒径约3.6 μm，均匀分布在铜基体中。CePb₃与铜基体的错配度较低(约4.62%)，可以作为有效成核质点，有利于晶粒细化。Pb存在于晶界会恶化铜的力学性能，Cu-0.1Pb的抗拉强度和伸长率分别比纯铜降低43.1% 和56.7%。Ce加入能净化铜的晶界，形成CePb₃第二相颗粒，细化晶粒尺寸，提高铜的力学性能。与Cu-0.1Pb相比，Cu-0.1Pb-0.3Ce的抗拉强度(179MPa)和伸长率(38.5%)分别提高117.6%和151.6%。

Abstract: The effects of rare earth Ce on the microstructure and mechanical properties of impure copper containing Pb were investigated using OM, SEM, EPMA, TEM and tensile testing. TEM and EDS analysis reveal that spherical CePb₃ particles form after Ce addition. CePb₃ particles, with average size of ~3.6 μm, homogenously distribute in the Cu matrix. Due to small lattice misfit (~4.62%) with Cu matrix, CePb₃ particles can act as effective nucleation sites beneficial to the grain refinement. Pb at grain boundaries seriously deteriorates the mechanical properties of Cu. The tensile strength and the elongation of Cu-0.1Pb are decreased by 43.1% and 56.7% compared with those of pure copper, respectively. Ce can purify grain boundaries, cause the precipitation of CePb₃ particles and refine grain sizes, which contribute to significant improvement of the mechanical properties of Cu. Compared with Cu-0.1Pb, the tensile strength (179 MPa) and the elongation (38.5%) of Cu-0.1Pb-0.3Ce are increased by 117.6% and 151.6%, respectively.

Trans. Nonferrous Met. Soc. China 30(2020) 1574-1581

Effects of rare earth Ce addition on microstructure and mechanical properties of impure copper containing Pb

Hai-hong LI¹, Xiao LIU¹, Yang LI¹, Shi-hong ZHANG², Yan CHEN², Song-wei WANG², Jin-song LIU², Jin-hu WU³

1. College of Nuclear Equipment and Nuclear Engineering, Yantai University, Yantai 264005, China;

2. Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China;

3. College of Metallurgy and Energy, North China University of Science and Technology, Tangshan 063210, China

Received 2 September 2019; accepted 12 April 2020

Key words: Ce addition; impure copper containing Pb; CePb₃ second phase particle; lattice misfit; grain refinement; mechanical property

1 Introduction

With the rapid development of copper processing industry worldwide, the shortage of raw copper materials is becoming increasingly critical [1,2]. High efficient and reasonable utilization of impure copper plays a vital role in addressing the scarcity of copper resources [3-5]. However, the mechanical properties and the processability of copper products are deteriorated due to the existence of impurity elements, which limits the application of impure copper [6-8]. Pb, as a beneficial alloying element, can improve the wear and corrosion resistance of copper alloys. Pb is a fairly common impure element in copper recycling. Due to the low solubility of Pb in Cu and a lower melting point than that of Cu, Pb in impure copper mainly distributes on grain boundary, resulting in the decreasing of the binding forces of grain boundaries [9] and the worsening of mechanical properties.

Rare earth (RE) elements present active chemical properties and can react with the impurities in copper by forming RE-rich compounds with high melting points [10-13]. Therefore, RE can change the existence forms of the impurities in copper and improve the properties of copper remarkably. LIN et al [14] found that RE addition decreased the contents of O, Pb, Bi and Sn in impure copper due to the formation of RE-rich compounds with low densities and high melting points. DUAN et al [15] also reported that Ce reduced the contents of the impurities in impure copper and improved the elongation of copper lines. CHEN et al [16] and ZHANG et al [17] revealed that RE removed the impurities in copper and refined the grain size. LI et al [18] stated that rare earth Ce could prevent the segregation of Pb in high-lead bronze by forming some Ce-rich compounds. Also, due to the strengthening and grain refinement effects, RE-rich second phases can also improve the tensile properties and tribological properties of copper alloys [19,20]. It should be mentioned that most of the previous studies were focused on the influence of RE on pure copper and copper alloys. However, the role of RE with a single impurity (Pb) is still unclear so far [21,22]. Especially, the distribution of RE-rich compounds and the refinement mechanism are poorly understood. As one of important light RE elements, Ce has very active chemical properties [23,24]. Here, the effects of Ce on microstructures and mechanical properties of impure copper containing 0.1 wt.% Pb are investigated, and the actions between Ce and Pb are also discussed. The obtained results in this research may provide a theoretical basis for the direct reuse of impure copper.

2 Experimental

In order to reduce the interference of other elements, raw materials of electrolytic copper with a purity of 99.97 wt.%, pure Ce with a purity of 99 wt.% and pure Pb with a purity of 99.99 wt.% were employed. Electrolytic copper was first melted completely in a graphite crucible by a vacuum induction furnace under an argon atmosphere. And then, pure Pb enwrapped by pure copper foils was added into the copper melt at 1180 °C. After cooling, the impure copper ingot containing Pb was cut and melted secondly. Pure Ce enwrapped by pure copper foils was added to the melt. The melt was stirred and isothermally held for 10 min to ensure that Ce was dissolved thoroughly. At 1180 °C, the melt was poured into an iron mould preheated to ~300 °C. The ingot was cooled to ~800 °C at a cooling rate of ~60 °C/s and then cooled to room temperature naturally.

The practical contents of Pb and Ce in copper were determined using an Optima 7300DV inductively coupled plasma-atomic emission spectrometry (ICP-AES). Chemical compositions of the alloys are listed in Table 1. Under vacuum circumstance, Ce still had a 10% burning loss for oxidation. Tensile tests were performed by an INSTRON 5582 electronic universal testing machine at an ambient temperature according to GB/T228B using sheet specimens, and the cross- head speed was 1 mm/min. The microstructures were observed by a ZMEF4A optical microscope (OM) before and after the etching in a solution of ferric nitrate (4 g) and water (100 mL). The grain size was measured by the intercept method using an image-pro plus software. The existence forms of Pb, the distribution of second phases and the fractography were examined by an SSX-550 scanning electron microscopy (SEM). The crystal structure of the second phases was characterized by a JEM-2100F transmission electron microscopy (TEM).

3 Results and discussion

3.1 Existence forms of Pb and Ce in copper

Figure 1 shows the microstructure and energy dispersive spectrum (EDS) of Cu-0.1Pb. As can be seen from Fig. 1(a), there are some small black particles on the grain boundaries of copper matrix. A large number of white particles exist on grain boundaries (Fig. 1(b)). These particles present short rod morphology at high magnification, and the length is ~2 μm, as shown in Fig. 1(c). EDS analysis verifies that the content of Pb in these particles is 89.1 wt.% (Fig. 1(d)).

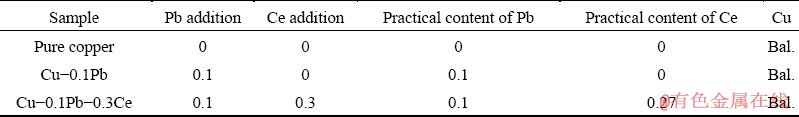

Table 1 Chemical compositions of impure copper containing Pb before and after Ce addition (wt.%)

Fig. 1 Microstructure and EDS of Cu-0.1Pb

Pb is an impurity element with a low melting point in copper. A small amount of Pb can agglomerate near the grain boundaries during the solidification process. According to Cu-Pb binary phase diagram [25], there is a eutectic transformation at 326 °C. Pb-rich phases grow along grain boundaries and gather at the grain boundaries finally, indicating the divorced eutectic structure. Furthermore, the equilibrium partition coefficient (k₀) of Pb in Cu is less than 1 [26]. Pb segregates between the liquid phase and the solid-liquid interface and solidifies on grain boundaries at last. The segregation of Pb element on grain boundaries can deteriorate the mechanical properties of copper seriously.

Figure 2 shows the microstructure and EDS of Cu-0.1Pb-0.3Ce. From Figs. 2(a, b), the number of small particles on grain boundaries decreases obviously after Ce addition. Many spherical second phase particles with a size of ~3.6 μm are formed in the interior of the grains. The wettability of these particles and the copper matrix is poor, leading to formation of the spherical profile (Fig. 2(c)). These second phase particles are Ce, Pb compounds. The molar ratio of Pb to Ce is about 3:1 (Fig. 2(d)). Figure 3 shows the EPMA result of the second phase. From Fig. 3, it can be seen that elements of Ce and Pb distribute uniformly, and the content of Cu is low. Figure 4 shows the TEM image and selected area electron diffraction pattern of the second phase. TEM combined with EDS analysis demonstrate that the structure of second phase particle is CePb₃ with AuCu₃-type fcc structure and space group of pm3m. The structure parameter is a=0.4876 nm [27].

Ce addition changes the existence forms of Pb. Pb exists in the form of CePb₃ particles, which distribute homogeneously in Cu matrix instead of at grain boundary. Ce has very active chemical properties, and there are strong interactions between atoms of Ce and Pb. Therefore, Ce reacts with Pb rapidly, leading to the formation of CePb₃. The melting point of CePb₃ is about 1170 °C, which is higher than that of Cu (1083 °C) [27]. CePb₃ solidifies before copper during the cooling process and exists in the interior of the grains.

3.2 Effects of Ce on microstructure of impure copper containing Pb

Fig. 2 Microstructure and EDS of Cu-0.1Pb-0.3Ce

Fig. 3 Area distributions of elements with electron probe microanalysis (EPMA) for second phase

Fig. 4 TEM image (a) and selected area electron diffraction pattern (b) of second phase in Cu-0.1Pb-0.3Ce

Figure 5 shows the optical micrographs of impure copper containing Pb before and after Ce addition. It is clear that pure copper has a large columnar structure, and the average columnar crystal spacing is ~1092.2 μm (Fig. 5(a)). Addition of 0.1 wt.% Pb refines the columnar structure of copper, and the average columnar crystal spacing of Cu-0.1Pb is approximately 306.9 μm (Fig. 5(b)). Cu-0.1Pb-0.3Ce has small equiaxed grains, with a size of ~137.1 μm, which shows that Ce addition has an obvious refining effect on the grain size (Fig. 5(c)).

Fig. 5 Optical micrographs of impure copper containing Pb before and after Ce addition

Pb has a lower melting point (327.6 °C) than Cu. Pb agglomerates into the front of the liquid phase of the solid-liquid interface during solidification process. As a consequence, the degree of constitutional undercooling and the driving force of nucleation are increased, and the grain size of Cu-0.1Pb is refined. Ce addition leads to the formation of CePb₃. CePb₃ particles as heterogeneous nucleation centers refine the grain size of Cu-0.1Pb-0.3Ce. According to the theory of heterogeneous nucleation [28,29], two factors affect the second phase induced heterogeneous nucleation. One factor is that the melting point of the second phase is higher than that of the matrix. CePb₃ phase has a higher melting point than Cu. The other factor is that the lattice misfit between the second phase and the matrix is less than 6%. The calculation equation of the lattice misfit between CePb₃ and Cu is as follows [30,31]:

(1)

where δ is the lattice misfit; (hkl)_CePb₃ and (hkl)_Cu are the low-index surfaces of CePb₃and Cu, respectively; [uvw]_CePb₃and [uvw]_Cuare thelow-index orientations of CePb₃and Cu, respectively; d[uvw]_CePb₃ and d[uvw]_Cu are the atomic distances of thelow-index orientations of CePb₃and Cu, respectively; θ is the angle of thelow-index orientations between CePb₃and Cu. Figure 6 shows the misfitting relationship between (100) of Cu and (110) of CePb₃.The value of d(100)_Cu is 0.3615 nm and the value of d(110)_CePb₃is about 0.3448 nm [32]. θ value between [1/2 1/2 0] orientation of CePb₃ and [100] orientation of Cu is 0°. Therefore, the misfit between [1/2 1/2 0] orientation of CePb₃ and [100] orientation of Cu is ~4.62%, which agrees well with the previous experimental results [18,33]. CePb₃second phase particles can act as effective heterogeneous nucleation centers and refine the grain size.

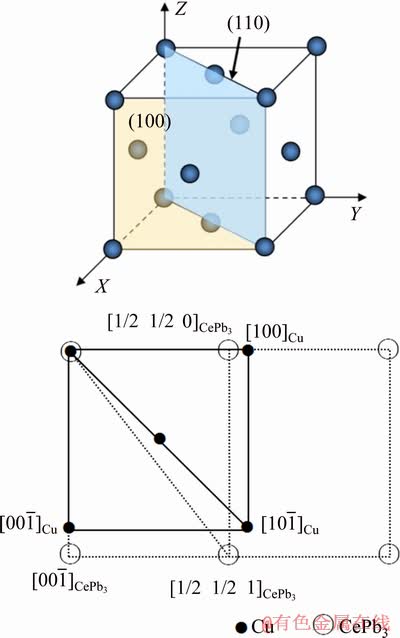

Fig. 6 Misfitting relationship between (100) of Cu and (110) of CePb₃

3.3 Effects of Ce on mechanical properties of impure copper containing Pb

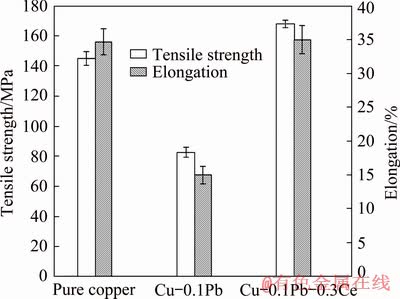

Fig. 7 Effects of Ce on mechanical properties of impure copper containing Pb

Figure 7 shows the effects of Ce on the mechanical properties of impure copper containing Pb. The existence of Pb deteriorates the mechanical properties of copper remarkably. Compared to pure copper, the tensile strength and the elongation of Cu-0.1Pb are about 82.5 MPa and 15.3%, which are reduced by 43.1% and 56.7%, respectively. Ce addition improves the mechanical properties of impure copper containing Pb. Compared to Cu-0.1Pb, the tensile strength and the elongation of Cu-0.1Pb-0.3Ce are 179.5 MPa and 38.5%, which are increased by 117.6% and 151.6%, respectively. The mechanical properties of Cu-0.1Pb-0.3Ce are even a little better than those of pure copper.

The segregation of impurity element Pb at grain boundaries increases the inhomogeneity of chemical compositions and decreases the binding force of grain boundaries. Grain boundaries are the stress concentration zones during the tensile testing and cracks would be initiated on grain boundaries [34]. Hence, the mechanical properties of impure copper containing Pb are deteriorated. Ce addition purifies the grain boundaries, decreases the content of Pb on grain boundaries and changes the existence form of Pb by forming CePb₃ second phase particles. The second-phase strengthening improves the mechanical properties of impure copper containing Pb. On the other hand, as can be seen from Fig. 5, Ce addition refines the grain size. The fine-grain strengthening is also beneficial to the improvement of mechanical properties [35,36].

Fig. 8 SEM fractographs of impure copper containing Pb before and after Ce addition

Figure 8 shows the SEM fractographs of impure copper containing Pb before and after Ce addition. Some deep and homogeneous dimples exist on the fracture surface of pure copper (Fig. 8(a)), showing good ductility. There are shallow and large dimples on the fracture surface of Cu-0.1Pb (Fig. 8(b)), indicating the worse mechanical property than pure copper. As shown in Figs. 8(c, d), a large number of small dimples distribute uniformly on the fracture surface of Cu-0.1Pb-0.3Ce. Some spherical particles with average size of 3.1 μm are presented in the dimples. These second phase particles increase the resistance of resisting plastic deformation [37,38], which improves the mechanical properties of impure copper containing Pb. The fractographs of impure copper containing Pb before and after Ce addition are in well consistent with the variation rules of the mechanical properties.

4 Conclusions

(1) The minor amount of impurity element Pb mainly distributes on grain boundaries of copper, which can lower the binding force of grain boundaries. The tensile strength and the elongation of Cu-0.1Pb are decreased by 43.1% and 56.7% compared with those of pure copper, respectively.

(2) The Pb distributes from mainly at grain boundaries to homogeneously in the copper matrix with spherical particles after Ce addition. TEM combined with EDS results demonstrates that the structure of second phase particle is CePb₃ with AuCu₃-type fcc structure.

(3) Due to the fine-grain strengthening and CePb₃ second-phase strengthening, Ce addition improves the mechanical properties of Cu-0.1Pb. Compared to Cu-0.1Pb, the tensile strength and the elongation of Cu-0.1Pb-0.3Ce are 179.5 MPa and 38.5%, which are increased by 117.6% and 151.6%, respectively.
