Synthesis and characterization of CoFe₂O₄ nanoparticles

XIAO Xu-xian(ФÐñÏÍ)¹, HUANG Ke-long(»Æ¿ÉÁú)¹,

YAN Jian-hui(ÑÖ½¨»Ô)^1,2, HE Qiong-qiong(ºÎÇíÇí)³

(1.School of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China;

2. Department of Chemical Engineering, Hunan Institute of Science and Technology, Yueyang 414000, China;

3. School of Basic Medical Sciences, Central South University, Changsha 410078, China)

Abstract: The reverse microemulsion composition consisting of 37.0% cyclohexane, 26.0% surfactant (TX-10 and AEO9), 13.0% n-pentanol and 24.0% aqueous phase was investigated and chosen for the preparation of cobalt ferrite nanoparticles. Then silicon dioxide was coated onto the surface of the magnetite nanoparticles. The two kinds of nanoparticles were characterized by means of X-ray diffractometry(XRD), scanning electron microscopy (SEM), infrared spectroscopy (IR), and energy dispersion spectrometry (SEM-EDS). The SEM results indicate that both nanoparticles have narrow size distribution, less agglomeration and are in the size range of 10-60nm. XRD patterns show that there is not any peak detected except for the peaks of CoFe₂O₄, and imply that the coated silicon dioxide is amorphous. IR absorption spectra of the samples show the characteristic bands of Si¡ªO¡ªSi group and Fe¡ªO group. SEM-EDS indicates that the molar ratio of Fe to Si is 96.11¡Ã3.89. These results prove that a thin film of SiO₂ is coated on the surface of the magnetite nanoparticles. And the characterization of cobalt ferrite nanoparticles prepared by conventional precipitation method are compared.

Key words: CoFe₂O₄; nanoparticle; microemulsion; silicon dioxide; coating CLC number: TQ138.1

Document code: A

1 INTRODUCTION

Recently, the nanoparticles in the size range of 1-100nm have been received increasing attention because of their unusual physical and chemical properties compared with larger particles^{[1, 2]}. Various nanoparticles have been prepared by different kinds of methods, such as coprecipitation method^[3], shock wave treatment^[4], sol-gel process^[5], hydrothermal process^[6] and microemulsion approach^[7-10] . In comparison, microemulsion system is more attractive than other processing routes, so various organic or inorganic nanoparticles have been prepared via microemulsion approach. For example, Wang et al^[11] reported the preparation of ¦Á-Fe nanoparticles by a microemulsion system consisting of saturated Fe²⁺ solution, isopropanol and PVP; Chen et al^[1] synthesized colloidal gold nanoparticles by a reverse microemulsion system consisting of CTAB, n-pentanl, hexane and water; Caponetli et al^[2] prepared CdS nanoparticles by a microemulsion system containing water, AOT and n-heptane.

Ferrite nanoparticles are the promising materials for extensive investigation and application because of their excellent catalytic activity and magnetic characteristics. At present, several synthesis methods of CoFe₂O₄ nanoparticles have been developed, such as chemical coprecipitation method^[12], sol-gel process^[13] and microemulsion approach^[14]. For example, Xu et al^[15] synthesized nano-particles by combustion method; Shah and Pillai^[14] prepared the precursor of CoFe₂O₄ by microemulsion approach, and these precursors were then calcined to prepare CoFe₂O₄ nanoparticles. Ferrite nanoparticles have been applied to biomedical research for the last decade. Although ferrite nanoparticles have good magnetic characteristics, their poor biocompatibility restricts their application. While SiO₂ has good biocompatibility. In this paper, we attempted to synthesize CoFe₂O₄ nanoparticles using a new reverse microemulsion system consisting of water(or brine), TX-10, AEO9, cyclohexane and n-pentanol. TX-10 and AEO9 were used as a new mixed surfactant with the mass ratio of 1¡Ã1. And then we prepared silica-coated CoFe₂O₄ with good biocompatibility and magnetic characteristics by coating process. The characterization of uncoated CoFe₂O₄ and SiO₂-coated CoFe₂O₄ nanoparticles were investigated using XRD, SEM, IR and EDS techniques, and the characterization of CoFe₂O₄ nanoparticles prepared by conventional precipitation method was also compared.

2 EXPERIMENTAL

2.1 Chemical reagents

Fe(NO₃)₃¡¤9H₂O(99.0% pure), Co(NO₃)₂(99.0% pure), cyclohexane (99.0% pure), n-pentanol (99.0% pure) and ammonia (>36%, NH₃) were produced by the Second Chemical Reagent Plant of Shanghai, China. Methanol(99.0% pure) and acetone(99.0% pure) were purchased from the Chemical Reagent Plant of Hunan Normal University. TX-10 (99.0%, technical grade) and AEO9(99%, technical grade)were supplied by Hunan Licheng Groups and double-distilled water was used to prepare the samples.

2.2 Microemulsion composition

In order to prepare reverse microemulsions, a high-purity cyclohexane was used as the continuous oil phase; n-pentanol was used as cosurfactant; mixture of AEO9 and TX-10(mass ratio of 1¡Ã1) was used as surfactant; and an aqueous solution was used as the dispersd phase. The composition was indicated in Table 1.Two microemulsions (¢ñand ¢ò) with identical compositions but different aqueous phases were prepared. The aqueous phase in microemulsion¢ñwas a mixture of cobalt(¢ò) nitrate and ferric nitrate solution with the molar ratio of 1¡Ã2. The aqueous phase in microemulsion ¢ò was the precipitation agent, ammonia, with a sufficient concentration for the precipitating of Co²⁺ and Fe³⁺ ions. In order to identify the oil-continuous compositions of these two reverse microemulsions, we determined the two partial ternary phase diagram (at room temperature) with the mixed nitrate solution or ammonia solution as aqueous phase. The oil-continuous microemulsions were checked by the measurement of electrical conductivity.

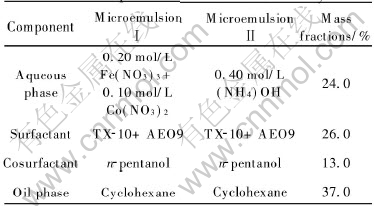

Table 1  Composition of microemulsion system

2.3 Nanoparticle preparation

CoFe₂O₄ nanoparticles were prepared via two processing methods: 1) the conventional precipitation method and 2) the microemulsion method. In the precipitation method, aqueous NH₃ solution (24%, mass fraction) was added to 0.10mol/L Co²⁺ and 0.20mol/L Fe³⁺ solution, then the system was refluxed at 85¡æ for 5h. Finally CoFe₂O₄ nanosized product was dried under vacuum at 60-70¡æ.

For the microemulsion method, these two reverse microemulsions (¢ñand ¢ò ) were mixed under constant stirring. Within the nano-sized aqueous droplets of the reverse microemulsion, the reaction of Co²⁺ and Fe³⁺ ions with OH^- anions happened and the cobalt-iron hydroxide precipitate formed. The process of the reaction was controlled by the pH value through modulating the amounts of ammonia reverse microemulsion. After 10min, the system was warmed to 95¡æ, refluxed for 5h, and the CoFe₂O₄ nanoparticles appeared. Being naturally cooled to room temperature, the CoFe₂O₄ nanoparticles were separated from the reaction media by centrifugation and washed with absolute ethanol and distilled water for several times. Finally, CoFe₂O₄ nanosized product was dried under vacuum at 60-70¡æ for 7h.

The CoFe₂O₄ powders were added into the glycol solution, and then the water glass solution was added into the mixed solution. The pH value of the solution was adjusted to about 10 using 1mol/L HCl. The mass fraction of CoFe₂O₄ was 7%. The gelation time was longer than 2h with the temperature of 80¡æ. After being coated, the particles were filtered and washed using double-distilled water and then dried at 120¡æ for 3h.

2.4 Characterization

All products were characterized using X-ray diffractometry (CuK¦Á, Philips PW1729). The powders were also characterized for particle/agglomeration size distribution using laser scattering technique (Horiba LA-910). Observation of crystallites by scanning electron microscopy (SEM) was performed on LEO 1430 VP SEM. The element composition of the coated particle was analyzed by energy dispersion spectrometry (SEM-EDS, KYKY-2800). Infrared spectroscopy (IR, Nicolet, 750) of the samples was used to study the chemical bonds between uncoated CoFe₂O₄ and SiO₂ coated CoFe₂O₄ powders.

3 RESULTS AND DISCUSSION

The partial quasi-ternary phase diagrams of the reverse microemulsion systems of TX-10, AEO9, n-pentanol, cyclohexane and Brine at 30¡æ are shown in Figs.1(a) and (b), where S (surfactant) and C (cosurfactant) represent the total mass of TX-10, AEO9 and n-pentanol, O is the mass of oil phase and W is the mass of brine. Two aqueous solutions are not the same in two figures: one is mixed nitrates of 0.10mol/L Co(NO₃)₂ and 0.20mol/L Fe(NO₃)₃ in Fig.1(a) and the other aqueous solution is 0.4mol/L ammonia solution in Fig.1(b). But the oil, surfactant and cosurfactant used are the same in two figures. The reverse microemulsion region is represented by the shaded area in two figures. The two phase diagrams are similar and the reverse microemulsion region is widened with increasing mixed surfactant/oil phase ratio.

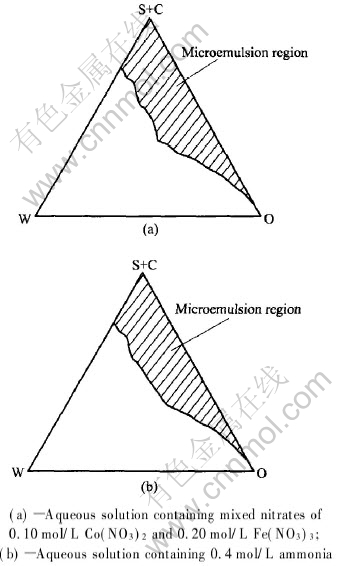

Fig.1  Partial phase diagram established for ternary system comprising coclohexane,

TX-10+AEO9, n-pentanol and different aqueous solutions at room temperature

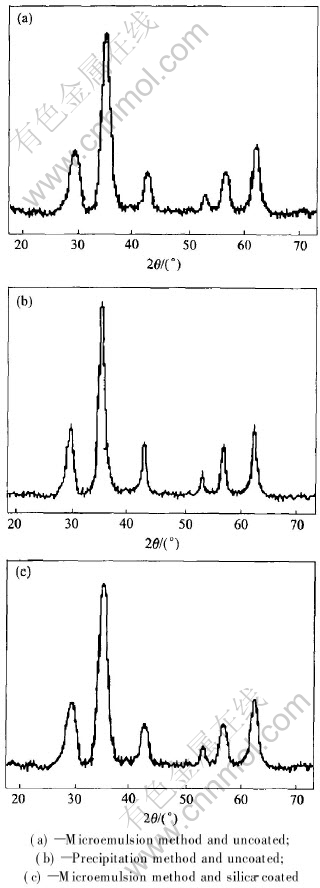

Fig.2  X-ray diffraction patterns of nanoparticles prepared by different methods

  Figs.2(a) and (b) show the XRD patterns for the particles prepared with the microemulsion and precipitation method, respectively. It is evident that these powders contain only spinel ferrite. CoFe₂O₄ can be formed by two methods and all the peaks in the two patterns match well with JCPDS card. No impurity peaks can be found on the XRD patterns. However, it can be observed that the peaks for the particles obtained by the micro-emulsion method have broader and weaker intensity patterns than those by the precipitation method. This phenomenon is not resulted from lower crystallinity or amorphous structure. Fig.2(c) shows the X-ray diffraction pattern of the silicon dioxide-coated CoFe₂O₄ which is similar to that in Fig.2(a). No diffraction peak characteristic of crystalline silica is observed, whereas the six characteristic diffraction peaks of CoFe₂O₄ are examined by X-ray diffractometry. This result implies that the coated silicon dioxide is amorphous.

The SEM images of the particles prepared by the microemulsion and precipitation method are shown respectively in Figs.3(a) and (b). It is obvious from these figures that the sizes and morphologies of the particles show little difference. The particles prepared by the microemulsion method are spherical and regular (Fig.3(a)). Their diameters are in the range of 10-50nm and narrow particle size distribution is shown in Fig.4(a).Whereas the particles prepared by precipitation method are less regular and some are agglomerated(Fig.3(b)). Their diameters are in the range of 30-70nm and a very broad particle size distribution is shown in Fig.4(b). Fig.3(c) shows the SEM image of the magnetite nanoparticles prepared by the microemulsion and coated with silicon dioxide, which shows that most of the particles are spherical with an average diameter of 35nm. The distribution of particle diameters is shown in Fig.4(c).

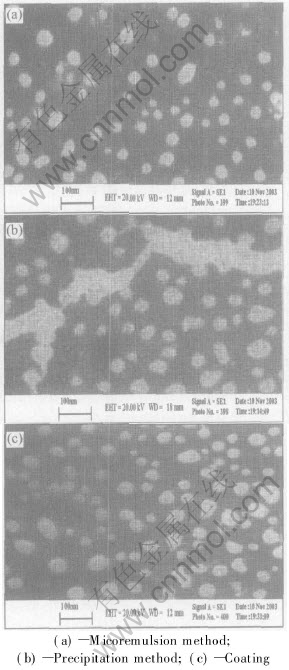

Fig.3  SEM micrographs of nanoparticles prepared by different methods

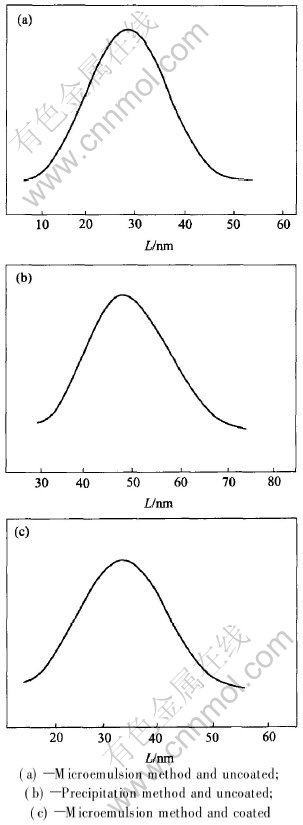

Fig.4  Size distribution of nanoparticles prepared by different methods

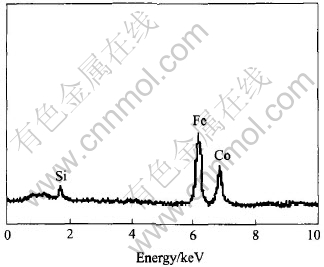

Fig.5  SEM-EDS elemental analysis of SiO₂-coated CoFe₂O₄ nanoparticles

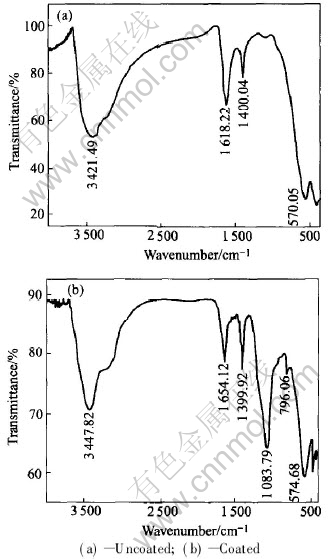

Fig.6  IR spectra of samples

  EDS is used to identify the elements of the powder. Fig.5 shows a typical SEM-EDS elemental analysis result of silica-coated CoFe₂O₄ nanoparticles. Si element peak at 1.76keV can be seen from the figure. The molar ratio of Fe to Si is 96.11¡Ã3.89. We can conclude that a thin film of silicon dioxide is coated on the surface of CoFe₂O₄ particles.

IR spectroscopy analysis is also used to evaluate the presence of silicon dioxide on the surface of CoFe₂O₄ nanoparticles. Figs.6(a) and (b) show the IR spectra of uncoated and coated CoFe₂O₄ nanoparticles respectively. Three absorption peaks appear in the spectra, and they are related to the characteristic vibrational transverse optical modes of Si¡ªO¡ªSi chemical bond. The band which appears at about 453.17cm^-1 is the rocking vibrational mode; the 796.06cm^-1 absorption band corresponds to the bending vibration; and the band near about 1083.79cm^-1 corresponds to an asymmetric stretching vibration of Si¡ªO¡ªSi bond. The characteristic absorption bands (at 574.68 and 413.14cm^-1) of the Fe¡ªO bond of SiO₂-coated CoFe₂O₄ compared with those of uncoated CoFe₂O₄ (at 570.05 and 410.11cm^-1) are also found. In addition, in Figs.6(a) and (b) the absorption bands near 3400 and 1630cm^-1 refer to the vibration of remainder H₂O in the samples. And there also exists the contribution of adsorbed CO₂ for the band near 1400cm^-1 in Figs.6(a) and (b). From these results of IR spectra and SEM-EDS, it is proven that the CoFe₂O₄ nanoparticles can be coated with silicon dioxide.

4 CONCLUSIONS

A new reverse microemulsion system consisting of TX-10, AEO9, cyclohexane n-pentanol and wate(brine) was studied and successfully used to synthesize CoFe₂O₄ nanoparticles. We have prepared SiO₂-coated CoFe₂O₄ with good biocompatibility and magnetic characteristics by coating process. Then, the difference among microstructures, crystallogram, and IR spectra of uncoated and silica-coated products prepared from reverse micoemulsion method was investigated. The characterization of CoFe₂O₄ nanoparticles prepared by conventional precipitation method was also valued. These results are utilized to prove the formation of silicon dioxide thin films on the surface of nanoparticles.
