Thermal decomposition of ammonium hexafluoroaluminate and preparation of aluminum fluoride

HU Xian-wei, LI Lin, GAO Bing-liang, SHI Zhong-ning, LI Huan, LIU Jing-jing, WANG Zhao-wen

School of Materials and Metallurgy, Northeastern University, Shenyang 110004, China

Received 30 October 2010; accepted 27 May 2011

Abstract: The thermal decomposition process of (NH₄)₃AlF₆ was studied by DTA-TGA method and the related thermodynamic data were obtained. The results show that AlF₃ is obtained after three-step decomposition reaction of (NH₄)₃AlF₆, and the solid products of the first two decomposition reactions are NH₄AlF₄ and AlF₃(NH₄F)_0.69, respectively. The three reactions occur at 194.9, 222.5 and 258.4 °C, respectively. Gibbs free energy changes of pertinent materials at the reaction temperatures were calculated. Enthalpy and entropy changes of the three reactions were analyzed by DSC method. Anhydrous aluminum fluoride was prepared. The XRD analysis and mass loss calculation show that AlF₃ with high purity can be obtained by heating (NH₄)₃AlF₆ at 400 °C for 3 h.

Key words: ammonium hexafluoroaluminate; thermal decomposition; aluminum fluoride; thermodynamic data

1 Introduction

Anhydrous aluminum fluoride is commonly used in the scientific experiments related to aluminum electrolyte. However, aluminum fluoride from most reagent companies contains crystal water because of its hydrometallurgical preparing process. Therefore, it is important to develop the process for preparing anhydrous aluminum fluoride in the laboratory.

If heating aluminum fluoride containing crystal water, alumina will be formed because of the hydrolysis reaction of aluminum fluoride. Sublimation process under vacuum is commonly used for preparing anhydrous aluminum fluoride [1-4]. But in this process, the experimental equipments are strictly required. TIE et al [5] have put forward a new process in which aluminum fluoride with crystal water is mixed with ammonium acid fluoride and the mixture is then heated. Hydrogen fluoride generated by the decomposition of ammonium acid fluoride will inhibit the hydrolysis of aluminum fluoride, so the purity of aluminum fluoride will increase. This process has also been used by other researchers [6-9]. SCHOLZ and KEMNITZ [10] have proposed a mechanochemical synthesis method to prepare aluminum fluoride with ammonium fluoride used as fluorinating agent.

Anhydrous aluminum fluoride can be obtained by heating ammonium hexafluoroaluminate [11]. SHINN et al [12] have researched the thermal decomposition process of ammonium hexafluoroaluminate. According to their research results, ammonium hexafluoroaluminate decomposes by three steps. γ-AlF₃ will be generated at 300 °C and then it will transform to α-AlF₃ at 720 °C. BECK et al [13] have studied the thermal decomposition process of ammonium hexafluoroallate and ammonium hexafluoroindate which has a similar crystal form to ammonium hexafluoroaluminate. The processes are proved to be carried out step by step, and the crystal transformation of the final fluoride product is also observed.

However, the researches mentioned above are focused on the crystal transformation of permanent materials, and the research on the thermal decomposition of ammonium hexafluoroaluminate is not systematic. Thermodynamic data of the decomposition and the preparation technology of anhydrous aluminum fluoride have not been involved.

In the present study, the thermal decomposition process of ammonium hexafluoroaluminate was analyzed in detail by comprehensive thermal analysis technique. The reaction equations were determined, and the pertinent thermodynamic data were calculated. Subsequently, the process of preparing anhydrous aluminum fluoride in the laboratory was studied, and the reasonable preparing conditions were determined.

2 Experimental

The comprehensive thermal analysis experiments were carried out by a TA Instruments SDT 2960 thermal analysis instrument. The platinum crucible was used for holding samples. α-Al₂O₃ after calcination was used as reference material. About 10 mg of the sample was used for each measurement. The experiments were carried out under argon shield and the flow rate was controlled to 20 mL/min.

In the study on preparation of anhydrous aluminum fluoride, ammonium hexafluoroaluminate was held in a graphite crucible which was placed in a resistance furnace, and the experiments were carried out under argon shield.

3 Results and discussion

3.1 DTA-TGA analysis on (NH₄)₃AlF₆

DTA-TGA experiments of (NH₄)₃AlF₆ were carried out at four various heating rates of 1, 2, 5 and 10 °C/min, respectively. The scanned curves are shown in Fig. 1.

Each endothermic peak on the DTA curves in Fig. 1 corresponds to one step of decomposition reactions. There are three endothermic peaks on the DTA curves in Figs. 1(a), (b) and (c); but on the DTA curve in Fig. 1(d), only two endothermic peaks can be identified, which is attracted to that the heating rate is so high that the resolution of the curve is decreased. However, one can derive DTG curve from the TGA curve to improve the resolution. The turning points on the DTG curve are more easily to identify. DTG curve of (NH₄)₃AlF₆ at heating rate of 10 °C/min is shown in Fig. 2. It is easy to identify that there are three obvious peaks on the DTG curve in Fig. 2, which correspond to the three steps of decomposition of (NH₄)₃AlF₆, respectively. Meanwhile, on all TGA curves in Fig.1, there are four platforms, which also express the feature of three-step decomposition reactions.

The temperature corresponding to the extrapolated onset of peak on DTA or DTG curve is thought to be the starting temperature of the corresponding reaction. Therefore, the starting temperatures of the three-step decomposition reactions can be obtained by analyzing the DTA curves in Figs. 1(a)-(c) and DTG curve in Fig. 2.

The relationship curves between starting temperatures and heating rates are shown in Fig. 3. It can be seen in Fig. 3 that except for the second and third reactions corresponding to 5 °C/min of heating rate, there is a tendency that the starting temperature of the reaction is decreased with increasing the heating rate. For a lower heating rate, the heat transfer is more sufficient, so the whole system is closer to equilibrium. In contrary, for higher heating rate, the system is farther from equilibrium state, so the resolution of the instrument is decreased. The effect of heating rate on chemical reactions with mass change is more serious [14]. Therefore, it is thought that when the heating rate is equal to 0, the heat transfer is the most sufficient, and the whole system is the closest to heat equilibrium. Quadratic fit is made to the data points in Fig. 3 (the points corresponding to the second reaction and the third reaction for 5 °C/min of heating rate are not involved), as shown by the actual lines.

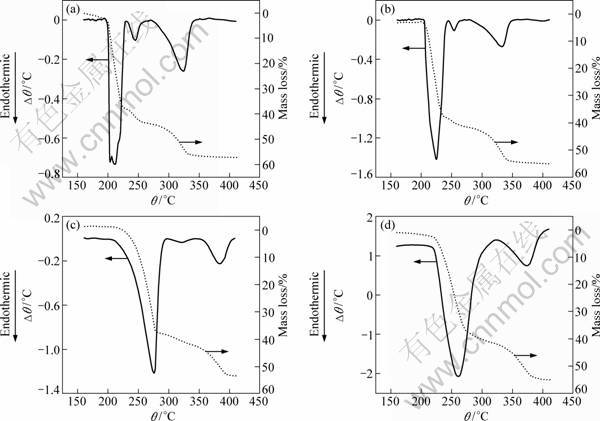

Fig. 1 DTA-TGA curves of (NH₄)₃AlF₆ at different heating rates: (a) 1 °C/min; (b) 2 °C/min; (c) 5 °C/min; (d) 10 °C/min

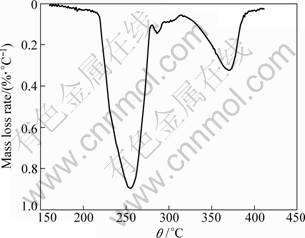

Fig. 2 DTG curve of (NH₄)₃AlF₆ at heating rate of 10 °C/min

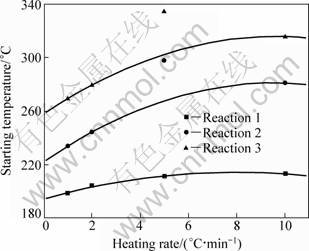

Fig. 3 Relationship between starting temperature and heating rate

The extrapolated starting temperatures can be obtained by substituting the heating rate in the fitted equations with 0. The obtained starting temperature values are listed in Table 1.

(NH₄)₃AlF₆ will decompose during the heating process and NH₄F will be generated. NH₄F will further decompose to HF and NH₃. The other products of the decomposition reactions of (NH₄)₃AlF₆ will be the combination of NH₄F and AlF₃ with different mole ratios or pure AlF₃. The three decomposition reaction equations can be obtained according to the mass loss of each reaction. It can be seen from the four TGA curves in Fig.1 that there is little effect of heating rate on mass loss. Therefore, in the present work, only the TGA curve of  1 °C/min is analyzed typically. The mass loss of each reaction is obtained from corresponding starting temperature of the next reaction. The temperature at which mass loss in the TGA curves does not change any more is used as that for the third reaction.

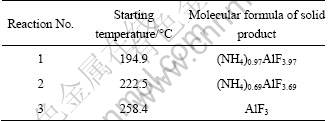

Table 1 Starting temperature and solid product of decomposition reactions of (NH₄)₃AlF₆

The amount of the mass loss equals that of HF and NH₃, which could be regarded as the amount of NH₄F according to stoichiometry. For 1 mol (195 g) of (NH₄)₃AlF₆, the mass of NH₄F can be obtained according to the mass loss of each decomposition, and then the amount of substance can be calculated. Based on the above results, the molecular formulas of the solid products of the three decomposition reactions can be obtained, which are also listed in Table 1.

In the solid product of the first decomposition reaction of (NH₄)₃AlF₆, the molar ratio between NH₄⁺ and AlF₄^- is 0.97. Considering the experimental error, the ratio is thought to be 1. Therefore, it is thought that the solid product of the first decomposition reaction is NH₄AlF₄.

The molecular formulas of the solid product of the second decomposition reaction is (NH₄)_0.69AlF_3.69. The molar ratio between AlF₃ and NH₄F in the material is 1:0.69 according to stoichiometry. This material only exists at high temperature and its structure is very unstable [12].

Based on the above discussion, the three-step decomposition reaction equations are obtained as follows:

 (1)

                     (2)

(3)

3.2 Gibbs free energy change of pertinent materials

It is thought that Eqs. (1)-(3) are at equilibrium state, that is, the Gibbs free energy change is 0.

Though there is no data on the Gibbs free energy changes of (NH₄)₃AlF₆, (NH₄F)_0.69AlF₃ and NH₄AlF₄ in the literatures, the Gibbs free energy change of the three materials at the reaction temperatures can be calculated based on Eqs. (1)-(3). The Gibbs free energy change of AlF₃, NH₃ and HF at the reaction temperatures can be obtained by using HSC Chemistry 5.1, as listed in Table 2. The calculated data of pertinent materials are also listed. During the calculation process, the Gibbs free energy changes of (NH₄F)_0.69AlF₃ at 258.4 °C and 222.5 °C are thought to be the same. Likewise, the Gibbs free energy changes of NH₄AlF₄ at 222.5 °C and 194.9 °C are thought to be the same.

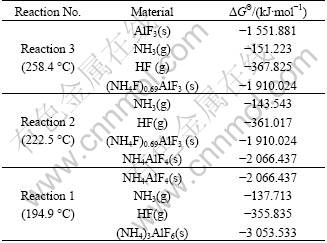

Table 2 Gibbs free energy changes of pertinent materials in decomposition reactions of (NH₄)₃AlF₆

3.3 Enthalpy and entropy change of decomposition reactions of (NH₄)₃AlF₆

It is well known that the area of the peak enclosed by the DSC curve and the baseline is proportional to the enthalpy change as follows:

ΔH=KA                                     (4)

where ΔH is the enthalpy change in J/g; A is the area of the peak enclosed by the DSC curve and the baseline in J/g; K is the proportional constant, which needs to be calibrated by the reference material.

BREUER and EYSEL [14] have researched the checking standard materials for DSC experiments. In the present study, metallic Sn and AgNO₃ are chosen to calibrate the value of K.

The heating rate of the DSC experiments was set to be 5 °C/min, the mass of both the two samples were as same as possible. The DSC curves of Sn and AgNO₃ are shown in Figs. 4 and 5, respectively.

The endothermic peak on the DSC curve in Fig. 4 corresponds to the melting of Sn. On the DSC curve in Fig. 5, there are two endothermic peaks，and they correspond to the polymorphic transition and the melting of AgNO₃, respectively [15].

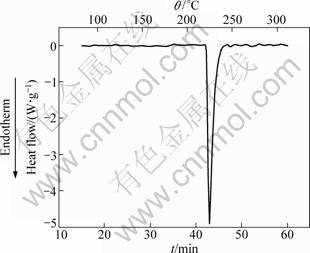

Fig. 4 DSC curve of Sn at heating rate of 5 °C/min

Fig. 5 DSC curve of AgNO₃ at heating rate of 5 °C/min

The calibration of K was carried out by the melting peaks of metallic Sn and AgNO₃. The values of K were calculated as 1.70 and 1.62, respectively. The difference between the two calculated values is small and the average value of 1.66 is used to calculate the enthalpy of decomposition reactions of (NH₄)₃AlF₆.

In the DSC measurement of (NH₄)₃AlF₆, the heating rate was also set as 5 °C/min and the mass used was as close to that of the former scannings as possible. The DSC curve of (NH₄)₃AlF₆ is shown in Fig. 6.

By using Eq. (4), the enthalpy changes of the three decomposition reactions can be calculated and the results are listed in Table 3.

The relationships among entropy change, enthalpy change and Gibbs free energy change are described by

ΔH =ΔG + T·ΔS                              (5)

where ΔH, ΔG, ΔS, and T are the enthalpy change, Gibbs free energy change, entropy change, and temperature, and their units are J/g, J/g, J/(g·°C), and °C, respectively.

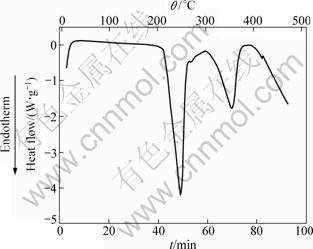

Fig. 6 DSC curve of (NH₄)₃AlF₆ at heating rate of 5 °C/min

Therefore, the entropy changes of the three decomposition reactions can be calculated and the results are also listed in Table 3.

Table 3 Enthalpy and entropy change of decomposition reactions of (NH₄)₃AlF₆

3.4 Preparation of anhydrous AlF₃ by heating (NH₄)₃AlF₆

According to the above thermal analysis of (NH₄)₃AlF₆, one will get anhydrous AlF₃ if (NH₄)₃AlF₆ is heated to a high enough temperature and held for a long enough time.

40 g of (NH₄)₃AlF₆ was heated to 400 °C, and then held for 3 h. The remained solid sample was 16.70 g, and the mass loss was calculated as 58.25%. Considering the error, it is thought that (NH₄)₃AlF₆ is decomposed to AlF₃ thoroughly.

The XRD pattern of the remaining sample is shown in Fig. 7. It indicates that the decomposition product is AlF₃. Therefore, it is thought that anhydrous AlF₃ with high purity can be prepared by heating (NH₄)₃AlF₆.

4 Conclusions

1) During the heating process of (NH₄)₃AlF₆, three-step decomposition reactions occur as follows:

(NH₄)₃AlF₆NH₄AlF₄+2NH₃↑+2HF↑

NH₄AlF₄(NH₄F)_0.69AlF₃+0.31NH₃↑+0.31HF↑

(NH₄F)_0.69AlF₃AlF₃+0.69NH₃↑+0.69HF↑

Fig. 7 XRD pattern of thermal deposition product of (NH₄)₃AlF₆ at 400 °C

2) The Gibbs free energy changes of (NH₄)₃AlF₆, NH₄AlF₄, AlF₃(NH₄F)_0.69 at corresponding temperatures, and enthalpy and entropy changes of the three decomposition reactions are obtained.

3) High purity anhydrous AlF₃ can be obtained by heating (NH₄)₃AlF₆ to 400 °C and maintaining for a long enough time.
