Synthesis and characterization of aminated SiO2/CoFe2O4 nanoparticles
XIAO Xu-xian(肖旭贤)1, HUANG Ke-long(黄可龙)1, HE Qiong-qiong(何琼琼)2
1. School of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China;
2. School of Basic Medical Sciences, Central South University, Changsha 410013, China
Received 23 April 2007; accepted 28 June 2007
Abstract: A kind of newly aminated CoFe2O4 nanoparticles were synthesized by grafting process for biomedical applications, which were coated primarily with silicon dioxide(SiO2). The characterizations of aminated SiO2/CoFe2O4(ASCN) and SiO2-coated CoFe2O4(SCN) nanoparticles were investigated using elemental analysis, thermogravimetric analysis(TGA), differential thermal analysis(DTA), infrared spectroscopy(IR), atomic force microscopy(AFM), zeta-potential measurement and vibrating sample magneto-metry(VSM). The AFM micrograph shows that the ASCN nanoparticles are approximately spherical with an average diameter of 30 nm. Based on IR and TGA results, it is suggested that the surface of the SiO2-coated CoFe2O4 nanoparticles are grafted with amino compounds. The elemental analysis also shows the presence of 0.98 mmol/g of organic moieties immobilized on the surface of ASCN nanoparticles. Zeta-potential data of ASCN nanoparticles also reveal that amino compounds are bonded onto the surface of SiO2-coated CoFe2O4 nanoparticles by ether linkage. The magnetic parameters show that ASCN nanoparticles still have good magnetic property.
Key words: cobalt ferrites; nanoparticles; magnet; amination; graft; zeta potential; surface modification
1 Introduction
Recently, nanometer-sized ferrite particles are regarded as a class of important magnetic materials, which have attracted the attention of many researchers, due to their large surface-to-volume ratio, quantum-size effect, superior magnetic character and catalytic activity as well as their potential application in many domains. Various ferrite nanoparticles of different chemical compositions, shapes and size distributions have been prepared by different methods, such as co-precipitation method[1-2], shock wave treatment[3], sol-gel process [4-5], hydrothermal process[6-7], microemulsion approach[8-9]. For example, XU et al[10] synthesized nanoparticles by combustion method, SHAP and PILLAI[11] prepared the precursor of CoFe2O4 by microemulsion approach, and these precursors were then calcined to give CoFe2O4 nanoparticles. In our laboratory, the CoFe2O4 nanoparticles were synthesized by using a new reverse microemulsion system consisting of water (or brine)/ TX-10, AEO9/cyclohexane/n-pentanol[12].
With the development of nanoparticles technology and biomedical science, the technology of nanoparticle therapy was put forward in time. One major hurdle that underlies the use of nanoparticle therapy is how to get the nanoparticles to a particular site in the body. Magnetic nanoparticles have been proposed for use as biomedical purposes for several years, for which a potential benefit is the use of localized magnetic field gradients to attract the particles to a targeted site until the therapy is complete and then to remove them. However, the agglomeration, toxicity and poor biocompatibility of bare ferrite nanoparticles restrict their application. Surface modification of ferrite nanoparticles is crucial because it can improve the stability, biocompatibility and biodistribution. To date a wide variety of modifying materials such as oleic acids, silicons, aminosilane, poly(ethylene glycol), chitosan[13] have been used to improve chemical stability and biocompatibility of magnetite for various biomedical applications. But to the best of our knowledge, no report has yet been published using alkamine as a modifying material of magnetic nanoparticles for the application of gene delivery.
In this study, the CoFe2O4 nanoparticles is primarily coated with silicon dioxide by sol-gel process, and low relative molecular mass alkamine molecules due to its low toxicity are grafted onto the surface of SiO2-coated CoFe2O4 nanoparticles. The newly aminated SiO2/ CoFe2O4 nanoparticles(ASCN) are characterized by elemental analysis, TGA-DTA, AFM, IR, zeta-potential measurement and VSM techniques.
2 Experimental
2.1 Materials
Unless otherwise noted, all reagents were from Hunan Chemical Co. DMF, benzene, pyridine, thionyl chloride, and 3-(Fmoc-amino)-1-propanol (≥98.0%) were in analytic grades, isooctane and pyridine were distilled over CaH2 before use. Pyridine was further purified by freeze-pump-thaw cycles on a vacuum line. Silica coated magnetic nanoparticle was prepared in our laboratory.
2.2 Chlorination of silanol groups with thionyl chloride
Silica coated magnetic nanoparticle (6.0 g) was added into a dry 250 mL round-bottom flask equipped with a reflux condenser and a magnetic stirrer. Thionyl chloride (50 mL) was charged followed by the addition of 50 mL benzene. The mixture was stirred and refluxed for 50 h. After the reaction, unreacted thionyl chloride and benzene were removed by distillation and drying at 90 ℃ in vacuum for 24 h. The treated nanoparticles (Compound 1, C1) were stored in a desiccator in vacuum.
2.3 Alkamine reaction with chlorinated surface
3-(Fmoc-amino)-1-propanol solution (0.1 mol/L in DMF, with 0.01 mol/L pyridine) was transferred to the reaction flask via a metal cannula. Each sample was completely immersed in the solution and kept under argon. The reaction time was longer than 48 h at the temperature of 80 ℃. After the reaction, the samples (Compound 2, C2) were removed from the DMF solution, rinsed extensively with CH2Cl2. The Fmoc blocking group was removed in 20% piperidine in DMF. After deprotection, the product was washed with excess boiling toluene and Soxhlet extract in CH2Cl2. In the end, the aminated SiO2/CoFe2O4(ASCN) nanoparticles (Compound 3, C3) were obtained.
2.4 Characterization
Thermogravimetric analysis(TGA) and differential thermal analysis(DTA) were performed on a Hi-Res SDT 2960 model thermal analyzer. The heating rate for TGA and DTA was 5 ℃/min and the range was from 20℃ to 500 ℃. The infrared spectra of all nanoparticles products in KBr wafers were recorded with an infrared spectrophotometer (IR, Nicolet, 750). A nanoscope Ⅲ atomic force microscope(AFM) was also used for the observation of their morphology. The silica coated magnetic nanoparticles and alkamine grafted magnetic nanoparticles were characterized by quantitative elemental analysis (C and N analysis) using a Perkin- Elmer 2400 Series Ⅱ micro-elemental analyzer.
The zeta potentials and particle distribution of samples were measured respectively by laser electrophoresis instrument (Laser Zee, Model 500, USA) and laser granulometry (CILAS 1064, France). The magnetic properties of the nanoparticles were measured using a vibrating sample magnetometer (VSM, VBH-55).
3 Results and discussion
Fig.1 shows the synthetic steps for forming hybrid organic-inorganic nanocomposite. In this study, the preparation of SiO2 coated CoFe2O4 nanoparticles was according to Ref.[14]. The chlorination of silanol groups on silica coated magnetic particle was carried out according to a modified procedure[15]. The reaction of 3-(Fmoc-amino)-1-propanol with the chlorinated surfaces of nanoparticles was according to Ref.[16]. In the present report, we successfully synthesized the animated SiO2/CoFe2O4 nanoparticles according to the reference method. Without any doubt, this method could also be used to prepare other nanoscaled organic molecule grafted metal oxide by grafting process.

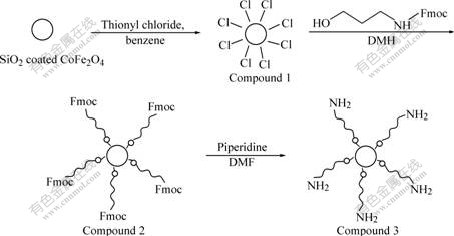

Fig.1 Synthetic steps of aminated magnetic nanoparticles
The amount of the amino grafted onto the surface of SiO2/CoFe2O4 nanoparticles was determined by elemental analysis. From the contents of carbon and nitrogen in the samples, it is possible to calculate the amount of substance of the compounds attached onto surfaces, as listed in Table 1. The ratio of C/N for the sample C3 can be calculated as 2.57, which is consistent with the C/N ratio of a bonded unit of 3-amino propoxy molecules. In contrast, carbon and nitrogen elements are not found on the surface of the unmodified SiO2/ CoFe2O4 nanoparticles. These results indicate that alkamine molecule is successfully grafted onto the surface of the SiO2/CoFe2O4 nanoparticles.
Table 1 Elements analysis of carbon and nitrogen for unmodified SiO2-coated CoFe2O4 and aminated SiO2/CoFe2O4 (ASCN) nanoparticles and immobilized amount(Q)
The typical TG-DTA result for the inorganic- organic materials is shown in Fig.2. The mass loss is mainly divided into two temperature regions: below 100℃ and 200-400℃. The mass loss below 100 ℃ is due to the evaporation of solvent and loosely bound water molecules trapped in the materials, supporting by the presence of an endothermic peak at 100 ℃ in DTA. Between 200 and 400 ℃ there are two regions of mass loss associated with two exothermic DTA peaks, which correspond to different stages in the oxidation of the organic species. Two peaks are observed at approximately 230 and 360 ℃, respectively. The former is ascribed to the decomposing reaction of organic modifier. The latter corresponds to the combustion of organic residuals, which is approximately equal to the mass fraction of the organic materials on the surface of the silica/CoFe2O4 nanoparticles. However, only one mass loss period below 100 ℃ is observed for unmodified silica/CoFe2O4 nanoparticles. It reveals that there are no organic molecules on the surface of nanoparticles.
Fig.2 TG/DTA plots of ASCN and TG plot of SCN
There are some notable differences between the IR spectrum of SiO2 coated CoFe2O4 nanoparticles and that of the ASCN nanoparticles shown in Fig.3. For two nanoparticles, two absorption peaks appear in the spectra, which are related to the characteristic vibrational transverse optical modes of Si—O—Si chemical bond. The band, which appears near 452 cm-1, is the rocking vibrational mode. The absorption band near about 796 cm-1 corresponds to the bending vibration of Si—O—Si bond. For ASCN nanoparticles, they possess absorption bands in 2 928.8 and 2 852.5 cm-1 due to stretching vibration of C—H bond. The peaks at 1 620 cm-1 and 885.2 cm-1 are due to the deformation and bending vibration modes of —NH2 group. In addition, the absorption bands of ASCN near 3 400 cm-1 due to the vibration of remainder H2O in the sample becomes smaller, and the band near 3 400 cm-1 due to the stretching vibration of —NH2 group is observed. But for SCN nanoparticles, the absorption bands of C—H bond and —NH2 group are not observed. These results indicate successful covalent linkage of the amino functional group to the SiO2 substrate.
Fig.3 IR spectra of unmodified and ASCN samples

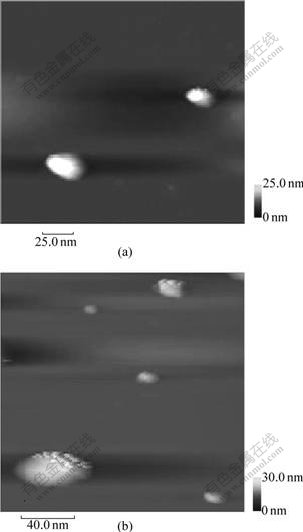

The surface morphologies and the size of SCN and ASCN nanoparticles can be directly observed with AFM. In Fig.4(a), the SCN particles are monodispersive and nearly spherical in shape. The average size is about 25 nm in diameter, and they have a smooth surface. The narrow particle size distribution is shown in Fig.5(a). The AFM image in Fig.4(b) shows that the amino grafted nanoparticles also remain monodispersive and spherical with the average diameter of 30 nm, and the surface of the amino grafted nanoparticles is rougher than that of the SCN nanoparticles. A very broad particle size distribution is shown in Fig.5(b). Prolonged Soxhlet extraction has no effect on the rough surface topography, indicating that the remaining organic matter is covalently linked to the surface of SiO2 coated CoFe2O4 nanoparticles and any loosely bound organic chains are completely removed by the treatment. The reason of the difference can be attributed to the amino molecule grafting onto the surface of nanoparticles.
Fig.4 AFM micrographs of unmodified (a) and ASCN(b) samples

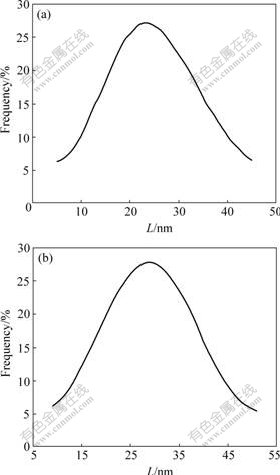

Fig.5 Size distribution of unmodified SCN (a) and ASCN (b) nanoparticles
Fig.6 shows the zeta potential data for two samples. The isoelectric point (iep) is defined as the pH value at which the zeta potential is zero. The isoelectric points of the nanoparticles are: pH 2.2 for SiO2-coated CoFe2O4 nanoparticles, pH 9.8 for ASCN nanoparticles. It is clear that zeta potential of SiO2-coated CoFe2O4 nanoparticles is similar to the zeta potential of silica[17], and it is different from the zeta potential of ASCN nanoparticles.
Fig.6 Zeta potential of samples as function of pH value
In this case, iep is shifted toward higher pH values. On the basis of this fact, it is considered that organic molecules form as thin films on the SiO2-coated CoFe2O4 cores.
The magnetic properties of the ASCN and SiO2-coated Co ferrite nanoparticles were measured at room temperature by VSM, as shown in Fig.7. They exhibit typical superparamagnetic behavior. The magnetization of ASCN nanoparticles is lower than that of SiO2-coated Co ferrite nanoparticles. This might be due to the amorphous character and thickness of organic moieties on the surface of nanoparticles. This reduction in magnetization also might be due to the difference in nanoparticle size and the accompanied change in surface area.
Fig.7 Magnetization curves of unmodified SCN and ASCN nanoparticles
4 Conclusions
1) The elemental analysis and thermogravimetric analysis of ASCN nanoparticles show the presence of organic moieties immobilized on the surface of ASCN nanoparticles.
2) AFM results indicate that nanoparticles are approximately spherical, regular and in the size range of 20-40 nm, which have a very broad particle size distribution.
3) IR absorption spectra show the ASCN nanoparticles have the characteristic bands of NH2 group, while SiO2 coated CoFe2O4 nanoparticles have no characteristic bands of NH2 group.
4) Modification of nanoparticles surface with amino compound also induces a clear shift in iep toward high pH values.
5) The aminated SiO2/CoFe2O4 nanoparticles (ASCN) present better magnetic behavior.
