Modified multi-walled carbon nanotubes with nano-europium oxide

CHEN Chuan-sheng(陈传盛)^{1, 2}, CHEN Xiao-hua(陈小华)¹, YI Bin(易  斌)¹,

ZHANG Guo-bin(张国斌)³, LI Fu-jin(李富进)¹, LUO Hui-shan(罗慧珊)¹

1. College of Materials Science and Engineering, Changsha University of Science and Technology,Changsha 410076, China;

2. State Key Laboratory for Powder Metallurgy, Central South University, Changsha 410083, China;

3. National Synchrotron Radiation Laboratory, University of Science and Technology of China, Hefei 230026, China

Received 15 July 2007; accepted 10 September 2007

Abstract: In order to improve optical property of the multi-walled carbon nanotubes (MWNTs), MWNTs were decorated with europium oxide (Eu₂O₃) nanoparticles by using co-deposition method. The MWNTs/Eu₂O₃ composites were examined by XRD, scanning electron microscopy, transmission electron microscopy, and VUV-Vis Luminescence spectroscopy and citric acid (CA) molecules were introduced onto the surface of MWNTs. The results show that there are many oxygenated functional groups on the surface of the MWNTs after the treatment of mixture acid, such as carboxy, hydroxl, carbony and amidocyanogen. The results of electron microscopy illuminate that the MWNTs are coated by nano-europium oxide after annealed at 750℃. The MWNTs/Eu₂O₃ composite emits much strong red light at about 610 nm under UV excitation.

Key words: carbon nanotubes; nano-europium oxide; fluorescence property

1 Introduction

The combination of carbon nanotubes (CNTs) and nano-particles can both improve the dispersion of CNTs in composite and enhance the compatibility between CNTs and based material, therefore improving the properties of composite[1-7]. Furthermore, combined unique properties of CNTs and nanoparticles make the nanoparticle-nanotube composite structure have advanced applications[8-13], including nanoelectronics, chemical sensors, biosensors, catalysis, fuel cells, etc.

MWNTs have a hollow structure with inner diameters of the order of 100 nm, which is an ideal geometry for drug transport and delivery. However, MWNTs have only been observed to exhibit weak infrared emissions. In order to improve their infrared emissions, MWNTs must be functionalized with spectroscopically characteristic fluorescent dyes. The unique electronic, optical, and chemical properties of the rare earth oxides make them useful in a variety of diverse applications such as laser materials, phosphors, and catalysis. The luminescence of Eu³⁺ is particularly interesting because the major emission band is centered near 612 nm (red), which is one of the three primary colors. In addition, Eu₂O₃ is one of the most important oxide phosphors and has been studied extensively[14-16]. The assembly of Eu₂O₃ on the surface of MWNTs can improve the luminescence property of MWNTs, and it can be used in luminescence material and the fields of cancer diagnosis and therapy. SUN et al[17] gained MWNTs/Eu₂O₃ composite of red luminescence. FU et al[18] reported that the luminescence property of MWNTs was improved by coating of Eu₂O₃. SHI et al[19] reported that the MWNTs exhibited luminescent emission in the visible-light range by depositing Eu₂O₃-doped Y₂O₃ nanophosphors onto the outside surfaces of MWNTs. These results indicate that surface-functionalized CNTs have wide applications in both novel optical devices and cancer diagnosis and treatment.

Although the Eu₂O₃ nanoparticles have been assembled on the surface of MWNTs by using different methods, the mechanism of assembled nanoparticles on the MWNTs and the properties of composite nanotubes need to be further investigated. In this work, the surfacefunctionalization of MWNTs was studied, and the fluorescence property of MWNTs/Eu₂O₃ composite was examined by VUV-Vis luminescence spectroscopy.

2 Experimental

2.1 Functionalization of MWNTs

The MWNTs used in this work were produced by catalytic decomposition of acetylene[20]. The products were oxidized by immersing in mixture acid and refluxed for 2 h at boiling, and then suspended and refluxed in HCl solution for 2 h at boiling. In order to further functionalize MWNTs, the oxidized MWNTs were further refluxed in concentrated ammonia[11].

2.2 Modification of MWNTs with citric acid

The aminated MWNTs and citric acid (CA) were mixed and sonicated in de-ionized water for 30 min. Sulfuric acid (10 mL) was dropped into the suspension of MWNTs, which was then stirred and refluxed at 80 ℃. The reaction mixture was cooled to ambient temperature, then filtered and washed with deionized water. The black precipitate was collected by filtration and dried at 60 ℃.

2.3 Eu₂O₃ nanoparticle decorated MWNTs

Europium oxide (99.99%) was dissolved in nitric acid at 80 ℃ under continuous stirring, and then the mixed solution was heated in vacuum evaporator for evaporating redundant nitric acid. The modified MWNTs with CA were added into the europium nitrate solution, and the mixture was vibrated for 1 h. The oxalic acid and sodium hydroxide were dissolved in de-ionized water, and subsequently dropped into the MWNTs mixture solution under continuous stirring. The pH value of the mixed solution was adjusted to 6 under 70 ℃. After 1 d, the precipitate was collected by filtration and dried at 80 ℃. Finally, the MWNTs/europium xalate precursor was calcined at 750 ℃ under the protection of nitrogen.

2.4 Characterization

Infrared spectrum was measured on a Jasco 300E Infrared spectrometer. X-ray diffraction (XRD) measurements were performed using Philips PW 1710 diffractometer with Cu K_α1 radiation. The observation of scanning electron microscope (SEM) was carried out with a JSM-6700F field emission scanning electron microscope. Transmission electron microscope (TEM) analyses and energy dispersive X-ray (EDX) were conducted on a JEM-3010 transmission electron microscope of high magnification. The fluorescence spectrum was recorded with VUV-Vis luminescence spectroscopy. The excitation spectrum was observed at 610 nm, and the emission spectrum was excited at 210 nm.

3.1 Phase structure of MWNTs/Eu₂O₃ composite

The MWNTs/Eu₂O₃ samples were characterized by recording their XRD patterns, as shown in Fig.1. It is clear that the (222), (400), (440), (102) and (622) planes of Eu₂O₃ are observed at 2θ of 28.368?, 32.894?, 47.244?, and 56.066?, respectively. Furthermore, there are eight puny diffraction peaks at 2θ of 34.943?, 38.793?, 42.338?, 48.260?, 51.777?, 54.648?, 57.453?, and 58.743?, respectively. They are corresponded to (411), (232), (413), (611), (523), (514), (631), and (444) planes of Eu₂O₃, respectively, which correspond to the reported values of Eu₂O₃ well[21]. These results can be indexed to the cubic structure of Eu₂O₃.

Fig.1 XRD pattern of MWNTs/Eu₂O₃ composite

3.2 Electron microscopy

Electron microscopic images of MWNTs/Eu₂O₃ heat treated at temperature of 750 ℃ are shown in Fig.2. Fig.2(a) shows the SEM image of MWNTs/Eu₂O₃ composite. The size of nanoparticles is 20-100 nm. Fig.2(b) shows the TEM image of MWNTs/Eu₂O₃ composite. It is evident that the MWNTs are modified with single nanoparticles. In order to confirm the element presented in the coating on the surface of MWNTs, EDS was carried out. The result is shown in Fig.3. This reveals the presence of Eu, O and C on the surface of the nanotubes, which confirms the existence of Eu₂O₃ nanoparticles on the surface of MWNTs.

3.3 Mechanism of modification

From the above results, it is concluded that the MWNTs can be coated by Eu₂O₃ nanoparticles after heat treatment at 750 ℃. Modified MWNTs with Eu₂O₃ are attributed to the surface modification of MWNTs.

After the MWNTs were oxidized by mixture acid, a

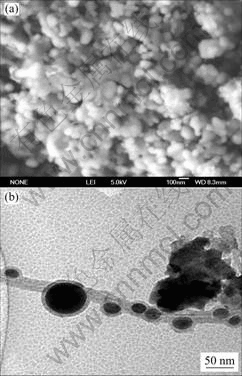

Fig.2 Image of MWNTs/Eu₂O₃ composite: (a) SEM; (b) TEM

Fig.3 EDS of MWNTs/Eu₂O₃ composite

hydroxy group at 3 444 cm^-1 and carboxyl group at 1 730 cm^-1 are introduced onto the defects of the MWNTs,as shown in curve (a) of Fig.4. From the infrared spectrum of aminated MWNTs (the curve(b) of Fig.4), it is very evident that the characteristic of the V_(C—N) stretching mode is observed at about 1 128 cm^-1. Moreover, after the MWNTs are further treated by CA, the carbonyl stretches and the C—O bond stretches are observed at  1 714 cm^-1 and  1 177 cm^-1, respectively (as shown in curve (c) of Fig.4). The peak at 1 714 cm^-1 originates from the carbonyl stretch of the carboxylic acid groups of CA, and the peak at 1 177 cm^-1 may be attributed to the C—O bond stretches of MWNTs—O—C and C—OH units. These results illuminate that the hydroxyl group, carboxyl group, amidocyanogen group, and molecules of CA are introduced onto the surface of MWNTs by surface modification.

Fig.4 Infrared spectra of MWNTs: (a) Oxidized MWNTs; (b) Aminated MWNTs; (c) Modified MWNTs (Mass ratio of CA to MWNTs is 1?1)

On one hand, the surface modification improves the chemical activity of MWNTs. More defects are produced on the walls of MWNTs because of the treatment for MWNTs with both mixture acid and ammonia, and the interaction between MWNTs and europium oxalate precursor is improved. On the other hand, CA is an important complex, and it can act as ligand for Eu³⁺ to be anchored on the surface of the MWNTs. Hence, the surface modification enhances the contact between MWNTs and precursors, and makes the deposition of Eu₂O₃ nanoparticles facilitate on the surface of MWNTs.

3.4 Fluorescence property

Fig.5 shows the VUV-Vis luminescence of pristine MWNTs and MWNTs/Eu₂O₃ composite at room temperature under the same experimental conditions. The excitation spectrum of the MWNTs/Eu₂O₃ composite (emission at 610 nm) shows that two striking excitation peaks can be observed at 210 nm and 230 nm, with the most excitation wavelength at 210 nm, but no excitation peak is observed in the pristine MWNTs. When the excitation wavelength is 210 nm, the emission spectrum of MWNTs/Eu₂O₃ composites consists of six main lines at 580, 590 592, 598, 610 and 630 nm. The strongest peak is located at 610 nm corresponding to the ⁵D₀→⁷F₂ electric dipole transition of Eu³⁺. The emission peak at 580 nm is assigned to the ⁵D₀→⁷F₀ transition of Eu³⁺. The series of emission peaks at 590, 592, and 598 nm belong to ⁵D₀→⁷F₁ magnetic-dipole allowed transition of Eu³⁺. The results illustrate that the optical property of MWNTs is improved significantly by modification of Eu₂O₃ nanoparticles.

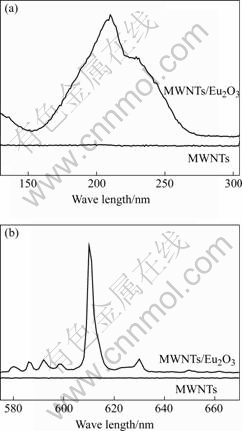

Fig.5 VUV-Vis luminescence of MWNTs and MWNTs/Eu₂O₃ composite: (a) Excitation spectrum (emission of 610 nm); (b) Emission spectrum (excitation at 210 nm)

1) The MWNTs are coated by Eu₂O₃ nanoparticle after annealed at 750 ℃.

2) The hydroxyl groups, carboxyl groups, amidocyanogen and CA molecules are introduced onto the surface of MWNTs through surface treatment.

3) The fluorescence properties of MWNTs are improved significantly through the coating of nano-europium oxide.
