Hydrothermal synthesis, characterization and optical properties of La₂Sn₂O₇:Eu³⁺ micro-octahedra

YANG Jin-yu^{1, 2}, SU Yu-chang¹, LIU Xue-ying^{1, 3}

1. School of Materials Science and Engineering, Central South University, Changsha 410083, China;

2. School of Chemistry and Materials Science, Guizhou Normal University, Guiyang 550001, China;

3. Department of Science and Technology, Guangxi University of Technology, Liuzhou 545006, China

Received 20 April 2010; accepted 25 June 2010

Abstract: Pyrochlore structure La₂Sn₂O₇:Eu³⁺ microcrystals with uniform octahedron shape were successfully synthesized via a hydrothermal route at 180 °C for 36 h. The crystal structure, particle size, morphologies, and optical properties of the as-synthesized products were investigated by XRD, TEM, SEM, EDS, FT-IR, Raman spectroscopy and PL. The effects of pH of precursor solution, precursor concentration, reaction temperature, and time were investigated. The results reveal that pH of the precursor solution not only plays an important role in determining the phase of the as-synthesized products, but also has a significant influence on the morphologies of the samples. High-quality and uniform octahedrons with an average size of about 700 nm could be easily obtained at the pH value of 12. The possible formation mechanism of octahedral-like La₂Sn₂O₇:Eu³⁺ microcrystals was briefly proposed. The photoluminescence spectra show that La₂Sn₂O₇:Eu³⁺ micro-octahedra display stronger emission in the range of 582-592 nm compared with the samples with other shapes.

Key words: pyrochlore structure; hydrothermal synthesis; growth mechanism; optical properties

1 Introduction

Pyrochlore type complex oxides[1-3] are becoming increasingly important because of their actual and potential applications in the areas of metal-insulator transitions, magnetic frustration/spin ices, magnetoresistance, superconductivity, ferroelectrics, O/F ionic conductivity, mixed conductivity, phosphors, pigments and catalysts. The lanthanum stannates La₂Sn₂O₇ have attracted considerable interest recently since they possess excellent chemical and thermal stability, as well as the ability to host rare earth ions in their crystal lattice[4]. The research results revealed that various properties of La₂Sn₂O₇ are definitely dependent on their crystal sizes, morphologies, and crystallographic structures[5-7]. Controlled preparation of La₂Sn₂O₇ is of great interest and importance. Although various methods, such as conventional solid state approach[8], sol-gel processing[9], co-precipitation route[10], and combustion method[11], have been used to prepare La₂Sn₂O₇, only hydrothermal rout has been proved to be a facial approach to fabricate La₂Sn₂O₇ nanocrystallites with uniform particle sizes, regular shapes, and pure phases. MOON et al[12] and FU et al[6] have prepared La₂Sn₂O₇:Eu³⁺ micronanospheres which emitted strong orange-red light under UV excitation. MAO et al[13] have produced La₂Sn₂O₇ nanoparticles and observed ionically conducting properties at high temperatures. The flower-like La₂Sn₂O₇ nanostructures assembled with nanorods have been fabricated[14]. Nanocubic La₂Sn₂O₇ photocatalysts with pyrochlore structure have been successfully synthesized via a one-pot hydrothermal route[5]. However, to the best of our knowledge, by far few reports have been made on the synthesis of La₂Sn₂O₇ with octahedron shape by a hydrothermal approach[7].

Herein, a La₂Sn₂O₇:Eu³⁺ micro-octahedra was fabricated with La(NO₃)₃, Eu(NO₃)₃ and SnCl₄ as starting materials via a hydrothermal process without applying any surfactants. The effects of various factors on the formation and morphology of pyrochlore La₂Sn₂O₇:Eu³⁺ crystals were systematically investigated,and a possible formation mechanism was proposed. In addition, the optical properties of the as-synthesized products were also investigated.

2 Materials and methods

2.1 Materials and preparation of samples

All the reagents in this study were analytically pure and used as-received without further purification. The synthesis of La₂Sn₂O₇:Eu³⁺ samples via the hydrothermal approach can be described as follows: appropriate amounts of La(NO₃)₃?6H₂O and Eu(NO₃)₃?6H₂O were dissolved in deionized water to form La(NO₃)₃ and Eu(NO₃)₃ solutions, respectively. Then, the required amount of Eu(NO₃)₃ solution was introduced into the La(NO₃)₃ solution to form a mixing solution ( hereafter referred to Re(NO₃)₃ solution), and the molar ratio of Eu³⁺ to La³⁺ was fixed to 5:95. The equimolars of SnCl₄?5H₂O were added in an appropriate amount of Re(NO₃)₃ solution and stirred for 10 min. Subsequently, the pH of the above solution was adjusted to a desirable value through using 4 mol/L NaOH solution as the mineralizer and the volume was tailored to 64 mL as well while stirring vigorously on a magnetic. The resulting suspension was vigorously stirred for 1 h before it was transferred into a Teflon-lined stainless steel autoclave (80 mL capacity). The autoclave was maintained at a temperature in the range of 160-200 °C for 0-36 h and cooled naturally to ambient temperature. The precipitates were filtered and washed with deionized water repeatedly, and finally dried at 100 °C for 4 h in air.

2.2 Characterization

Crystalline phase was identified by X-ray powder diffraction (XRD) using a Rigaku D/Max 2500 powder diffractometer with Cu K_α radiation (λ=1.540 6 ?). XRD patterns were recorded from 20° to 85° (2θ) with a scan rate of 4(°)/min. The morphology of the samples was observed by transmission electron microscope (TEM, Philips Tecnai 20 G2 S-TWIN) under an acceleration voltage of 200 kV and combined with energy dispersive X-ray spectroscope (SEM-EDS, FEI SIRION 200). The Fourier transform infrared (FT-IR) spectrum of the sample was recorded by a Nicolet Avatar 360 IR spectrophotometer. Raman spectrum of the sample was obtained with RFS100/S FT-Raman apparatus from Bruker. The photoluminescence spectra were measured with a Hitachi F-2500 fluorescence spectrometer (resolution: 0.5 nm) at room temperature.

3 Results and discussion

3.1 X-ray diffraction analysis and phase formation

3.1.1 Effect of pH

The crystallinity and phase of the samples were examined by powder XRD. Fig.1(a) shows XRD patterns of as-synthesized samples obtained at different pH values of the reaction solution. It should be noted that three different phases were produced at different pH values. When the pH was 8, all the reflections were indexed to the tetragonal phase SnO₂ (JCPDS 41-1445). By increasing the pH to 9 and 10, a mixture of La₂Sn₂O₇ and SnO₂ was obtained. While controlling pH at 11, all the diffraction peaks of the as-synthesized sample can be indexed well to the reference pattern (JCPDS 87-1218), and no impurity peaks can be detected, revealing that the sample possesses a pure cubic pyrochlore structure of La₂Sn₂O₇ with space group of Fd-3m (227). The XRD pattern of the sample prepared at pH 12 is similar with that of the sample obtained at pH 11. However, with increasing the pH to 13, new peaks are developed in the XRD patterns. Those peaks, indicated by square in Fig.1(a), correspond to the hexagonal phase La(OH)₃ (JCPDS 83-2034). As the pH further increases to 14, only reflection peaks corresponding to hexagonal phase La(OH)₃ are found, suggesting that a higher pH favors the formation of La(OH)₃. The EDS spectrum of the sample obtained at pH 12 is shown in Fig.1(b), a small

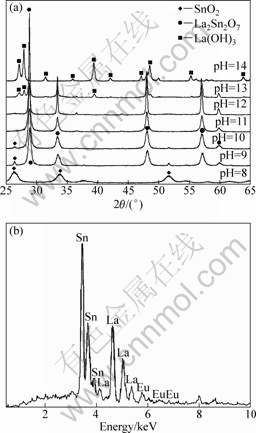

Fig.1 XRD patterns (a) of samples obtained at different pH values and with 78 mmol/L Re(NO₃)₃ solution under 180 °C for 36 h, and EDS spectrum of sample prepared at pH 12 (b)

quantity of doped Eu³⁺ ions can be found. However, as illustrated by the XRD pattern, the reflection peaks of the sample obtained at pH 12 can be perfectly indexed to a pyrochlore structure of La₂Sn₂O₇, suggesting that a small quantity of doped Eu³⁺ ions has anegligible effect on the crystallographic structures of La₂Sn₂O₇. On the basis of the above results, it can be concluded that the pH of the reaction solution plays a key role on the formation of phase-pure pyrochlore type La₂Sn₂O₇:Eu³⁺ crystals.

3.1.2 Effect of precursor concentration

The XRD patterns of the samples synthesized at pH 11 with different precursor concentrations are shown in Fig.2. When the concentration of Re(NO₃)₃ was 19.5 mmol/L, a mixture of La₂Sn₂O₇:Eu³⁺ and La(OH)₃ was prepared even though the pH value of the reaction medium was tailored to 11, as shown in Fig.2(a). However, increasing the concentration of Re(NO₃)₃ to 39 mmol/L or above favors the formation of pure La₂Sn₂O₇:Eu³⁺ pyrochlore phase (Figs.2(b)-(d)). The results illuminate that the precursor concentration also have effects on the phase composition of products.

Fig.2 XRD patterns of samples synthesized with various precursor concentrations at pH 11 under 180 °C for 36 h:     (a) 19.5 mmol/L Re(NO₃)₃; (b) 39 mmol/L Re(NO₃)₃; (c) 78 mmol/L Re(NO₃)₃; (d) 156 mmol/L Re(NO₃)₃

3.1.3 Phase formation

Based on the above results, the possible reaction process can be expressed as follows:

             (1)

                           (2)

               (3)

                   (4)

                 (5)

         (6)

    (7)

In water or weak alkaline solutions (pH≤8), due to the strong hydrolysis effort of Sn⁴⁺ ions, Sn(OH)₄ colloidal precipitation is formed, as illustrated by Eq.(1) and Eq.(2). Whereas La³⁺ ions exist in the form of [La(H₂O)_6-n(OH)_n]^3-n complexes (Eq.(3)). After hydrothermal process, Sn(OH)₄ colloidal precipitation is converted to SnO₂ crystals (Eq.(4)) while La³⁺ ions still remain in the solution as [La(H₂O)_6-n(OH)_n]^3-n complexes. However, in the strongly basic medium (pH=14), Sn(OH)₄ reacts with OH^- to form soluble Sn(OH)₆^2- species in accordance with Eq.(5). While, La³⁺ ions take on the precipitation of La(OH)₃ via Eq.(6). As La(OH)₃ is very stable under strong basic condition, La(OH)₃ crystals are formed during the hydrothermal process. It is interesting to note that the La₂Sn₂O₇ is formed under the medium-strongly alkaline condition (pH=11-12). Under those conditions, La³⁺ and Sn⁴⁺ ions react with OH^- ions to form La(OH)₃ and Sn(OH)₄ amorphous precipitations, respectively. Then La(OH)₃ and Sn(OH)₄ react with each other to form thermodynamic stable La₂Sn₂O₇ crystals through thermal dehydration, as depicted in Eq.(7). The above analysis infers that the coexistence of La(OH)₃ and Sn(OH)₄ was a prerequisite for the formation of La₂Sn₂O₇ phase.

As can be seen from Eq.(7), the mole ratio of La(OH)₃ to Sn(OH)₄ is 1:1. From the viewpoint of chemical reaction, La(OH)₃ reacts with equimolar of Sn(OH)₄ to form a single phase La₂Sn₂O₇ crystal of pyrochlore structure. The relative excess of La(OH)₃ amorphous precipitation in the system will cause a mixture of La₂Sn₂O₇ and La(OH)₃ as product after hydrothermal treatment. Conversely, when Sn(OH)₄ precursor is plentiful and there is a relative shortage of La(OH)₃, the product with mixed phases of La₂Sn₂O₇ and SnO₂ will be obtained. It can be inferred that the mole ratio (R) of La(OH)₃ to Sn(OH)₄ in precursor solution is a key factor for the phase composition of product. R can be calculated via the following equation which is derived from Eq.(1), Eq.(5) and Eq.(6)[15]:

               (8)

where c₁ and c₂ are the concentrations of Re(NO₃)₃ and SnCl₄, respectively; K_sp1 and K_sp2 are the solubility products of Re(OH)₃ and Sn(OH)₄, respectively; and K is the equilibrium constant of Eq.(5).

As inferred by Eq.(8), R depends on the concentration of the starting materials and the pH of reaction solution. The calculated values of R under different conditions are listed in Table 1. Based on the calculated values of R under normal state conditions, the phase compositions of products were estimated according to the chemical equilibrium principles and the detection limit of XRD, as shown in Table 1. There is deviation between the estimated phase compositions to the actual phase compositions since the calculated R is obtained under the normal state. Compared with the experimental results, a similar trend in the change of phases with pH value and precursor concentration is observed from the estimated results, as shown in Table 1. The above results demonstrate unambiguously that the mole ratio of La(OH)₃ to Sn(OH)₄ in precursor solution plays a crucial role in forming the single-phase La₂Sn₂O₇.

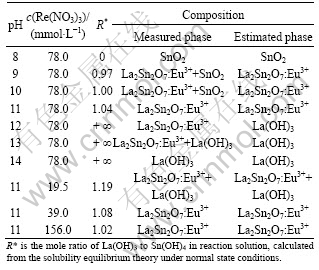

Table 1 R and phase compositions at different pH and concentrations

3.1.4 Effect of reaction temperature

The effect of the reaction temperature on the formation of crystalline La₂Sn₂O₇ is illuminated by XRD patterns in Fig.3. The pH, the concentration of Re(NO₃)₃, and time were maintained at 11, 39 mmol/L, and 18 h, respectively. The XRD pattern shows that the sample obtained at 160 °C is a mixture of La(OH)₃ crystals (JCPDS 83-2034) and amorphous SnO₂. The diffraction peaks of the sample obtained at 180 °C are indexed to La₂Sn₂O₇ phase (JCPDS 87-1218), and no impurity peaks are detected. These results confirmed that

Fig.3 XRD patterns of samples produced at pH 11 with 39 mmol/L Re(NO₃)₃ solution under different temperatures for 18 h: (a) 160 °C; (b) 180 °C; (c) 200 °C

La₂Sn₂O₇ phase began to appear in the temperature range of 160-180 °C and was formed completely at 180 °C. Elevating reaction temperature to 200 °C causes an increase of diffraction peak intensity originated from the improved crystallinity.

3.1.5 Effect of reaction time

Fig.4 shows the XRD patterns of the time-series samples synthesized at pH 11 with 39 mmol/L Re(NO₃)₃ solution under 180 °C. No diffraction peak appears for the sample prepared by precipitation, indicating that the sample is amorphous. Increasing time of hydrothermal treatment to 2 h reveals significant differences in the XRD pattern. The diffraction peak of La₂Sn₂O₇ (222) plane appeared at 28.79° although the major diffraction peaks corresponding to the La(OH)₃ could be observed. From a kinetic viewpoint, this suggests precipitation of La(OH)₃ prior to La₂Sn₂O₇. When the reaction was carried out for 8 h or more, only La₂Sn₂O₇ could be detected by XRD, indicating that La(OH)₃ and SnO₂ had been transformed completely into La₂Sn₂O₇. With increasing the reaction time, the peak-width decreases and the peak intensity increases while the peaks position kept constant, revealing that the crystal size increases and the crystallinity of La₂Sn₂O₇:Eu³⁺ becomes better.

Fig.4 XRD patterns of samples prepared at pH 11 with 39 mmol/L Re(NO₃)₃ solution under 180 °C for different hydrothermal treatment time

The above results demonstrate that a longer hydrothermal reaction time at a higher temperature favors the formation and crystallization of the thermodynamically stable La₂Sn₂O₇:Eu³⁺.

3.2 Morphology and growth mechanism

3.2.1 Electron microscopy

To further explore the effects of the pH of precursor solutions, reaction time, and precursor concentration on sizes and shapes of the samples, SEM and TEM were used to characterize the as-synthesized La₂Sn₂O₇:Eu³⁺ crystals. SEM and TEM images are shown in Fig.5.

Fig.5 TEM and SEM images of as-synthesized samples at 180 °C with different pH values, Re(NO₃)₃ concentration, and hydrothermal treatment time: (a) TEM, pH 11, 78 mmol/L, 36 h; (b) SEM, pH 12, 78 mmol/L, 36 h; (c) SEM, pH 13, 78 mmol/L, 36 h; (d) TEM, pH 11, 39 mmol/L, 8 h; (e) TEM, pH 11, 39 mmol/L, 12 h; (f) TEM, pH 11, 39 mmol/L, 24 h; (g) TEM, pH 11, 39 mmol/L, 36 h; (h) SEM, pH 11, 156 mmol/L, 36 h

The TEM image of La₂Sn₂O₇:Eu³⁺ derived from a pH 11 precursor solution in the presence of 78 mmol/L Re(NO₃)₃ solution at 180 °C for 36 h is shown in Fig.5(a). It is shown that the sample exhibits a mixture of frustum of pyramids-like crystals and irregular crystals with an average diameter of about 150 nm. However, when the pH was tailored to 12 while other parameters kept constant, the morphology of products dramatically changes to perfect 3D octahedron with an average size of 700 nm, as shown in Fig.5(b). Once the pH value was modulated at 13, the majority of products take on the shape of octahedron (Fig.5(c)). When the pH and the concentration of Re(NO₃)₃ were maintained at 11 and 39 mmol/L, respectively, it was clearly shown that the sample obtained at 8 h displays irregular nanospheres shape with an average diameter of about 90 nm (Fig.5(d)). Fig.5(d) also demonstrates that the sphere-like structure was formed by the assembly of nanoparticles with size of around 12 nm. With increasing the hydrothermal treatment time to 12 h, the TEM image shown in Fig.5(e) displays that the sample has similar morphology to the sample obtained at 8 h, except that the spheres are assembled by well-crystalline nanocrystals with size of about 16 nm. Fig.5(f) shows that the sample obtained by hydrothermal treatment for 24 h possesses irregular frustum of pyramids-like morphology with size of about 48 nm. When the time of hydrothermal treatment was prolonged to 36 h, the as-synthesized La₂Sn₂O₇:Eu³⁺ nanocrystals with similar morphology to the sample obtained at 24 h were observed in Fig.5(g). The average size of crystals is about 50 nm. The SEM image of sample obtained from a pH 11 precursor solution in the presence of 156 mmol/L Re(NO₃)₃ at 180 °C for 36 h is shown in Fig.5(h). It is obvious that the sample presents irregular polyhedral shape with wide size of 700-3 000 nm.

It can be inferred from those TEM and SEM images that the size of products is mostly determined by both the precursor concentration and the pH of reaction solutions, even though a longer hydrothermal reaction time favors the formation of well-crystallized products. Especially, the pH values of the reaction solutions do have significant effects on the fabrication of La₂Sn₂O₇:Eu³⁺ with octahedral morphology.

3.2.2 Growth mechanism

Generally, chemical growth of materials inevitably involves the process of precipitation of a solid phase from solution which basically consists of a nucleation step followed by particle growth stages. The surface energy of the crystallographic faces of the seeds strongly influences the anisotropic growth patterns of the crystals. And it can be altered by controlling the concentration of OH^- ions that are adsorbed onto surfaces of the growing crystallites[16]. pH has been widely used to stabilize certain faces of nanocrystals by selective adhesion to fabricate crystals with cube-like, sheet-like, and rod-like shapes[17-19]. In the present case, three-dimensional clusters with critical sizes were first formed as La₂Sn₂O₇ nuclei and then further grew into crystallites. Under an basic condition (pH=11), the lone electron pairs in O atoms could strongly interact with the surface of La₂Sn₂O₇ nuclei and preferably adhere to some special crystalline faces due to the lager atomic densities of the crystallite faces. However, when the pH of precursor solution was increased to a higher value (pH≥12), a large amount of OH^- ions were presented in solution, and each face of the crystallite has almost the same probability to generate active sites, leading to the homogeneous absorption of OH^- ions. As a capping agent, the adsorbed OH^- generated the shielding effect to slow the growth of the adsorbed crystal faces, leading to the formation of frustum of pyramids-like or octahedral-like La₂Sn₂O₇:Eu³⁺ crystals.

On the basis of the above analysis results, a schematic illustration of the formation mechanism of La₂Sn₂O₇:Eu³⁺ is proposed in Fig.6.

Fig.6 Schematic illustration of formation mechanism of samples with different phases and shapes (n denotes the number of precipitates)

3.3 Optical properties

3.3.1 FT-IR and Raman analysis

Fig.7(a) shows the FT-IR spectrum of the octahedral La₂Sn₂O₇:Eu³⁺ crystals. In the range of 1 300-400 cm^-1, only two broad bands are clearly observed. The absorption band at 599 cm^-1 corresponds to the Sn—O stretching vibration in the octahedral SnO₆ and the strong stretching vibration of La—O is located at 418 cm^-1. The FT-IR spectrum of the octahedral La₂Sn₂O₇:Eu³⁺ crystals shows a small blue (or red) shift as compared with other reports[6, 13], it may result from the differences in the morphology, size, and Eu³⁺ doping.

According to group theoretical analysis[20], the pyrochlore structure possesses six Raman active modes (Γ=A_1g+E_g+4F_2g). The observed Raman spectrum of the octahedral La₂Sn₂O₇:Eu³⁺ crystals is presented in Fig.7(b). The modes at 300, 340, 398, 501, 550, and 615cm^-1 can be assigned to F_2g, E_g, F_2g, A_1g, F_2g, and F_2g, respectively. It should be noted that an obvious peak

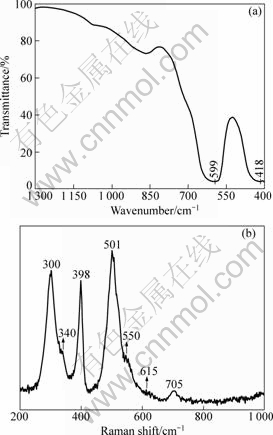

Fig.7 FT-IR spectrum (a) and Raman spectrum (b) of octahedral La₂Sn₂O₇:Eu³⁺ microcrystals

located at 705 cm^-1 appears in the Raman spectrum, which corresponds to the distortion of the SnO₆ octahedral local structure[21]. A similar peak was also observed in other pyrochlore structures[22-23].

3.3.2 Photoluminescence properties

The luminescence characteristics of La₂Sn₂O₇:Eu³⁺ crystals with different shapes were explored, as shown in Fig.8. Under the excitation of 270 nm, the emission spectra of the irregular nanosphere-like, frustum of pyramid-like, and octahedral-like La₂Sn₂O₇:Eu³⁺ nano-/micro-structure are denoted as a, b, and c in Fig.8, respectively. All samples exhibit a similar orange-red luminescence. The strongest emission peak at 582-592 nm is originated from the magnetic dipole ⁵D₀-⁷F₁ transition of Eu³⁺, while the stronger peak line at 616 nm can be assigned to the electric dipole transition of ⁵D₀-⁷F₂. The other peaks correspond to the transitions from ⁵D₀ level to ⁷F_J (J=0, 1, 2, 3) levels of Eu³⁺ activators, as shown in Fig.8. The emission spectra of the three samples are similar in shape and differ in the band intensity. Generally, the fluorescence intensity ratio of ⁵D₀-⁷F₂ to ⁵D₀-⁷F₁, called the asymmetry ratio, depends strongly on the local symmetry of Eu³⁺ ions, and a higher symmetry of the crystals field around Eu³⁺ ions will result in a lower asymmetry ratio. La³⁺ ion is located at the site with D_3d symmetry in La₂Sn₂O₇ lattice. Due to the charge and ionic radii, Eu³⁺ will prefer to substitute La³⁺ rather than Sn⁴⁺ in the La₂Sn₂O₇ matrix. The enhanced and sharpened emissions ⁵D₀-⁷F₁ of Eu³⁺ in the La₂Sn₂O₇ host crystals could be reasonably explained by the allowed magnetic dipole transition due to the presence of an inversion center. The asymmetry ratios of the irregular nanosphere-like, frustum of pyramid-like, and octahedral-like La₂Sn₂O₇:Eu³⁺ are 0.450, 0.395, and 0.301, respectively. The lower asymmetry ratio of the octahedral-like La₂Sn₂O₇:Eu³⁺ compared with the irregular nanospheres can be explained by the increase of local symmetry of Eu³⁺ ions which may be caused by the oriented growth of the samples. As reported in the previous works, the dipole field was not only influenced by the typical dimensions and dielectric constants of the hosts but also their shape[24-26]. The octahedral-like La₂Sn₂O₇:Eu³⁺ has higher symmetry shape, and less Eu³⁺ ions occur on the surface compared with the other samples, leading to higher symmetry of dipole filed surrounding the Eu³⁺ ions and stronger emission intensity. Furthermore, for the irregular nanosphere-like La₂Sn₂O₇:Eu³⁺, three lines in the emission spectrum at 587, 594, and 601 nm which assign to ⁵D₀-⁷F₁ transition can be observed, indicating that a proportion of Eu³⁺ ions was not located in the D_3d symmetry site, which may be resulted from the weak crystallinity[27-28]. It was reported the microstructure and size of materials could influence luminescence of phosphor[29-31], which is in good agreement with our results. In our case, the octahedral-like La₂Sn₂O₇:Eu³⁺ has more regular shape, higher crystallinity, and larger size compared with the other samples, resulting in the less existence of OH^- groups，Eu³⁺ ions, and defects on the surface. It is well known that the excited state of the Eu³⁺ ions can decay

Fig.8 Room-temperature emission spectra of nanosphere-like, frustum of pyramid-like, and 3D octahedron-like La₂Sn₂O₇:Eu³⁺ nano/microcrystals obtained at 180 °C with different conditions: (a) pH 11, 39 mmol/L, 8 h; (b) pH 11, 78 mmol/L, 36 h; (c) pH 12, 78 mmol/L, 36 h

nonradiatively by the OH^- group vibrations of La/Sn-OH linkages adhered on the surface and the excitation energy can be dissipated through cross-relaxation or quenching by defect sites. The less OH^- and defects on the surface, the more intense PL spectrum will be achieved. The results reveal that the shape anisotropy affects the intensity and profile of emission spectra.

4 Conclusions

1) The pyrochlore type La₂Sn₂O₇:Eu³⁺ nano-/micro- crystals were successfully synthesized via a hydrothermal route.

2) The possible formation mechanism of octahedral-like La₂Sn₂O₇:Eu³⁺ with pyrochlore structure was proposed. It is found that the existence of La(OH)₃ and Sn(OH)₄ in the precursor solution is a prerequisite for the formation of La₂Sn₂O₇ phase and the pH value of the reaction solution plays a key role in the fabrication of La₂Sn₂O₇:Eu³⁺ with octahedral morphology.

3) The octahedral-like La₂Sn₂O₇:Eu³⁺ displays improved luminescence than other La₂Sn₂O₇:Eu³⁺ crystals, which would be a promising reddish phosphor for applications in lamps and displays.

References

[1] SICKAFUS K E, MINERVINI L, GRIMES R W, VALDEZ J A, ISHIMARU M, LI F, MCCLELLAN K J, HARTMANN T. Radiation tolerance of complex oxides [J]. Science, 2000, 289: 748-751.

[2] REN Qing-li, LUO Qiang, CHEN Shou-tian. Optimization of dielectric constant temperature coefficient of pyrochlores containing bismuth [J]. Transactions of Nonferrous Metals Society of China, 2005, 15(2): 252-256.

[3] XUE Ya-hong, LIU Rui-quan, WANG Ji-de, LI Zhi-jie. Structure and ionic conductivities of oxides with a pyorchlore-type structure [J]. Progress in Chemistry, 2005, 17(4): 672-677. (in Chinese).

[4] ALEMI A, KALAN R E. Preparation and characterization of neodymium tin oxide pyrochlore nanocrystals by the hydrothermal method [J]. Radiation Effects and Defects in Solids, 2008, 163(3): 229-236.

[5] ZENG Jia, WANG Hao, ZHANG Yong-cai, ZHU Man-kang, YAN Hui. Hydrothermal synthesis and photocatalytic properties of pyrochlore La₂Sn₂O₇ nanocubes [J]. Journal of Physical Chemistry C, 2007, 111(32): 11879-11887.

[6] FU Z L, YANG H K, MOON B K, CHOI B C, JEONG J H. La₂Sn₂O₇:Eu³⁺ micronanospheres: Hydrothermal synthesis and luminescent properties [J]. Crystal Growth and Design, 2009, 9(1): 616-621.

[7] YANG Jin-yu, SU Yu-chang. Novel 3D octahedral La₂Sn₂O₇:Eu³⁺ microcrystals: Hydrothermal synthesis and photoluminescence properties [J]. Materials Letters, 2010, 64(3): 313-316.

[8] LIAN J, HELEAN K B, KENNEDY B J, WANG L M, NAVROTSKY A, EWING R C. Effect of structure and thermodynamic stability on the response of lanthanide stannate- pyrochlores to ion beam irradiation [J]. Journal of Physical Chemistry B, 2006, 110(5): 2343-2350.

[9] CHENG Hua, WANG Li-ping, LU Zhou-guang. A general aqueous sol-gel route to Ln₂Sn₂O₇ nanocrystals [J]. Nanotechnology, 2008, 19(2): 025706.

[10] WANG Shu-mei, LU Meng-kai, ZHOU Guang-jun, ZHOU Yuan-yuan, ZHANG Hai-ping, WANG Shu-fen, YANG Zhong-sen. Synthesis and luminescence properties of La_2-xRE_xSn₂O₇ (RE=Eu and Dy) phosphor nanoparticles [J]. Materials Science and Engineering B, 2006, 133(1-3): 231-234.

[11] WANG Shu-mei, XIU Zhi-liang, LU Meng-kai, ZHANG Ai-yu, ZHOU Yuan-yuan, YANG Zhong-sen. Combustion synthesis and luminescent properties of Dy³⁺-doped La₂Sn₂O₇ nanocrystals [J]. Materials Science and Engineering B, 2007, 143(1-3): 90-93.

[12] MOON J, AWANO M, MAEDA K. Hydrothermal synthesis and formation mechanisms of lanthanum tin pyrochlore oxide [J]. Journal of the American Ceramic Society, 2001, 84(11): 2531-2536.

[13] MAO Ya-chun, LI Guang-she, XU Wei, FENG Shou-hua. Hydrothermal synthesis and characterization of nanocrystalline pyrochlore oxides M₂Sn₂O₇ (M=La, Bi, Gd or Y) [J]. Journal of Materials Chemistry, 2000, 10(2): 479-482.

[14] DING Gao-song, ZHU Lu-ming, YANG Hong, YU Gui-xia, ZHU Hong-liang, YAO Kui-hong. Hydrothermal synthesis and characterization of flowe-like lanthanum stannate nanostructures [J]. Journal of Zhejiang Sci-Tech University, 2007, 24(5): 557-561. (in Chinese).

[15] SPEIGHT J. Lange's handbook of chemistry [M]. New York: McGraw-Hill, 2005.

[16] LI Hai-bin, LIU Guo-cong, DUAN Xue-chen. Monoclinic BiVO₄ with regular morphologies: Hydrothermal synthesis, characterization and photocatalytic properties [J]. Materials Chemistry and Physics, 2009, 115(1): 9-13.

[17] XU Shu-ling, SONG Xin-yu, FAN Chun-hua, CHEN Guo-zhu, ZHAO Wei, YOU Ting, SUN Si-xiu. Kinetically controlled synthesis of Cu₂O microcrystals with various morphologies by adjusting pH value [J]. Journal of Crystal Growth, 2007, 305(1): 3-7.

[18] DJERDJ I, GARNWEITNER G, SU D S, NIEDERBERGER M. Morphology-controlled nonaqueous synthesis of anisotropic lanthanum hydroxide nanoparticles [J]. Journal of Solid State Chemistry, 2007, 180(7): 2154-2165.

[19] REN Yang, MA Jun-feng, WANG Yong-gang, ZHU Xiao-yi, LIN Bo-tao, LIU Jun, JIANG Xiao-hui, TAO Jian-tao. Shape-tailored hydrothermal synthesis of CdMoO₄ crystallites on varying pH conditions [J]. Journal of the American Ceramic Society, 2007, 90(4): 1251-1254.

[20] GUPTA H C, BROWN S, RANI N, GOHEL V B. A lattice dynamical investigation of the Raman and the infrared frequencies of the cubic A₂Sn₂O₇ pyrochlores [J]. International Journal of Inorganic Materials, 2001, 3(7): 983-986.

[21] ZHANG F X, MANOUN B, SAXENA S K, ZHA C S. Structure change of pyrochlore Sm₂Ti₂O₇ at high pressures [J]. Applied Physics Letters, 2005, 86(18): 181906.

[22] GARG N, PANDEY K K, MURLI C, SHANAVAS K V, MANDAL B P, TYAGI A K, SHARMA S M. Decomposition of lanthanum hafnate at high pressures [J]. Physical Review B, 2008, 77(21): 214105.

[23] FUENTES A F, BOULALLYA K, MACZKA M, HANUZA J, AMADOR U. Synthesis of disordered pyrochlores, A₂Ti₂O₇ (A=Y, Gd and Dy), by mechanical milling of constituent oxides [J]. Solid State Sciences, 2005, 7(4): 343-353.

[24] LI Yan-ping, ZHANG Jian-hua, ZHANG Xia, LUO Yong-shi, LU Shao-zhe, REN Xin-gang, WANG Xiao-jun, SUN Ling-dong, YAN Chun-hua. Luminescent properties in relation to controllable phase and morphology of LuBO₃:Eu³⁺ nano/microcrystals synthesized by hydrothermal approach [J]. Chemistry of Materials, 2009, 21(3): 468-475.

[25] TABOR C, MURALI R, MAHMOUD M, EL-SAYED M A. On the use of plasmonic nanoparticle pairs as a plasmon ruler: The dependence of the near-field dipole plasmon coupling on nanoparticle size and shape [J]. Journal of Physical Chemistry A, 2008, 113(10): 1946-1953.

[26] HUANG Yan, YE Hong-qi, ZHUANG Wei-dong, HU Yun-sheng, ZHAO Chun-lei, LI Cui, GUO Song-xia. Preparation of Y₂O₃:Eu³⁺ phosphor by molten salt assisted method [J]. Transactions of Nonferrous Metals Society of China, 2007, 17(3): 644-648.

[27] SRIVASTAVA A M. Chemical bonding and crystal field splitting of the Eu^{3+ 7}F₁ level in the pyrochlores Ln₂B₂O₇ (Ln=La³⁺, Gd³⁺, Y³⁺, Lu³⁺; B=Sn⁴⁺, Ti⁴⁺) [J]. Optical Materials, 2009, 31(6): 881-885.

[28] ZHANG Ming, LI Xin-hai, WANG Zhi-xing, HU Qi-yang, GUO Hua-jun. Synthesis of Y₂O₃:Eu³⁺ phosphors by surface diffusion and their photoluminescence properties [J]. Transactions of Nonferrous Metals Society of China, 2010, 20(1): 115-118.

[29] CHEN Di, SHEN Guo-zhen, TANG Kai-bin, LIANG Zhen-hua, ZHENG Hua-gui. AOT-microemulsions-based formation and evolution of PbWO₄ crystals [J]. Journal of Physical Chemistry B, 2004, 108(31): 11280-11284.

[30] JOSEPH L K, DAYAS K R, DAMODAR S, KRISHNAN B, KRISHNANKUTTY K, NAMPOORI V P N, RADHAKRISHNAN R. Photoluminescence studies on rare earth titanates prepared by self-propagating high temperature synthesis method [J]. Spectrochimica Acta Part A, 2008, 71(4): 1281-1285.

[31] LIU Guo-cong, DUAN Xue-chen, LI Hai-bin, DONG Hui. Hydrothermal synthesis, characterization and optical properties of novel fishbone-like LaVO₄:Eu³⁺ nanocrystals [J]. Materials Chemistry and Physics, 2009, 115(1): 165-171.

八面体状La₂Sn₂O₇:Eu³⁺微晶的水热合成、表征与光学性能

杨锦瑜^{1, 2}，苏玉长¹，刘雪颖^{1, 3}

1. 中南大学 材料科学与工程学院，长沙 410083；

2. 贵州师范大学 化学与材料科学学院，贵阳 550001；

3. 广西工学院 科技处，柳州 545006

摘  要：采用水热法在180 ^oC下反应36 h合成了具有规整八面体状的烧绿石结构La₂Sn₂O₇:Eu³⁺微晶。采用XRD、TEM、SEM、EDS、FT-IR、Raman和PL对合成产物的晶体结构、颗粒尺寸、形貌和光学性能进行了研究。对前驱体溶液的pH值、前驱体浓度、水热反应温度和水热反应时间等工艺条件的影响进行了研究。研究结果证实前驱体溶液的pH值不仅决定合成产物的物相结构，而且对合成产物的形貌也具有显著的影响。在pH值为12时可以获得平均尺寸为700 nm的规整八面体状晶体。提出了八面体状La₂Sn₂O₇:Eu³⁺微晶的可能形成机理。光致发光光谱显示：八面体状La₂Sn₂O₇:Eu³⁺微晶与其它形貌的样品相比较，在582-592 nm区域具有更强的发光强度。

关键词：烧绿石结构；水热合成；生长机理；光学性能
