Trans. Nonferrous Met. Soc. China 28(2018) 2114-2124

Parameters affecting reaction rate and conversion of TiO₂ chlorination in a fluidized bed reactor: Experimental and modeling approach

Hossein BORDBAR, Hossein ABEDINI, Ali Akbar YOUSEFI

Iran Polymer and Petrochemical Institute, P. O. Box 14965-115, Tehran, Iran

Received 5 September 2017; accepted 9 January 2018

Abstract: Pilot scale chlorination of TiO₂ was carried out with CO as reducing agent. The experimental analysis and modeling of chlorination process of TiO₂ in the presence of CO and Cl₂ in a semi-continuous fluidized bed reactor were aimed. Chlorination process was continuously monitored by measuring the amount of produced TiCl₄ with time. The effects of different operating parameters including chlorination temperature, feedstock particle size and size distribution, amount of feedstock and Cl₂ and CO flow rates on the conversion were systematically investigated. A gradual increase in chlorination temperature led to monotonous increase of conversion rate. Conversion decreased with increased particle size of feedstock. An increase in loaded feedstock led to a decrease in reaction conversion. A model was proposed to predict conversion, particle size distribution and mole fraction of components in gas phase as reaction proceeds. A good agreement between conversions predicted by the model and experimental data under various operating conditions was observed.

Key words: chlorination; TiCl₄; modeling; particle size distribution; conversion

1 Introduction

Titanium (Ti) is a metal with the properties of extreme stiffness, lightweight, high resistance against corrosion, low electrical and thermal conductivity, which make it a useful element for widespread applications [1-3]. Almost 95% of titanium is used for production of white TiO₂ pigment [4]. Titanium tetrachloride (TiCl₄) is an intermediate which is used for production of TiO₂ pigment and titanium sponge [5-8].

Rutile (TiO₂) and ilmenite (FeO·TiO₂) are the two principal ores of titanium. Owing to its high titanium content and low levels of impurities, natural rutile has been used as preferred feedstock for the production of titanium dioxide pigment. The principle method in titanium ores treatment is concentration via conventional mineral beneficiation techniques. These methods include Kroll process, sulphate process and chloride process [9-13]. The chloride process is the prevalent process as it generates superior pigment with considerably fewer wastes. Commercial TiCl₄ is produced via fluidized-bed chlorination of rutile or titanium feedstock at 1000-1050 °C in the presence of carbon as reducing agent. The chlorination of titaniferous ores/slags is performed by chlorine gas. fluidized beds provide uniform temperature distributions, low pressure drops, and high heat/mass transfer rates in these processes [14-16].

BERGHOLM [17] studied the chlorination of titania feedstock with carbon and CO and found that the presence of carbon significantly improved the reaction rate. DUNN [18] investigated the chlorination of rutile with carbon and carbon monoxide and reported that small amounts of CO do not affect the reaction rate significantly. However, large additions tend to have a sharp negative effect on reaction kinetics [18]. The effect becomes more serious as carbon particle size decreases and the authors suspected that the CO absorbs onto the carbon surface which in turn prevents the other reagents from reaching the surface. BARIN and SCHULER [19] studied the solid carbon impact on the TiO₂ chlorination in the presence of C1₂ and CO-CO₂-C1₂ gas mixtures. These researchers used discs of rutile and graphite. The rate of chlorination of TiO₂ was observed to be 40 to 50 times faster with TiO₂-C contact than that without carbon. The acceleration of the chlorination was attributed to the kinetic effect of solid carbon. In the case of impact of solid carbon, it is demonstrated that C1₂ is chemisorbed at active sites on the carbon surface and forms C-C1 complexes which, subsequently dissociated and desorbed into the gas phase above 673 K [19].

Studies made about the C1₂-Ni and Cl₂-Ti reactions in the presence of solid carbon also showed that activated chlorine species are generated on the carbon surface [19]. These species which are in the form of C1 atoms or C1-containing radicals or activated Cl₂ molecules accelerate the chlorination of the metals under investigation [19]. DEN HOED and NELL [20] pointed out that the degree of chlorination increased with increasing carbon content, but decreased at 15% carbon. YOUN and PARK [21] developed a model for fluidized bed chlorination of rutile with coke for production of titanium tetrachloride. SOHN et al [22] investigated the fluidized bed chlorination of natural rutile in CO-Cl₂ mixtures. A rate equation was determined in the temperature range of 950-1150 °C. RHEE and SOHN [23] studied the chlorination of ilmenite with CO and proposed that the iron in ilmenite reacted with Cl₂ first and the liberated O₂ is removed by carbon monoxide. They claimed that the reaction proceeds rapidly at first but then slows down. SOHN and ZHOU [24,25] studied the chlorination kinetics of titania slag with chlorine gas and petroleum coke. A rate equation was established incorporating the effects of temperature, chlorination partial pressure and initial particle size. MOODLEY et al [26,27] chlorinated two titania slags, rutile and synthetic rutile with petroleum coke and CO in a small bubbling fluidized bed reactor. Chlorination rate was the highest at 1000 °C; rutile chlorination significantly increased as temperature was increased from 800 to 1000 °C. At 1000 °C, synthetic rutile had the highest chlorination conversion. NIU et al [28] investigated the thermodynamics and kinetics of Kenya natural rutile carbo-chlorination in a fluidized-bed. The thermo- dynamic calculations of TiO₂-C-Cl₂ system showed the stable presence of titanium tetrachloride and carbon monoxide when C was excess in the solid phase. The appropriate reaction conditions were as follows: reaction temperature of 950 °C, reaction time of 40 min, carbon content of 30% in rutile, natural rutile particle size of 96 μm, petroleum coke size of 150 μm, and chlorine flow of 0.036 m³/h [28]. XIONG et al [29] investigated the effects of carbon/slag molar ratio, chloride amount and temperature on equilibrium molar ratio of CO to CO₂ for off-gas produced by carbochlorination of titanium slag by thermodynamic calculation of equilibrium components of off-gas. Recently, numerous research works have focused on the selective chlorination process to achieve high purity rutile feedstocks [30-36]. WANG and YUAN [37] studied the reductive degree and rate of Bama ilmenite concentrate at different temperatures ranging from 850 to 1400 °C. Due to the presence of some impurities the degree of ilmenite reduction was decreased. They reported that the rate-controlling steps became different at different temperatures. XIONG et al [38] investigated the purification of crude titanium tetrachloride (TiCl₄) through removing vanadium impurities. VOCl₃ was converted to insoluble VOCl₂ by reducing TiCl₄ to TiCl₃ through the reaction of Al powder with TiCl₄ in the presence of white mineral oil. YUAN et al [39] used a multistage series combined fluidized bed reactor assembly to prepare TiCl₄ in a pilot scale. The combined fluidized bed reactor showed proper anti-agglomeration ability because of MgCl₂ and CaCl₂ accumulation on the surface of unreacted slag which left the reactor [39].

A laboratory study on the chlorination of anatase was carried out with CO as reducing agent. This work is coupled with the modeling of chlorination process of TiO₂ in the presence of CO and Cl₂ in a semi-continuous fluidized bed reactor. The proposed model can predict the conversion, the particle size distribution of TiO₂ particles and mole fraction of gases in the reactor. The conversion rate predicted by the modeling results was compared with the experimental data obtained under various operating conditions. The effect of different operating parameters on the conversion was investigated. The conversion, and the amount of TiCl₄ produced during the chlorination process was continuously monitored as a function of time which provides an accurate estimation of chlorination process and chlorination product. This continuous monitoring of the TiCl₄ production adopted in this work has higher accuracy for determination of amount of TiCl₄ produced and distinguishes the present work from other works in the literature. The novelty of present work is that the conversion of chlorination was continuously monitored with reaction time by measuring amount of TiCl₄ in a graduated cylinder obtained during the reaction.

2 Experimental

2.1 Materials

The TiO₂ (anatase) used in this work was an EC E171 grade provided by EINECS, India. The typical specifications of the TiO₂ (anatase) as determined by X-ray florescence (XRF) analysis are listed in Table 1. The size distribution of anatase particles is given in Table 2. The CO was used as reducing agent. The chlorine, carbon monoxide, and nitrogen gases were all supplied by Roham Gas Co., Ltd., Iran.

Table 1 Typical specifications of TiO₂ (anatase) used in this work (mass fraction, %)

Table 2 Size distribution of anatase

2.2 Apparatus and procedures

The chlorination of anatase was carried out in a fluidized-bed reactor which consisted of a gas inlet system, a quartz reactor and a product gas cooling system. A schematic diagram of the experimental apparatus used in this work is shown in Fig. 1. The height of quartz reactor was 120 cm with internal diameters of 25 mm and 50 mm for lower and upper sections of the reactor, respectively. The internal diameter of upper section of reactor was adjusted to reduce the flow velocity and minimize the leaving particles from the reactor.

An electric resistance furnace surrounds the quartz tube to ensure the required reaction temperature. In order to uniformly distribute the fluidizing gas, a porous disk was placed in the lower part of the quartz tube. The particulate feedstock containing titanium was poured on the distributer. The gas flow rate was measured using rotameters. Gas mixed, and entered fluidized-bed where they were heated. TiO₂ feedstock was charged into the reactor at first, and then the N₂ in the reactor was driven off by pumping nitrogen gas. After temperature reached the setting point, the nitrogen gas flew into the reactor was gradually decreased and replaced by the chlorine and CO gases. After the holding time elapsed, nitrogen was increased instead chlorine gas to drive residual chlorine gas.

At the end of each test, the system was cooled at a controlled cooling rate so as to prevent any thermal stress and/or shock in the reactor system. The chlorinated slag was removed and weighed when its temperature fell down. The obtained TiCl₄ was collected in a vessel and by probing its production with time, the reaction rate and the conversion were measured. Then, attempt was made to calibrate the product obtained by weighing the obtained TiCl₄.

The final degree of conversion (X_f) was calculated by the following equations:

                        (1)

m_chlorinated=m_initial-m_bed                             (2)

where m_chlorinated is the chlorinated mass (g), m_initial is the mass of initial feedstock (g), and m_bed is the mass of feedstock remaining in the bed (g). The ultimate conversion at the end of chlorination process was determined by above equations. Then, the conversion rate (X) at any time was determined from ultimate conversion (X_f) at the end of chlorination process and the amount of TiCl₄ produced at that time () by continuous monitoring.

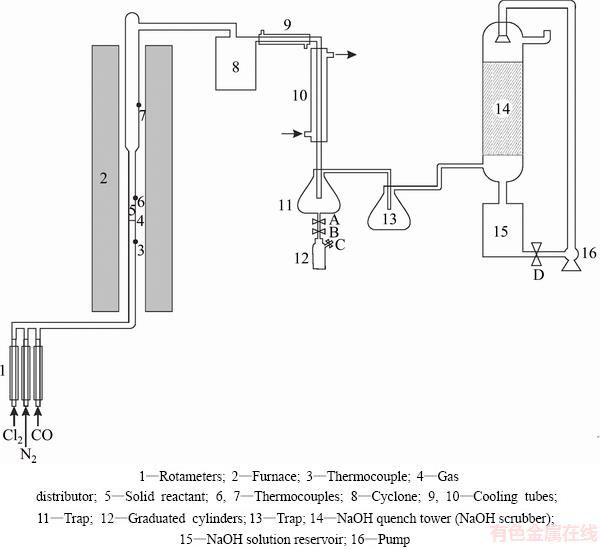

Fig. 1 Schematic diagram of experimental apparatus used in this work

The conversion at any time was calculated by the following equation:

                              (3)

where  is the mass of TiCl₄ produced at the end of chlorination process.

The parameters of the experiment set are given in Tables 3-7. The effects of operational parameters such as chlorine gas flow rate (Table 3), amount of feedstock (Table 4), CO gas flow rate (Table 5), feedstock particle size distribution (Table 6) and reaction temperature (Table 7) on the efficiency and productivity of the TiCl₄ product were studied in this work. Moreover, attempt was made to simulate the chlorination process of titanium containing feedstock by mathematical modeling, and the results were compared with the experimental data obtained from chlorination process.

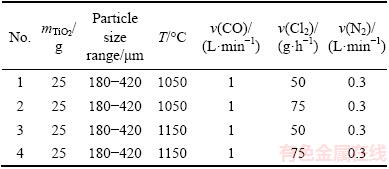

Table 3 Effect of chlorine gas flow rate on chlorination process

Table 4 Results of amount of feedstock

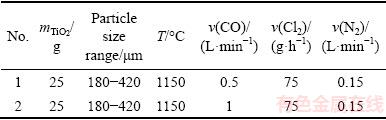

Table 5 Effects of CO flow rate on chlorination process

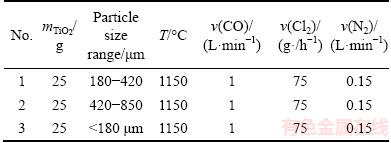

Table 6 Parameters of chlorination at 1150 °C for different size distributions

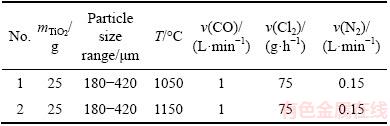

Table 7 Parameters of chlorination reaction at different temperatures

2.3 Mathematical modeling of reactor

The mass balance for TiO₂ consumption is given by the following equation:

                          (4)

where is the rate of TiO₂ consumption, S is the surface area of particles at any time and  is the relative molecular mass of TiO₂. The and S parameters are defined as follows:

                             (5)

k=k₀exp[-E/(RT)]                             (6)

,                  (7)

where and are the pressures of Cl₂ and CO, respectively; ρ_s is the density of TiO₂ particles; r_i0 is the particle radius at the instant t=0; and m_i0 is the mass of particles with radius r_i0.

The change of particles’ diameter in each population was determined by

 (i=1…N; )       (8)

where r_i is the particle radius at time t, and m_i is the mass of particles with radius r_i.

The mass balance of components in gas phase by assuming the reactor as a CSTR reactor can be written as

 (j=CO, Cl₂, TiCl₄, CO₂) (9)

                         (10)

                             (11)

                             (12)

where V is the volume of the reaction section in the reactor, C is the total concentration of gases, and y_j is the mole fraction of matter j in the gas phase.

The total volume flow rate is given by

                       (13)

where  is the mass flow rate of input gas mixture and ρ_g is the gas density. The ρ_g is given by

                                 (14)

where  stands for the average relative molecular mass of gas phase. The C and  parameters are defined as

C=p/(RT)                                  (15)

                           (16)

                             (17)

The ordinary differential equations ((4), (8) and (9)) and other algebraic equations ((5)-(7), (10)-(17)) were solved using MATLAB Ode solver in a variable step mode with respect to time, simultaneously.

Assuming the uniform particle size distribution of TiO₂ particles, the following equation was used [22,24,25,40]:

                   (18)

The values of m, n and E were obtained by plotting 1-(1-X) ^1/3 versus time and calculation of the slope of plots at the low conversion rates under various operating conditions. The obtained values were as follows: n=1.18, m=0.65 and E=110.24 kJ/mol, where E is the activation energy.

3 Results and discussion

3.1 Effect of chlorine gas flow rate

The effects of chlorine gas flow rate at two different temperatures on the chlorination process are given in Table 3. At 1050 and 1150 °C, the conversions obtained for chlorine gas flow rates were set at 50 and 75 g/h, respectively.

The effects of flow rate of chlorine on the conversion and reaction rate of anatase feedstock at two different temperatures are shown in Fig. 2. The data in Fig. 2 further show that at a given chlorination temperature, the conversion in terms of initial slope of conversion vs time tends to increase as the chlorine gas flow rate is increased. Moreover, at a fixed chlorine gas flow rate the data reveal that the conversion enhanced as the chlorination temperature was increased from 1050 to 1150 °C. The increased conversion with an increase in the chlorine gas flow rate can be due to the intensity during the chlorination reaction at higher flow rates. The results also show a good agreement between the experimental data and model results.

The model predictions for variation of particle size distribution at different time for two concentrations of Cl₂ (50 and 75 g/h) are shown in Figs. 3 and 4, respectively. According to Figs. 3 and 4, the smaller particles undergo a faster mass reduction owing to their higher surface area and this trend is more pronounced when the flow rate of Cl₂ is 75 g/h. This finding is consistent with the data reported in Refs. [21,25,28].

3.2 Effect of amount of feedstock

The data obtained for chlorination process of TiO₂ feedstock at two levels of initial feedstock with the particle sizes in the range of 180-420 μm are displayed in Table 4. These data can provide insight into the effect of feedstock loading on the conversion of anatase ore.

The conversion rate vs time plots for two levels of feedstock (25 and 50 g) obtained at 1150 °C are shown in Fig. 5(a). Figure 5(a) further displays that the conversion rate of 25 g feedstock is significantly higher than that of 50 g feedstock. The large amount of initial feedstock may hinder the efficient mass and heat transfer during the chlorination process, which in turn is manifested by a decrease in the conversion. Moreover, an increase in the anatase feedstock would lead to a decrease in the (CO, Cl₂)/TiO₂ mole ratio which means that a lower amount of CO reluctant and Cl₂ are available for chlorination process of anatase feedstock. As a result, the conversion is decreased as the (CO, Cl₂)/TiO₂ mole ratio was reduced. This decrease in reaction rate and conversion rate is due to a decrease in the Cl₂ and CO gas in reactor as shown in Figs. 5(b) and (c).

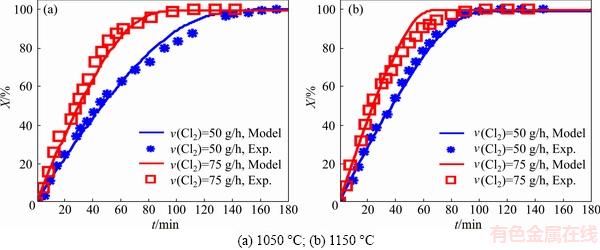

Fig. 2 Effect of flow rate of chlorine on ultimate conversion (X) of anatase at different temperatures

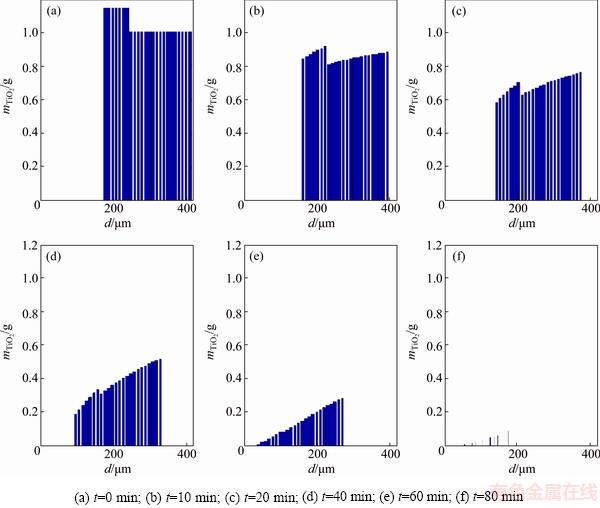

Fig. 3 Particle size distribution evolution with time at 1050 °C and Cl₂ flow rate of 50 g/h

Fig. 4 Particle size distribution evolution with time at 1050 °C and Cl₂ flow rate of 75 g/h

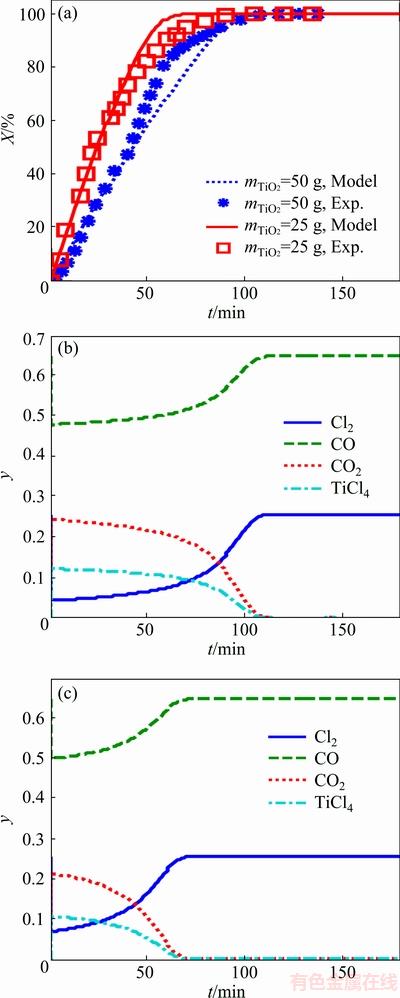

Fig. 5 Conversion vs time for different feedstock masses  at 1150 °C (a), mole fraction of reactor outlet gases vs time for =50 g (b) and =25 g (c)

Figures 5(b) and (c) show that the concentrations of Cl₂ and CO in the reactor are not constant during the reaction time. Upon consumption of TiO₂ with time, the concentrations of Cl₂ and CO in the reactor approach to those of inlet values and after complete conversion in Figs. 5(b) and (c), the mole fractions of TiCl₄ and CO₂ at the reactor outlet become zero and the mole fractions of Cl₂ and CO turn into the inlet values.

3.3 Effect of CO flow rate

The effects of CO flow rate on the conversion of a given anatase sample during the chlorination process for certain operational conditions are given in Table 5.

The effects of CO flow rate on the conversion of TiO₂ feedstock at 1150 °C are shown in Fig. 6. Regarding the data presented in Fig. 6 the effect of CO flow rate on the conversion of chlorination reaction can be investigated. As seen in Fig. 6, the conversion and reaction rate increase as the CO flow rate increases. Considering the fact that CO serves as reducing agent in the chlorination process, the increase in the CO flow rate promotes the chlorination reaction and is favorable to the kinetics of chlorination process [28].

Fig. 6 Effect of flow rate of CO on conversion of anatase feedstock at 1050 °C

3.4 Effect of size distribution at 1150 °C

The results of chlorination process for feedstocks of different particle size distributions at the temperature of 1150 °C are summarized in Table 6.

The conversion vs time plots for different feedstocks obtained at 1150 °C are shown in Fig. 7(a). Figure 7(a) also demonstrates the effect of particle size of anatase on the conversion. As seen, the feedstock with particle sizes less than 180 μm reveals the highest conversion and reaction rate as compared with the other feedstocks. This may be due to the fact that the larger particles have smaller specific surface area (Fig. 7(b)), which adversely affects the kinetic conditions of chlorination reaction [28]. The smaller feedstock particles with greater specific surface area are more favorable for chlorination reaction.

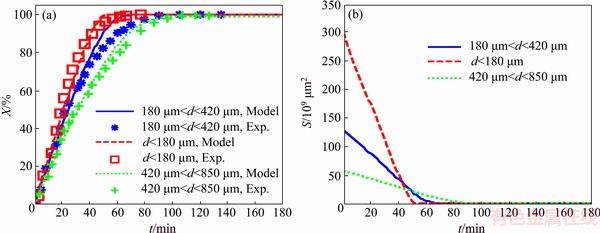

Fig. 7 Conversion vs time (a) and reaction area vs time (b) for feedstocks of different particle sizes at 1150 °C

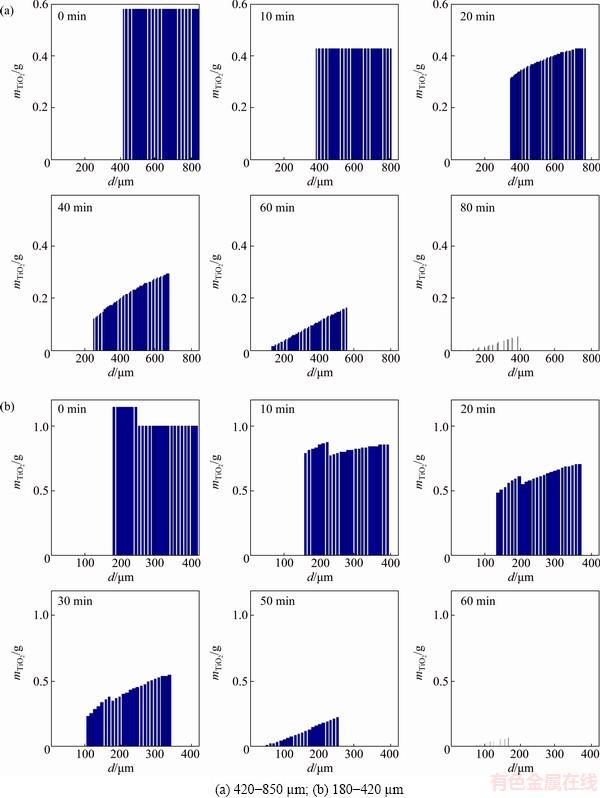

Fig. 8 Particle size distribution evolution with time at 1050 °C and Cl₂ flow rate of 75 g/h for feedstocks with different particle sizes

Figures 7(b) and 8 demonstrate that the reduction in contact surface area of particle becomes more intense as the particle size decreased. The data reveal that the smallest particles show the highest drop in surfaces area as a function of reaction time. As mentioned, the surface area of the particles gradually increases as the particle size decreases. The increase in contact surface area is favorable to greater reaction rate and conversion rate. Consequently, the decrease in contact surface area with time is more significant for smaller particles than that of the larger ones. The above mentioned results are in a good agreement with research works by YOUN and PARK [21], SOHN and ZHOU [25] and NIU et al [28].

3.5 Effect of reaction temperature

The results of chlorination process at two operating temperatures (1050 °C and 1150 °C) for feedstock with the particle sizes in the range of 180-420 μm are listed in Table 7.

The conversion vs time plots for feedstock with particle sizes in the range of 180-420 μm obtained at different temperatures are shown in Fig. 9. From Fig. 9, one can see the effect of temperature on the conversion and reaction rate. As seen, the slope of initial stage of conversion vs time curves gradually increases as the chlorination temperature was increased, indicating that the conversion tends to increase with the chlorination temperature. The difference between the experimental conversion data for chlorination at 1050 and 1150 °C (Fig. 9) is insignificant up to 40 min of reaction time; afterwards the difference between the conversions appears. These findings are again confirmed by the results of other researchers [21,22,25-28].

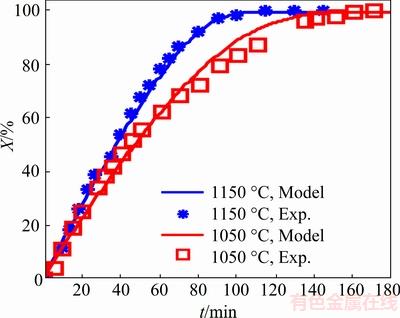

Fig. 9 Conversion vs time for feedstock with particle size in range of 180-420 μm at two different temperatures

As seen in Fig. 9, the reaction rate and conversion undergo a considerable increase as the temperature was increased. This is because the reaction rate of particles with Cl₂ and thereby the generation of TiCl₄ is enhanced at higher temperature. As a result, the rate of contact surface area reduction becomes more intense with increasing temperature. Figure 9 shows that there is a good agreement between the experimental data and theoretical results.

4 Conclusions

1) Chlorination of TiO₂ was carried out in the presence of CO as reducing agent. The effects of chlorination temperature (1050 and 1150 °C), feedstock particle size and size distribution, amount of feedstock and Cl₂ and CO flow rates on the conversion and the reaction rate were studied experimentally and theoretically.

2) A new model was developed to predict changes in particle size distribution with time, conversion rate and molar fraction of components in the gas phase as reaction proceeds inside the reactor. The predictions of the proposed model for the conversion rate at different temperatures, various concentrations of CO and Cl₂, different amounts of TiO₂ fed into the reactor and different sizes of feedstock particles were in good agreement with the experimental data.

3) The effects of operating conditions including feedstock particle size and size distribution, amount of feedstock, chlorination temperature, and Cl₂ and CO flow rates on the conversion were also studied. In case of TiO₂ (anatase) feedstock with the particles in the range of 180-420 μm, it was found that with gradual increase in chlorination temperature from 1050 to 1150 °C, the conversion rate and reaction rate were monotonically increased.

4) In the case of size and size distribution, the highest reaction rate was obtained for anatase feedstock containing particles smaller than 180 μm. It was observed that an increase in loading of feedstock led to a decrease in conversion rate and reaction rate. Increase in the chlorine gas flow rate at both 1050 and 1150 °C increased the conversion and reaction rate as the chlorine gas flow rate was increased. The conversion rate of anatase was increased as the CO flow rate of chlorination process was increased from 0.5 to 1 L/min.
