J. Cent. South Univ. (2019) 26: 1510-1520

DOI: https://doi.org/10.1007/s11771-019-4107-6

Synthesis and characterization of Na_0.44MnO₂ nanorods/graphene composite as cathode materials for sodium-ion batteries

ZHANG Yue(张月)¹, OUYANG Yan(欧阳琰)¹, LIU Li(刘黎)^{1, 2}, XIA Jing(夏靖)¹,

NIE Su(聂苏)¹, LIU Wen(刘稳)¹, WANG Xian-you(王先友)¹

1. National Base for International Science & Technology Cooperation, National Local Joint Engineering

Laboratory for Key Materials of New Energy Storage Battery, Hunan Province Key Laboratory of

Electrochemical Energy Storage and Conversion, Key Laboratory of Environmentally Friendly

Chemistry and Application of Ministry of Education, College of Chemistry, Xiangtan University,Xiangtan 411105, China;

2. Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai University, Tianjin 300071, China

Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2019

Abstract: Na_0.44MnO₂ nanorods have been prepared by a hydrothermal method. The experimental parameters have been systematically investigated and optimized. The results show that Na_0.44MnO₂ nanorods obtained via the hydrothermal treatment at 200 °C for 16 h show the best electrochemical properties, which deliver the high initial discharge capacity of 110.7 mA·h/g at 50 mA/g in potential window 2.0-4.0 V. To further improve their electrochemical properties, a ball milling process with graphene has been carried out to obtain Na_0.44MnO₂/graphene composite. The initial discharge capacity of Na_0.44MnO₂/graphene composite is 106.9 mA·h/g at a current density of 50 mA/g. After 100 cycles, the residual discharge capacity is 91.8 mA·h/g and the capacity retention rate is 85.9%, which is much higher than that of pristine Na_0.44MnO₂ nanorods (74.7%) at the same condition. What is more, when the current density reaches 500 and 1000 mA/g, the corresponding discharge capacities of Na_0.44MnO₂/graphene composite are about 89 and 78 mA·h/g, respectively, indicating outstanding rate capability.

Key words: manganese-based compounds; hydrothermal method; sodium-ion batteries; composite materials

Cite this article as: ZHANG Yue, OUYANG Yan, LIU Li, XIA Jing, NIE Su, LIU Wen, WANG Xian-you. Synthesis and characterization of Na_0.44MnO₂ nanorods/graphene composite as cathode materials for sodium-ion batteries [J]. Journal of Central South University, 2019, 26(6): 1510-1520. DOI: https://doi.org/10.1007/s11771-019-4107-6.

1 Introduction

Energy and environmental issues have become the most concerned issues in the world nowadays, and people’s growing needs make energy issues more and more serious. So it is crucial to apply alternative new energy systems to realize society sustainable development [1], which brings about the urgent need of efficient devices. Lithium-ion batteries have been widely applied in various portable energy storage devices [2-4]. However, due to the shortage of lithium resources and the high price, sodium-ion batteries are becoming more and more attractive, whose energy storage mechanism is similar to lithium ion batteries but the price is much lower due to the abundant sodium resources [5-10].ZHANG Yue and OUYANG Yan contributed equally to this work.

Recently, cathode materials of sodium ion batteries mainly focused on layered and tunnel type transition metal oxides/sulfides/fluorides, polyanionic compounds, Prussian blue and its derivatives, and organic compounds [11, 12]. However, due to the larger radius of Na⁺, cathode material structure of sodium ion battery is more likely to collapse in the sodium ions insertion/ extraction processes [13, 14]. Manganese-based cathode materials (Na_xMnO₂, 0xMnO₂ is mainly divided into two types: when the value of x is low (such as Na_0.2MnO₂ and Na_0.44MnO₂), it is a 3D tunnel type structure; when the value of x is high (such as Na_0.7MnO₂ and NaMnO₂), it is a 2D layered structure consisting of edge-shared MO₆ octahedral plates [18-23]. Among these manganese-based cathode materials, Na_0.44MnO₂ has attracted the greatest attention. Na_0.44MnO₂ possesses unique 3D S-type tunnel structure. In this tunnel structure, Na-ion has three crystal degree points, as shown in crystal structure diagram of Na_0.44MnO₂ (Figure 1(c)), where Na(1) occupies almost all of the small hexagonal tunnels, while Na(2) and Na(3) occupy half of the large S-type tunnels. In the electrochemical processes, this structure is stable and Na(2) and Na(3) can be reversibly embedded/extracted, while Na(1) hardly escapes [20]. Na_0.44MnO₂ nanorods can be prepared by high temperature solid state method [24], molten salt method [25], hydrothermal method [26] and sol-gel method [27], etc. Although the structure of the Na_0.44MnO₂ has great advantages in the electrochemical processes, the poor conductivity of the Na_0.44MnO₂ nanorods is not conducive to the rate capability of the materials [28, 29]. The graphene is an attractive electric conductor, which owns a series of advantages, such as high surface area and excellent conductivity [30, 31]. In addition, the graphene sheets are dispersed around the Na_0.44MnO₂ nanorods to form a uniform dense conductive network, which can not only effectively enhance the conductivity of Na_0.44MnO₂ nanorods materials, but also can provide a porous and flexible supports for Na_0.44MnO₂ electrode materials to well relieve the volume expansion of electrode materials during electrochemical processes [2, 31]. We use graphene to compound the Na_0.44MnO₂ nanorods to improve the conductivity of the materials for the first time, and the results show that the addition of graphene effectively improves its electrochemical performance.

In this work, we prepared Na_0.44MnO₂ nanorods by a hydrothermal method and optimized the experimental parameters of hydrothermal process. Moreover, the as-prepared Na_0.44MnO₂ nanorods were ball-milled with graphene to form Na_0.44MnO₂/graphene composite, which shows much better electrochemical performance than that of pristine Na_0.44MnO₂ nanorods.

2 Experimental

2.1 Materials preparation

Firstly, 6.0 g NaOH was dissolved in 40 mL deionized water and magnetically stirred for 10 min. Then, adding 0.79 g KMnO₄ to the above solution with continous stirring to form 50 mL purple mixed solution. Finally, 50 mL deionized water containing 2.37 g MnSO₄·H₂O was added to purple mixed solution under the magnetic stirring. The brown precipitate was rapidly formed and the suspension was aged at room temperature for 24 h to wash, filter, and dry under vacuum at 80 °C for 12 h to obtain a tan solid of Na-birnsssite precursor.

To prepare Na_0.44MnO₂ nanorods, 0.2 g Na-birnsssite precursor was added in a polytetrafluoroethylene reactor with 50 mL(15.0 mol/L) NaOH solution. After magnetically stirring for 30 min, it was sealed and placed in drying oven at certain temperature for certain time. After cooling, centrifuging and drying, a brown solid is obtained. Finally, the brown solid was calcined at 600 °C for 2 h in a muffle furnace to get final product of Na_0.44MnO₂.

The Na_0.44MnO₂/graphene composite was synthesized by ball-milling the as-prepared Na_0.44MnO₂ nanorods and commercial graphene (CG) (The Sixth Element Materials Technology Co, Ltd, China) with a mass ratio of 10:1 for 3 h at 400 r/min.

2.2 Materials characterization

The crystal structure of the sample was identified by powder X-ray diffraction (XRD). The XRD data was obtained by a Rigaku D/MAX-2500 power diffractometer. Morphology and internal structure of samples were characterized by the scanning electron microscope (SEM, JEOL JSM-6610) and the transmission electron microscopy (TEM, JEOL JEM-2100F). The distribution of elements in the sample was decided by energy-dispersive X-ray spectrometry (EDS).

2.3 Electrochemical tests

The pristine Na_0.44MnO₂ nanorods or Na_0.44MnO₂/graphene composite, acetylene black, and binder (PVDF) were mixed with the mass ratio of 80:10:10 in 1-methyl-2-pyrrolidone (NMP) solution to form mixture slurry. After the slurry is uniformly mixed, it is evenly spread on a current collector of metal aluminum foil by a coater, dried at 60 °C for 24 h, finally cut into disks with diameter of 1 cm as working electrodes. Using a sodium metal plate as a reference electrode, 1 mol/L NaClO₄ (V[EC(ethylene carbonate)]: V[PC(propylene carbonate)]=1:1) as the electrolyte and GF/D glass fiber as diaphragm to assemble 2025 coin-type cells in a glove box with high purity argon continuous circulation, charge/discharge test was carried out in a battery test system (BT3008W, Neware, Shenzhen, China) and the cyclic voltammetry (CV) measurements and electrochemical impedance spectroscopy (EIS) tests were performed at CHI660e electrochemical workstation (Chenhua, Shanghai, China).

3 Results and discussion

3.1 Effect of hydrothermal temperature and time

The hydrothermal reaction was firstly carried out with the same reaction time of 16 h at different temperatures (160, 180 and 200 °C) and the XRD patterns of the products are shown in Figure 1(a). When the temperatures are 160 and 180 °C, although main peaks of XRD patterns are corresponding to the Na_0.44MnO₂, there are also some impurity peaks (marked with ), which are from Na-birnssite precursor. As the temperature reaches to 200 °C, the impurity peaks disappear as well as the peaks can be well consistent with the standard data files of Na_0.44MnO₂ (PDF 27-0750). These data indicate that 200 °C is the optimal hydrothermal temperature.

In addition, XRD patterns of products with different hydrothermal reaction times (8, 16, and 24 h) at the same hydrothermal temperature of 200 °C are shown in Figure 1(b). Most peaks of products obtained at different hydrothermal time can correspond to Na_0.44MnO₂ phase. The (040) crystal plane at 13.7° has been marked in curves, which belongs to Na_0.44MnO₂ phase and is consistent with reported Na_0.44MnO₂ products [24, 29, 32, 33]. There exists a small impurity peak at 16.2° (marked with ◆), which is assigned to Na₂Mn₃O₇ phase. Although the impurity phase Na₂Mn₃O₇ exists in products, the peak intensity of Na₂Mn₃O₇ is tiny and unconspicuous, which does not have much effect on the primary phase Na_0.44MnO_2.

Figure 1 XRD patterns of Na_0.44MnO₂ nanorods synthesized at different hydrothermal temperatures for 16 h (a) and Na_0.44MnO₂ nanorods synthesized at hydrothermal temperatures of 200 °C for different hydrothermal time (b), crystal structure diagram of Na_0.44MnO₂ (c)

3.2 Effect of hydrothermal reaction time on electrochemical performance

The electrochemical performance of three products obtained at hydrothermal temperature of 200 °C for different hydrothermal time (8, 16 and 24 h) is shown in Figure 2. The first charge and discharge curves of the three samples are shown in Figures 2(a)-(c). The obvious charge and discharge platforms correspond to the multiphase transformation processes. The first discharge capacities of the three products (8, 16 and 24 h) are 107.9, 110.7 and 106.3 mA·h/g, respectively. In addition, cycle capability comparison curves at 0.05 A/g are shown in Figure 2(d), and the residual discharge capacities of 8, 16, and 24 h after 100 cycles are 73.3, 82.7 and 82.4 mA·h/g, respectively. The corresponding capacity retention rates are 67.9%, 74.7% and 77.5%, respectively. Among them, the Na_0.44MnO₂ nanorods synthesized by hydrothermal reaction for 16 h own the highest discharge capacities. For further comparison of these three products, the cycle capability at 0.5 A/g is shown in Figure 2(e), the capacity retentions after 50 cycles for the products obtained by hydrothermal reaction for 8, 16, and 24 h are 65.5%, 76.2% and 76.0%, respectively. It is noted that although the product obtained through the hydrothermal treatment of 16 h shows slightly less capacity retention than that of the product obtained for 24 h at 0.05 A/g, its specific capacity is much higher at high current density.

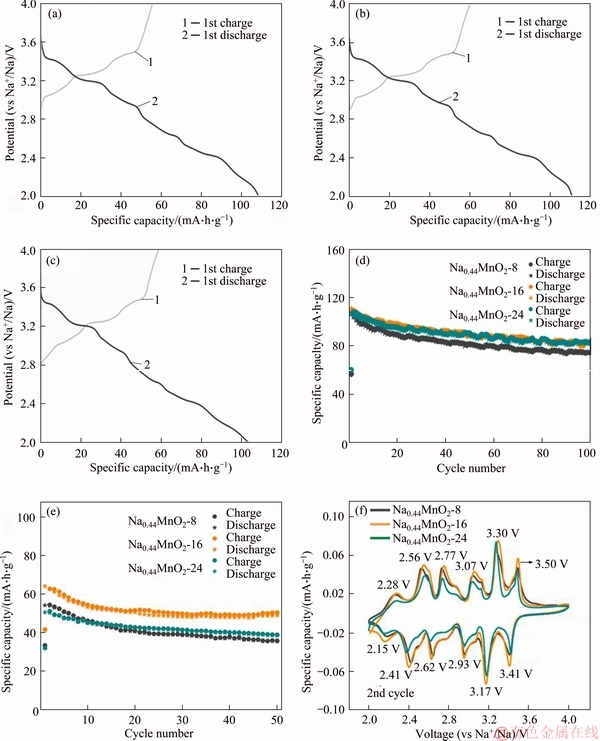

Figure 2 Initial charge/discharge curves of products obtained at 0.05 A/g and 0.42C for hydrothermal time of 8 h (a),16 h (b), and 24 h (c) and cycling behaviors at 0.05 A/g (d) and 0.5 A/g for three products (e), and CV curves at a scanning rate of 0.1 mV/s for three products (f)

The CV curves (Figure 2(f)) of the three products at the second cycle show similar characteristics, which have at least 6 pairs of redox peaks derived from complex multiphase transition during charge/discharge processes and are similar to the reported manganese-based cathode material [34, 35]. The positions of six pairs of redox peaks for all samples approximately locate at 2.15 V/2.28 V,2.41 V/2.56 V, 2.62 V/2.77 V, 2.93 V/3.07V, 3.17 V/3.30 V and 3.41 V/3.50 V, respectively, and these locations of peaks are well corresponding to charge/discharge platforms in Figures 2(a)-(c). The Na_0.44MnO₂ synthesized by hydrothermal treatment of 16 h owns the highest peaks intensity and the largest peak area, indicating that this product has the highest specific capacity, which is well consistent with charge-discharge properties shown in Figures 2(a)-(e).

The above discussions indicate that Na_0.44MnO₂ synthesized by hydrothermal treatment at 200 °C for 16 h shows the best sodium storage performance.

3.3 Characterizations of Na_0.44MnO₂ obtained at optimal hydrothermal parameters

In order to further study the morphology and micro structure of Na_0.44MnO₂obtained at optimal hydrothermal condition, which is hydrothermal treatment at 200 °C for 16 h, SEM, TEM HRTEM and EDS were carried out. As shown in SEM images (Figures 3(a) and (b)) and TEM image (Figure 3(c)), the sample exhibits a relatively uniform nanorods structure with an average diameter between 100 and 200 nm and a length of about 2 to 5 μm. In the HRTEM diagram (Figure 3(d)), the lattice spacing of 0.39 nm can be observed, corresponding to the (160) crystal plane of Na_0.44MnO₂ nanorods. The inset (in Figure 3(d)) is the corresponding selected area electron diffraction pattern (SAED) image and it can be seen that some diffraction spots are corresponding to crystal planes (160), (340), (350), (081), (1130) and (2130) of Na_0.44MnO₂ nanorods. It can be seen from EDS mapping images (Figure 3(e)) and EDS spectra (Figure 3(f)) of the sample that the sample only contains three elements of Na, Mn and O and the distribution of these elements are uniform in the sample. The elements content of Na and Mn are shown in the table of Figure 3(f) and the molar ratio of Na: Mn is 0.4397, which is well close to the elements ratio in Na_0.44MnO₂.

3.4 Characterizations of Na_0.44MnO₂/graphene composite

Figure 4(a) shows the XRD patterns of the pristine Na_0.44MnO₂ and the Na_0.44MnO₂/graphene composite. The diffraction peaks of the two samples are well consistent with Na_0.44MnO₂ (JCPDS standard card number: 27-0750, space group:Pbam) and the diffraction peaks are sharp. In addition, compared with pristine Na_0.44MnO₂, the diffraction peaks of Na_0.44MnO₂/graphene composite do not change significantly, indicating that the addition of graphene does not affect the crystal structure of pristine Na_0.44MnO₂.

The SEM and TEM images of Na_0.44MnO₂/ graphene composite are shown in Figures 4(b) and (c). Na_0.44MnO₂ exhibits a uniform and well- crystallized nanorods-like structure with a diameter of 100-200 nm. The graphene sheets are dispersed around the Na_0.44MnO₂ nanorods to form a uniform dense conductive network. In HRTEM (Figure 4(d)), the lattice fringe spacing is 0.45 nm, corresponding to the (200) crystal plane of the Na_0.44MnO₂ nanorods. The amorphous stripes belong to graphene. Graphene has thin thickness and large specific surface area, which can shorten the ions diffusion path and improve the electrical conductivity of the Na_0.44MnO₂ nanorods. Therefore, the electrochemical performance of Na_0.44MnO₂ nanorods could be expected to be improved by compositing with graphene.

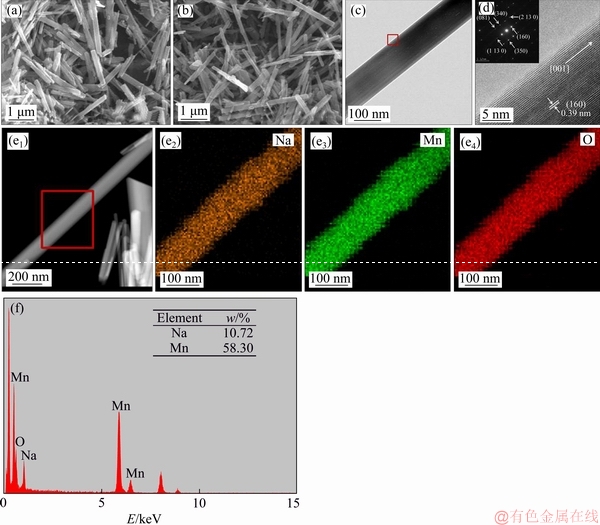

Figure 3 SEM images (a, b), TEM image (c), corresponding HRTEM and SAED image (d), EDS mapping images (e) and EDS spectrum (f) of Na_0.44MnO₂ prepared via hydrothermal treatment at 200 °C for 16 h

3.5 Electrochemical performance of Na_0.44MnO₂/ graphene composite

The CV comparison curves of the second cycle of pristine Na_0.44MnO₂ and Na_0.44MnO₂/graphene composite at 0.1 mV/s are shown in Figure 5(a). The approximate positions of peaks pairs have been labeled in curves. The potential difference between each pair of redox peaks is reduced for the composite, indicating that the polarization of Na_0.44MnO₂/graphene composite is smaller than that of pristine Na_0.44MnO₂ during charge and discharge processes. Therefore, the addition of graphene improved the electrochemical reversibility of Na_0.44MnO₂. The CV curves (Figure 5(b)) of the first three cycles of Na_0.44MnO₂/graphene show good coincidence, revealing that the crystal structure of Na_0.44MnO₂/graphene composite is relatively stable and the composite has good reversibility during sodium ions insertion/ deinsertion processes.

The comparison of charge-discharge properties for pristine Na_0.44MnO₂ and Na_0.44MnO₂/graphene composite is shown in Figure 6. Figure 6(a) shows the cycle performance curves of two samples at 50 mA/g. The Na0.44MnO₂/graphene composite delivers an initial discharge capacity of 106.9 mA·h/g at 50 mA/g, which is slightly lower than that of pristine Na_0.44MnO₂. The residual discharge capacity of the Na_0.44MnO₂/graphene composite after 100 cycles is 91.8 mA·h/g and the capacity retention is 85.9%, which are much higher than those of pristine Na_0.44MnO₂ (74.7%). The rate performance curves are shown in Figure 6(b), at the current densities of 50, 100, 500 and 1000 mA/g, the discharge capacities of Na_0.44MnO₂ are about 111, 99, 66 and 39 mA·h/g, respectively, and the discharge capacities of Na_0.44MnO₂/graphene composite are about 108, 100, 89 and 78 mA·h/g, respectively. Na_0.44MnO₂/graphene composite shows much better rate capability than that of pristine Na_0.44MnO₂. From the corresponding charge/discharge curves of pristine Na_0.44MnO₂ (Figure 6(c)) and Na_0.44MnO₂/ graphene composite (Figure 6(d)), it is more intuitive to see that the Na_0.44MnO₂/graphene composite has better rate performance. The obvious charge and discharge platforms well correspond to the redox peak pairs of the CV curves, indicating the complex sodium ions insertion and extraction processes. Graphene is a new type two-dimensional carbon nanomaterial [28, 32, 36-38]. Due to its high specific surface area, high surface activity, high electrical conductivity and high stability, it has become a research hotspot in the field of electrochemical energy storage. After being combined with the Na_0.44MnO₂ nanorods, graphene can form a uniform dense conductive network around the Na_0.44MnO₂ nanorods, which is beneficial to the transfer of electrons and improves the conductivity of the Na_0.44MnO₂ nanorods, thereby improving the electrochemical performance of the Na_0.44MnO₂ nanorods.

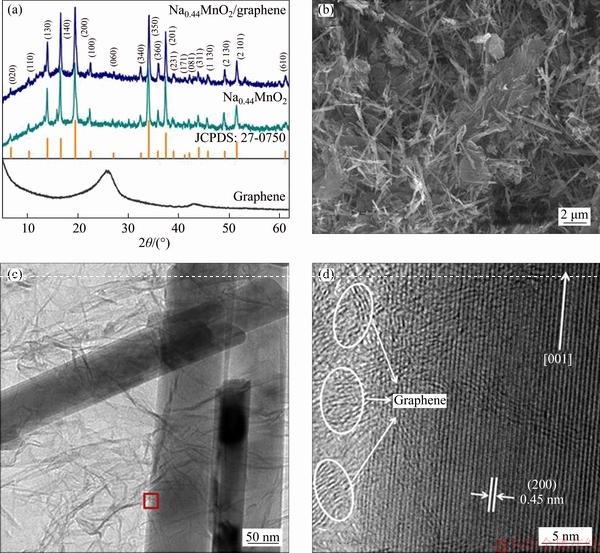

Figure 4 XRD spectra of pristine Na_0.44MnO₂ nanorods and Na_0.44MnO₂/graphene composite (a), SEM image (b), TEM (c) and HRTEM (d) images of Na_0.44MnO₂/graphene composite

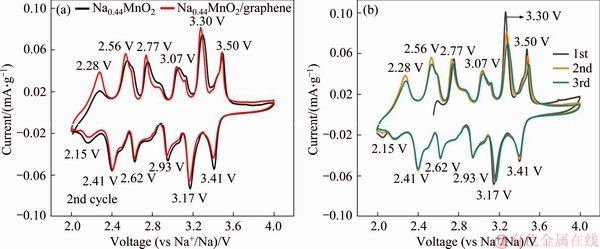

Figure 5 Comparison of CV curves of pristine Na_0.44MnO₂ and Na_0.44MnO₂/graphene composite at the second cycle (a) and first three cycles CV curves of Na_0.44MnO₂/graphene composite (b) (Scan rate of 0.1 mV/s and voltage range of 2.0-4.0 V)

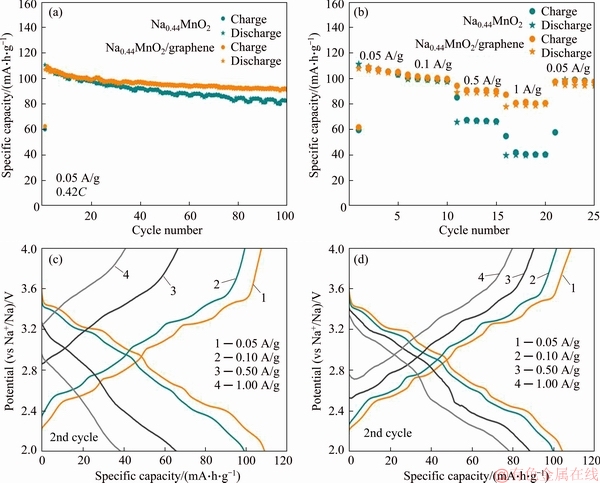

Figure 6 Comparison curves of cycle performance (at 50 mA/g current, voltage range of 2.0-4.0 V) of pristine Na_0.44MnO₂ and Na_0.44MnO₂/graphene composite (a), comparison curves of rate capability of two samples (b), charge/discharge curves at different current density for pristine Na_0.44MnO₂ (c) and Na_0.44MnO₂/graphene composite (d)

The electrochemical performance for two samples was further studied by electrochemical impedance spectroscopy (EIS) tests, which were carried out on Na_0.44MnO₂ and Na_0.44MnO₂/ graphene composite after 1 cycle and 10 cycles. The Nyquist plots of the samples and the simulated equivalent circuit are shown in Figure 7. In general, the semicircle in high-frequency area represents the charge-transfer resistance (R_ct) and the rising line is corresponding to ion diffusion [39]. The R_s is related to electrolyte and ohm resistance, which is negligible [40]. The fitted R_ct value of 700 Ω and 840 Ω can be got for pristine Na_0.44MnO₂ after 1 cycle and 10 cycles, respectively, which is much higher than Na_0.44MnO₂/graphene composite, whose fitted R_ct values are 370 Ω and 460 Ω after 1 cycle and 10 cycles, respectively. These data demonstrate that the addition of graphene effectively alleviate the charge transfer resistance and the fitted impedance values are shown in Table 1, where the lower values of R_ct and R_s for Na_0.44MnO₂/graphene composite well prove that the addition of graphene is beneficial to transfer of electrons and enhances the electrochemical performance of Na_0.44MnO_2.

4 Conclusions

Pristine Na_0.44MnO₂ nanorods with the highest purity and good sodium storage performance have been obtained through optimation of hydrothermal reaction conditions. In addition, Na_0.44MnO₂/ graphene composite is synthesized by ball milling pristine Na_0.44MnO₂ nanorods with graphene, which displays enhanced electrochemical performance. In the potential window 2.0-4.0 V, the initial discharge capacity of Na_0.44MnO₂/graphene composite is 106.9 mA·h/g at a current density of 50 mA/g. After 100 cycles, the residual specific capacity is 91.8 mA·h/g, and the capacity retention rate is 85.9%. The cycle performance of Na_0.44MnO₂/graphene is much better than that of pristine Na_0.44MnO₂. Besides, the composite shows outstanding rate capability. At the current densities of 50, 100, 500 and 1000 mA/g, the discharge capacities of Na_0.44MnO₂/graphene composites are 108, 100, 89 and 78 mA·h/g, respectively. The addition of graphene effectively improves the electrochemical performance of Na_0.44MnO₂ nanorods, mainly due to the increased conductivity of the Na_0.44MnO₂ nanorods.

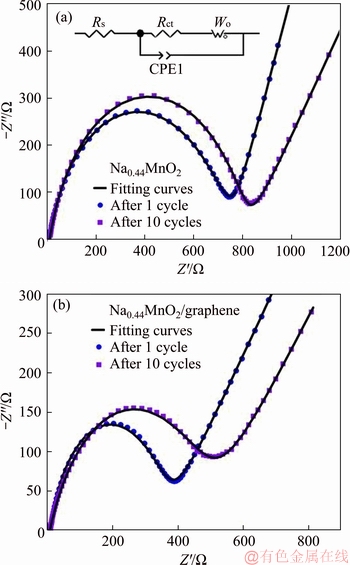

Figure 7 EIS curves of Na_0.44MnO₂ (a) and Na_0.44MnO₂/graphene composite (b) after 1 cycle and 10 cycles (Inset shows simulated equivalent circuit model)

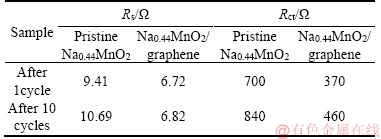

Table 1 R_s and R_ct values of Na_0.44MnO₂ and Na_0.44MnO₂/graphene electrodes after 1 cycle and 10 cycles

References

[1] SLATER M D, KIM D, LEE E, JOHNSON C S. Sodium-ion batteries [J]. Advanced Functional Materials, 2013, 23(8): 947-958.

[2] XIA Jing, LIU Li, XIE Jian-jun, YAN Han-xiao, YUAN Yu-ting, CHEN Man-fang, HUANG Cheng, ZHANG Yue, NIE Su, WANG Xian-you. Layer-by-layered SnS₂ /graphene hybrid nanosheets via ball-milling as promising anode materials for lithium ion batteries [J]. Electrochimica Acta, 2018, 269: 452-461.

[3] XIE Jian-jun, PEI Yi, LIU Li, GUO Sheng-ping, XIA Jing, LI Min, OUYANG Yan, ZHANG Xiao-yan, WANG Xian-you. Hydrothermal synthesis of antimony oxychlorides submicron rods as anode materials for lithium-ion batteries and sodium-ion batteries [J]. Electrochimica Acta, 2017, 254: 246-254.

[4] YI Ling-guang, LIU Li, GUO Guo-xiong, CHEN Xiao-ying, ZHANG Yue, YU Shu-yang, WANG Xian-you. Expanded graphite@SnO₂@polyaniline composite with enhanced performance as anode materials for lithium ion batteries [J]. Electrochimica Acta, 2017, 240: 63-71.

[5] XIE Jian-jun, LIU Li, XIA Jing, ZHANG Yue, LI Min, OUYANG Yan, NIE Su, WANG Xian-you. Template-free synthesis of Sb₂S₃ hollow microspheres as anode materials for lithium-ion and sodium-ion batteries [J]. Nano-Micro Letters, 2018, 10(1): 12.

[6] YUAN D D, WANG Y X, CAO Y L, AI X P, YANG H X. Improved electrochemical performance of Fe-substituted NaNi_0.5Mn_0.5O₂ cathode materials for sodium-ion batteries [J]. ACS Applied Materials & Interfaces, 2015, 7(16): 8585-8591.

[7] LI Huang-xu, CHEN Xiao-bin, JIN Ting, BAO Wei-zhai, ZHANG Zhi-an, JIAO Li-fang. Robust graphene layer modified Na₂MnP₂O₇ as a durable high-rate and high energy cathode for Na-ion batteries [J]. Energy Storage Materials, 2019, 16: 383-390.

[8] JIN Ting, HAN Qing-qing, WANG Yi-jing, JIAO Li-fang. 1D nanomaterials: Design, synthesis, and applications in sodium-ion batteries [J]. Small, 2018, 14(2): 1703086.

[9] WANG Xiao-jun, CAO Kang-zhe, WANG Yi-jing, JIAO Li-fang. Controllable N-doped CuCo₂O₄@C film as a self-supported anode for ultrastable sodium-ion batteries [J]. Small, 2017, 13(29): 1700873.

[10] HE Han-nan, GAN Qing-meng, WANG Hai-yan, XU Gui-liang, ZHANG Xiao-yi, HUANG Dan, FU Fang, TANG You-gen, AMINE K, SHAO Min-hua. Structure-dependent performance of TiO₂/C as anode material for Na-ion batteries [J]. Nano Energy, 2018, 44: 217-227.

[11] SUN Yang, GUO Shao-hua, ZHOU Hao-sheng. Exploration of advanced electrode materials for rechargeable sodium-ion batteries [J]. Advanced Energy Materials, 2018: 1800212.

[12] LI Wei-jie, HAN Chao, WANG Wan-lin, GEBERT F, CHOU Shu-lei, LIU Hua-kun, ZHANG Xin-he, DOU Shi-xue. Commercial prospects of existing cathode materials for sodium ion storage [J]. Advanced Energy Materials, 2017, 7(24): 1700274.

[13] JIN Ting, LIU Yong-chang, LI Yang, CAO Kang-zhe, WANG Xiao-jun, JIAO Li-fang. Electrospun NaVPO₄F/C nanofibers as self-standing cathode material for ultralong cycle life Na-ion batteries [J]. Advanced Energy Materials, 2017, 7(15): 1700087.

[14] HE Han-na, HUANG Dan, PANG Wei-kong, SUN Dan, WANG Qi, TANG You-gen, JI Xiao-bo, GUO Zai-ping, WANG Hai-yan. Plasma-induced amorphous shell and deep cation-site S doping endow TiO₂ with extraordinary sodium storage performance [J]. Advanced Materials, 2018, 30(26): 1801013.

[15] ZHANG Zi-he, WU Di-hua, ZHANG Xu, ZHAO Xu-dong, ZHANG Hai-chang, DING Fei, XIE Zhao-jun, ZHOU Zhen. First-principles computational studies on layered Na₂Mn₃O₇ as a high-rate cathode material for sodium ion batteries [J]. Journal of Materials Chemistry A, 2017, 5(25): 12752- 12756.

[16] ADAMCZYK E, PRALONG V. Na₂Mn₃O₇:A suitable electrode material for Na-ion batteries? [J]. Chemistry of Materials, 2017, 29(11): 4645-4648.

[17] ABAKUMOV A M, TSIRLIN A A, BAKAIMI I, TENDELOO G V, LAPPAS A. Multiple twinning as a structure directing mechanism in layered rock-salt-type oxides: NaMnO₂ polymorphism, redox potentials, and magnetism [J]. Chemistry of Materials, 2014, 26(10): 3306-3315.

[18] WANG Qi-di, YANG Wei, KANG Fei-yu, LI Bao-hua. Na₂Mn³⁺0.3Mn⁴⁺_2.7O_6.85: A cathode with simultaneous cationic and anionic redox in Na-ion battery [J]. Energy Storage Materials, 2018, 14: 361-366.

[19] SU Da-wei, WANG Cheng-yin, AHN H, WANG Guo-xiu. Single crystalline Na_0.7MnO₂ nanoplates as cathode materials for sodium-ion batteries with enhanced performance [J]. Chemistry—A European Journal, 2013, 19(33): 10884- 10889.

[20] SAUVAGE F, LAFFONT L, TARASCON J M, BAUDRIN E. Study of the insertion/deinsertion mechanism of sodium into Na_0.44MnO₂ [J]. Inorganic Chemistry, 2007, 46(8): 3289-3294.

[21] LIU Sheng, FAN Cheng-zhi, ZHANG Yuan, LI Cheng-hui, YOU Xiao-zeng. Low-temperature synthesis of Na₂Mn₅O₁₀ for supercapacitor applications [J]. Journal of Power Sources, 2011, 196(23): 10502-10506.

[22] HOU Yan, TANG Hong-wei, LI Bao, CHANG Kun, CHANG Zhao-rong, YUAN Xiao-zi, WANG Hai-jiang. Hexagonal-layered Na_0.7MnO_2.05 via solvothermal synthesis as an electrode material for aqueous Na-ion supercapacitors [J]. Materials Chemistry and Physics, 2016, 171: 137-144.

[23] BILLAUD J, CLMENT R J, ARMSTRONG A R, CANALES-VAZQUEZ J, ROZIER P, GREY C P, BRUCE P G. β-NaMnO₂:A high-performance cathode for sodium-ion batteries [J]. Journal of the American Chemical Society, 2014, 136(49): 17243-17248.

[24] WANG C H, YEH Y W, WONGITTHAROM N, WANG Yi-chen, TSENG C J, LEE S W, CHANG Wen-sheng, CHANG J K. Rechargeable Na/Na_0.44MnO₂ cells with ionic liquid electrolytes containing various sodium solutes [J]. Journal of Power Sources, 2015, 274: 1016-1023.

[25] YU Jiang-ying, HONG Mao-rong, WANG Li, HUANG Kai, GUO Yu-xian. Synthesis and gas-sensing properties of P-type Na_0.44MnO₂ nanoribbons [J]. Materials Letters, 2016, 164: 440-443.

[26] LIU Cai, LI Jiang-gang, ZHAO Peng-xiang. Fast preparation of Na_0.44MnO₂ nanorods via a high NaOH concentration hydrothermal soft chemical reaction and their lithium storage properties [J]. Journal of Nanoparticle Research, 2015, 17(3): 142.

[27] LIU Xiao, ZHANG Ning, NI Jiang-feng, GAO Li-jun. Improved electrochemical performance of sol–gel method prepared Na₄Mn₉O₁₈ in aqueous hybrid Na-ion supercapacitor [J]. Journal of Solid State Electrochemistry, 2013, 17(7): 1939-1944.

[28] XU Mao-wen, NIU Yu-bin, CHEN Chuan-jun, SONG Jie, BAO Shu-juan. Synthesis and application of ultra-long Na_0.44MnO₂ submicron slabs as a cathode material for Na-ion batteries [J]. RSC Adv., 2014, 4(72): 38140-38143.

[29] ZHAO Li-wei, NI Jiang-feng, WANG Hai-bao, GAO Li-jun. Na_0.44MnO₂–CNT electrodes for non-aqueous sodium batteries [J]. RSC Advances, 2013, 3(18): 6650: 6655.

[30] WANG Xu-yang, ZHOU Xu-feng, YAO Ke, ZHANG Jiang-gang, LIU Zhao-ping. A SnO₂/graphene composite as a high stability electrode for lithium ion batteries [J]. Carbon, 2011, 49(1): 133-139.

[31] DAVID L, BHANDAVAT R, SINGH G. MoS₂/Graphene composite paper for sodium-ion battery electrodes [J]. ACS Nano, 2014, 8(2): 1759-1770.

[32] HE Xin, WANG Jun, QIU Bao, PAILLARD E, MA Chu-ze, CAO Xia, LIU Hao-dong, STAN M C, LIU Hai-dong, GALLASH T, MENG Y S, LI Jie. Durable high-rate capability Na_0.44MnO₂ cathode material for sodium-ion batteries [J]. Nano Energy, 2016, 27: 602-610.

[33] RUFFO R, FATHI R, KIM D J, JUNG Y H, MARI C M, KIM K. Impedance analysis of Na_0.44MnO₂ positive electrode for reversible sodium batteries in organic electrolyte [J]. Electrochimica Acta, 2013, 108: 575-582.

[34] KIM H, KIM D J, SEO D H, YEOM M S, KANG K, KIM D K, JUNG Y. Ab initio study of the sodium intercalation and intermediate phases in Na_0.44MnO₂ for sodium-ion battery [J]. Chemistry of Materials, 2012, 24(6): 1205-1211.

[35] CAO Yu-liang, XIAO Li-fen, WANG Wei, CHOI D, NIE Zi-min, YU Jiang-guo, SARAF L V, YANG Zhen-guo, LIU Jun. Reversible sodium ion insertion in single crystalline manganese oxide nanowires with long cycle life [J]. Advanced Materials, 2011, 23(28): 3155-3160.

[36] LIU Qian-qian, HU Zhe, CHEN Ming-zhe, GU Qin-fen, DOU Yu-hai, SUN Zi-qi, CHOU Shu-lei, DOU Shi-xue. Multiangular rod-shaped Na_0.44MnO₂ as cathode materials with high rate and long life for sodium-ion batteries [J]. ACS Applied Materials & Interfaces, 2017, 9(4): 3644-3652.

[37] FERRARA C, TEALDI C, DALL’ASTA V, BUCHHOLZ D, CHAGAS L G, QUARTARONE E, BERBENNI V, PASSERINI S. High-performance Na_0.44MnO₂ slabs for sodium-ion batteries obtained through urea-based solution combustion synthesis [J]. Batteries, 2018, 4(1): 8.

[38] DAI Ke-hua, MAO Jing, SONG Xiang-yun, BATTAGLIA V, LIU Gao. Na_0.44MnO₂ with very fast sodium diffusion and stable cycling synthesized via polyvinylpyrrolidone- combustion method [J]. Journal of Power Sources, 2015, 285: 161-168.

[39] LUO Chao, LANGROCK A, FAN Xiu-lin, LIANG Yu-jia, WANG Chun-sheng. P2-type transition metal oxides for high performance Na-ion battery cathodes [J]. Journal of Materials Chemistry A, 2017, 5(34): 18214-18220.

[40] WU Fang, ZHANG Xiao-xiao, ZHAO Tao-lin, LI Li, XIE Man, CHEN Rui-jie. Multifunctional AlPO₄ coating for improving electrochemical properties of low-cost Li[Li_0.2Fe_0.1Ni_0.15Mn_0.55]O₂ cathode materials for lithium-ion batteries [J]. ACS Applied Materials & Interfaces, 2015, 7(6): 3773-3781.

(Edited by FANG Jing-hua)

中文导读

钠离子电池正极复合材料Na_0.44MnO₂/石墨烯的合成与性能

摘要：本文通过水热法合成了Na_0.44MnO₂纳米棒，并系统地研究和优化了合成该材料的实验参数。实验结果表明，在200°C 下，水热反应16 h获得的Na_0.44MnO₂纳米棒展现了最好的电化学性能。在2.0~4.0 V的电压窗口，50 mA/g电流密度下，该材料具有110.7 mA·h/g的初始放电比容量，循环100周后的容量保持率为74.7%。为了进一步提高该材料的电化学性能，将石墨烯与其混合球磨，得到了Na_0.44MnO₂/石墨烯复合材料。在50 mA/g电流密度下，该复合材料首次放电比容量为106.9 mA·h/g，100周循环后，放电比容量仍保持为91.8 mA·h/g，容量保持率为85.9%。此外，当电流密度提高到500 和1000 mA/g时，该复合材料分别具有89 和 78 mA·h/g 的放电比容量。与石墨烯复合，Na_0.44MnO₂材料的循环性能与倍率性能得到了显著提高。

关键词：锰基化合物；水热法；钠离子电池；复合材料

Foundation item: Project(51672234) supported by the National Natural Science Foundation of China; Project(1337304) supported by the Program for Innovative Research Cultivation Team in University, Ministry of Education, China

Received date: 2018-10-25; Accepted date: 2019-03-06

Corresponding author: LIU Li, PhD, Professor; Tel: +86-15080765960; E-mail: liulili1203@126.com; ORCID: 0000-0001-8613-8171
