Leaching process of selenium residue

LI Qian(李倩)¹, ZHANG Bao(张宝)¹, MIN Xiao-bo(闵小波)¹, SHEN Wen-qian(申文前)²

1. School of Metallurgical Science and Engineering, Central South University, Changsha 410083, China;

2. The First Detachment, Tianjin Contingent of Chinese Armed Police Forces, Tianjin 300222, China

? Central South University Press and Springer-Verlag Berlin Heidelberg 2012

Abstract: A thermodynamics analysis on the leaching process of selenium residue and discussion on the behaviors of aqueous ionic in the leaching process were carried out. Through thermodynamical calculation, the values of and relevant potential expressions were obtained. According to these thermodynamical data, the φ-pH diagrams of Se-H₂O system at 298 and 373 K were obtained; Simultaneously, the φ-pH diagrams of SO₂-H₂O and SO₂-Se-H₂O systems were drawn at 298 K. With increasing the temperature, the stable regions of ,  and  in the φ-pH diagram of Se-H₂O system become gradually large, but the limits of pH in the stable region become gradually small. The stability area of reduction precipitation in the SO₂-Se-H₂O system was finally determined. The results of oxidization leaching experiments of selenium residue indicate that when the mass ratio of selenium residue to sodium chlorate is 2, the concentration of sulfuric acid is 300 g/L and the residue is agitated for 3 h at leaching temperature of 80 °C, the leaching rate of selenium could reach 97.76 %. The experimental results conform the calculated results by φ-pH diagram. The selenium reduction precipitation in oxidization-leaching solution was analyzed under the conditions of acidity of 150 g/L, the sodium sulphite concentration of 35 g/L at the reductive temperature of 23 °C for 120 min. And this demonstrates the thermodynamics analysis.

Key words: thermodynamics analysis; selenium residue; Se-H₂O system; φ-pH diagram; SO₂-Se-H₂O system

1 Introduction

Selenium is the rare element associated with natural sulfur and relatively high complex ability with some heavy or noble metals [1-3]. Most of selenium ore has few industrial exploitation values due to the scarce of metallogenic ore. However, selenium has many and continuously increasing industrial applications used in solar cell, photoelectric camera tube, and metallic addition [4-6] in spite of serious shortage shortcoming. Raw materials for extraction of selenium which have been extensively studied by several researchers in pyrometallurgical processes are copper anode slime [7-9], lead blast furnace flue dust, residual mud of sulfuric acid factory, steelmaking dust, lead-zinc concentrate ore roasting flue dust, pyrite roasting residue [10-11] etc. But these methods have some defects: long flow process, low recovery of selenium, impurity of selenium powder, serious environmental pollution etc; finally, further purification such as vacuum-distillation and oxidization-reduction [12-14] have to conduct. On the other hand, mercury and gold production waste are generated in the hydrometallurgical process of selenium extraction [10]. The constituent elements, and their concentrations, depend on the characteristics of the raw materials that are processed, the species and their concentration, the reactor type used in the different stages of the process and the conditions under which these stages operate. All these factors affect the chemical and mineralogical characteristics of selenium residue, thus explaining their variability and, consequently, the processes chosen for their treatment, which is based on the recovery of valuable elements and the stabilization of undesirable elements present in the residue. In recent years, the development of recycling selenium technology which is based on hydrometallurgical separation such as extraction [15], ion exchange [16], and liquid membrane extraction [17] presents good prospect with dilute reagents, few unit operations and low energy costs. These processes convert the elements of less value (or whose extraction is not profitable) into a compact and inert residue for landfill. But at present, these methods have few industrial applications, deserving further research for promotion of selenium recovery extraction technology.

Selenium occurs in oxidation states of IV and VI under aqueous conditions. The behavior of selenium in solutions has a close connection with the selenium concentration/potential and pH value which can be represented in the equilibrium predominance diagrams expediently. φ-pH diagram [18] is the important basis for thermodynamics analysis of the process of leaching selenium residue. During selenium extraction from various materials, sulfuric acid solutions are commonly found in processes of reduction precipitation of selenium. The role of sulfate anions in the ionic composition of the solution is usually not considered in the previously reported predominance diagrams. There is, therefore, a need to develop, extend and update the data on new species which come to be recognized to be significant. But at present, very little work on the thermodynamical properties of the Se-H₂O system and SO₂-Se-H₂O system has been published.

According to the thermodynamical data, the behavior of both the Se-H₂O and SO₂-Se-H₂O system in the form of φ-pH diagram is presented by using average heat capacity computation method [19] and through MATLAB programming to provide some useful information for hydrometallurgical process development. On this basis, a new process for producing pure selenium directly from complicated selenium residue was presented and a series of leaching and reducing experiments were conducted.

2 Thermodynamical data and equilibrium equations

According to Eqs. (1)-(3) and aqueous ionic heat capacity parameter (α_(T) and β_(T)) [19-22], the thermo- dynamical data [23-26] of Se-H₂O system (298 K and 373 K) and SO₂-H₂O system (298 K) were determined. Values of the Gibbs energy of formation (), entropy (), and aqueous ionic heat capacity  of Se-H₂O system at 298 K and 373 K are presented in Table 1. Values of the Gibbs energy of formation () of SO₂-H₂O system at 298 K are given in Table 2.

                (1)

                (2)

                (3)

On base of the equilibrium principle in hydrometallurgy process, the reaction process can be presented as [18, 27]

aA+mH⁺+Ze=bB+cH₂O                        (4)

According to =-RTlnK=-ZφF [18, 27], just given the parameters  or K, the values of relevant potential φ could be calculated. The balance potential expression could be expressed by Eq. (5) or (6) according to Nernst isotherm equations (Z is aqueous ionic charge):

                       (5)

         (6)

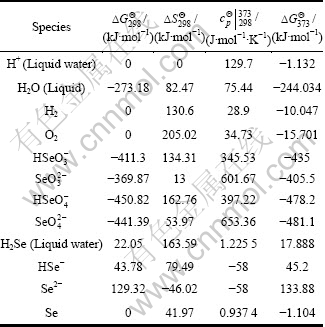

Table 1 Thermodynamical data of Se-H₂O system at 298 K and 373 K

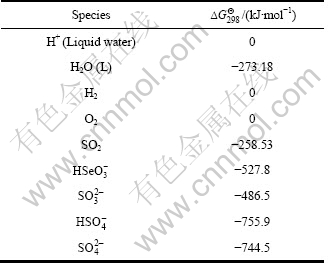

Table 2 Thermodynamical data of SO₂-H₂O system at 298 K

Table 3 lists the relationship between relevant potential φ and pH of Se-H₂O system at 298 K and   373 K. Simultaneously, the relationship between relevant potential φ and pH of SO₂-H₂O system at 298 K is presented in Table 4.

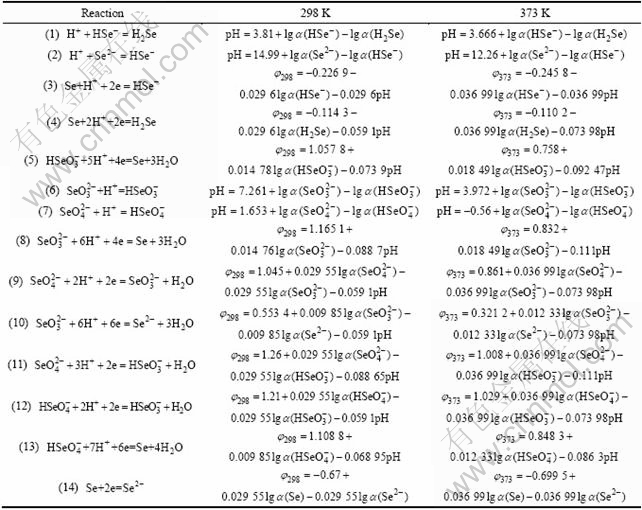

Table 3 Relationship between relevant potential φ and pH of Se-H₂O system at 298 K and 373 K

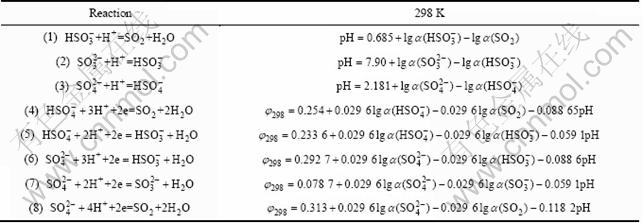

Table 4 Relationship between relevant potential φ and pH of SO₂-H₂O system at 298 K

3 Calculated results and discussion

In all diagrams, broken lines are served to describe boundaries at which the available selenium is equally distributed between the two ionic species which predominate in the contiguous areas.

According to thermodynamical data, the relationship between relevant potential φ and pH of Se-H₂O system under 298 K and 373 K in Table 3, the φ-pH diagram of Se-H₂O system with activity of 1 of the dissolved selenium species at 298 K and 373 K are shown in Fig. 1 and Fig. 2, respectively.

The diagram can be discussed sequentially in terms of the various selenium species, considering first the behavior of Se(VI), then Se (IV) and Se (0).

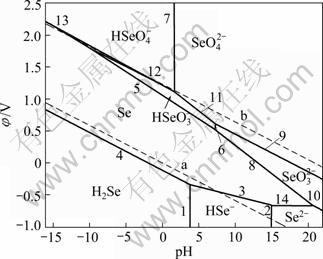

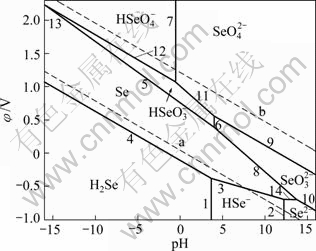

Fig. 1 φ-pH diagram of Se-H₂O system at 298 K (Activity of dissolved selenium of 1)

Fig. 2 φ-pH diagram of Se-H₂O system at 373 K (Activity of dissolved selenium of 1)

Figure 1 shows that at low pH, hexavalent selenium forms selenic ion . The isoelectric point is pH 1.65, at which the selenium is changed into complex selenic ion. Hexavalent selenium dissolves in acid to form selenic ion  in leaching solution at pH>1.65. For tetravalent selenium, at low pH, the selenic ion in the leaching solution is selenic ion , which will be oxidized at about pH 7.26, converting into selenic ion . Selenium dissolves in acid to form selenic ion  in leaching solution at pH<7.26. When raising the pH value, selenic ion  is formed, which is more stable than . Compared to Fig. 1, Fig. 2 shows that at 373 K the isoelectric point is changed to pH=-0.5. Selenic ion  dissolves in acid to form selenic ion  in leaching solution at pH>-0.5. For tetravalent selenium, selenium dissolves in acid to form selenic ion  in leaching solution at pH<3.97. When raising the pH value, selenic ion  is formed.

In order to further analyze the change of each area, Fig. 3 shows the composition of φ-pH diagram of Se-H₂O system at 298 K and 373 K for the purpose of comparison of the variation of these stable regions. It can be found that the speciation of selenium in solution is complex and highly dependent on various selenium species. In the aqueous solution at 298 K and 373 K

(pH≤2), the stable regions of  disappear. That is to say, Se is very hard to be oxidized to  (pH≤2), but it can be easily oxidized toand then  (-5

(1.65

, and  in the

φ-pH diagram of Se-H₂O system become gradually large, but the limits of pH in the stable region become gradually small. In general, the stable regions of these areas move towards pH value reducing direction with increasing temperature. In the process of oxidization leaching, Se is first oxidized to  by adding NaClO₃ (pH≤2). The oxidization reaction can be expressed by

=

         (7)

 in the oxidization leaching solution is then oxidized to  or  by adding excessive NaClO₃, so the oxidization reaction can be expressed by

=

        (8)

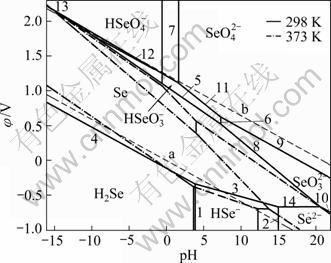

Fig. 3 Composition of φ-pH diagram of Se-H₂O system at  298 K and 373 K (Activity of dissolved selenium of 1)

Recovery of selenium from selenium residue in leaching process is dependent on the nature of selenium species that can exist in solution at different potential and pH conditions. Therefore, the φ-pH diagram of Se-H₂O system can be used to explain and predict the selenium precipitation.

According to the thermodynamical data present in Table 4, the φ-pH diagram of SO₂-H₂O at 298 K      is shown in Fig. 4. It can be seen that at low pH, hexavalent sulfur forms sulfuric ion . The isoelectric point is pH 2.18. Hexavalent sulfur dissolves in acid to form sulfuric ion in leaching solution at pH>2.18. For tetravalent sulfur, at low pH, the ion in the leaching solution is sulfuric ion , which will convert into sulfuric ion  at pH>7.90. SO₂ dissolves in acid solution to form sulfuric ion  in leaching solution at pH>0.68. When raising the pH value (pH>7.90), sulfuric ion  is formed.

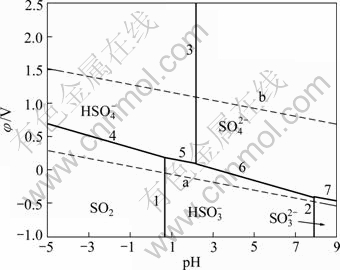

Fig. 4 Pourbaix diagram of SO₂-H₂O system at 298 K (Activity of dissolved sulfur of 1, p(SO₂)=10⁵Pa)

The pourbaix diagram of SO₂-Se-H₂O system at  298 K is represented in Fig. 5 for the purpose of the variation of selenium species in processes of reduction precipitation selenium (pH from -5 to 2). In the acid solution by adding Na₂SO₃ or NaHSO₃, the main reactions are expressed as Eqs. (9) and (10). In essence, the ultimate aim is to produce reducing agent, SO₂.

            (9)

          (10)

Sulfuric ion dissolves in acid leaching solution (-5

2 at pH<0.68. The reducing agent, SO₂, in acid solution   can firstly reduce selenic ion  (-5

 (1.65

 in acid leaching

solution, which will precipitate and convert into elementary substance Se when pH value is less than   or equal to 2. According to Fig. 3, Se in the leaching

solution is very hard to be oxidized to  (pH<2), but it can be easily oxidized to be  and then  (-5

 (1.65

 by adding NaClO₃. The process that reducing agent, SO₂, reduces  to Se in oxidization leaching solution (pH<2) is thermodynamically feasible. The reduction reaction is expressed by

             (11)

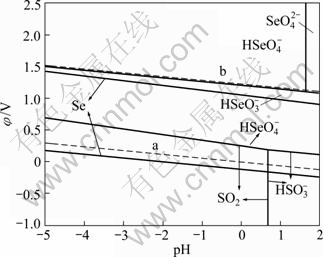

Fig. 5 Pourbaix diagram of SO₂-Se-H₂O system at 298 K

4 Experimental conformation to calculated results

In extra selenium residue of the analysis grade, the mass ratio of selenium residue to sodium chlorate is 2, and the concentration of sulfuric acid is 300 g/L. Then, the residue has been agitated for 3 h with leaching temperature of 80 °C. Finally, the selenium concentrations of the filtered solution and leaching slag have been analyzed. Elemental composition of leaching solution and leaching slag obtained under optimum conditions is given in Table 5.

Table 5 Elemental composition of leaching solution and leaching slag obtained under optimum conditions

In Table 5, it is indicated that after oxidization- leaching under this condition, the leaching rate of selenium could reach 97.76 %. The experimental adding of sodium chlorate to oxidize selenium is thermodynamically feasible. Selenium can be basically leached thoroughly, which explains that the following reaction takes place when the selenium is concentrated in the oxidization-leaching solution. The experimental results conform the calculated results by φ-pH diagram.

        (13)

Selenium reduction with adding sodium sulphite in oxidization-leaching solution is analyzed under the conditions of acidity of 150 g/L, the sodium sulphite concentration of 35 g/L at the reductive temperature of 23 °C for 120 min. The chemical composition of reduction solution and the grade of selenium powder is presented in Table 6 and Table 7. The XRD of selenium powder is shown in Fig. 6.

Table 6 Chemical composition of reduction solution (mass concentration, g/L)

Table 7 Grade of selenium powder (mass fraction, %)

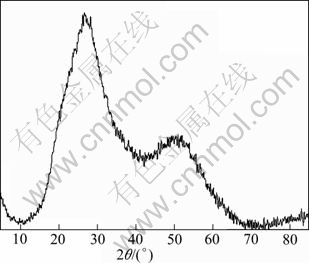

Fig. 6 XRD pattern of selenium powder

From Table 6 and Table 7, it is indicated that selenium is finally precipitated by adding sodium sulphite in the oxidation leaching solution. The rate of selenium reduction precipitation reaches 99.7%, and the grade of selenium powder reaches up 92.80%. The reducing agent, SO₂, reduces  to Se in leaching solution. The experiment results demonstrate the thermodynamic analysis which explains that the following reaction takes place:

             (14)

Finally, it can be seen from Fig. 6 that the diffraction intensity of selenium powder is not strong, which is mainly formed in amorphous state.

5 Conclusions

1) The φ-pH diagrams of Se-H₂O system at 298 K and 373 K show that in the aqueous solution (pH≤2), Se is very hard to be oxidized to be , but it can be easily oxidized to be  and then  (-5

 (1.65

,  and  become gradually large, but the limits of pH in the stable region become gradually small. Simultaneously, the φ-pH diagram of SO₂-Se-H₂O system at 298 K indicates that SO₂ can reduce  to Se in the process of selenium reduction precipitation (pH<2).

2) When the mass ratio of selenium residue to sodium chlorate is 2, the concentration of sulfuric acid is 300 g/L, and the residue is agitated for 3 h at leaching temperature of 80 °C, the leaching rate of selenium could reach 97.76 % in the process of oxidization leaching. This conforms the calculated results by φ-pH diagram. The selenium reduction precipitation in oxidization- leaching solution is analyzed under the conditions of acidity of 150 g/L, the sodium sulphite concentration of 35 g/L at the reductive temperature of 23 °C for 120 min. And this demonstrates the thermodynamic analysis.
